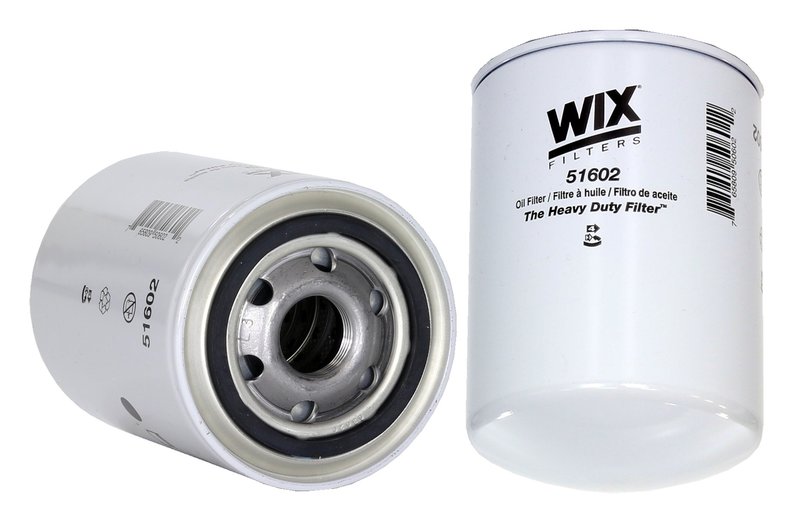

Wix 51602 Engine Oil Filter

Overview of Wix 51602 Engine Oil Filter for Chevrolet and GMC

The Wix 51602 engine oil filter is designed specifically for heavy-duty applications in Chevrolet P30 and GMC P3500 vehicles. This spin-on lube filter offers reliable filtration performance with enhanced cellulose media to protect your engine from contaminants.

• Compatible with Chevrolet P30 and GMC P3500 models
• Spin-on style engine oil filter with 1-16 thread size
• Enhanced cellulose media with 17-micron filtration rating
• Flow rate between 12-16 gallons per minute for efficient oil circulation
• Height of 5.214 inches and outer diameter of 3.663 inches
• No anti-drain back valve and no bypass relief valve setting
• Burst pressure rated at 375 psi for durability under pressure
• Beta ratio of 2/20=11/25 ensuring effective contaminant removal

Technical Details and Filtration Performance

The Wix 51602 oil filter features enhanced cellulose media that provides a 17-micron filtration rating, effectively capturing engine contaminants to maintain oil cleanliness. Its spin-on design with a 1-16 thread size allows for straightforward installation and removal. The filter supports a flow rate of 12 to 16 gallons per minute, ensuring adequate oil flow for heavy-duty engines like those in Chevrolet P30 and GMC P3500 vehicles. With a burst pressure rating of 375 psi, this filter withstands high-pressure conditions without failure. The absence of an anti-drain back valve and bypass relief valve indicates a design optimized for specific engine oil systems where these features are not required.

Applications and Problem Solving

• Protects engine components from wear caused by dirt and debris
• Maintains oil flow and pressure in heavy-duty Chevrolet and GMC engines
• Prevents premature engine wear due to contaminated oil
• Reduces risk of oil filter collapse under high pressure
• Ensures consistent filtration performance in demanding operating conditions

Installation Notes and Tips

When installing the Wix 51602 oil filter on Chevrolet P30 or GMC P3500 models, ensure the engine is cool to avoid burns. Apply a thin layer of clean engine oil to the gasket before threading the filter to improve sealing and ease removal. Tighten the filter according to manufacturer specifications, typically hand-tight plus a quarter turn. Check for leaks after installation and monitor oil pressure to confirm proper function.

Quality Assurance and Warranty

Wix oil filters are manufactured to meet industry standards for filtration efficiency and durability. The 51602 model is built to withstand heavy-duty engine conditions with a robust construction and reliable media. While specific warranty details may vary, Wix generally offers coverage against defects in materials and workmanship. Refer to Wix documentation for complete warranty terms.
