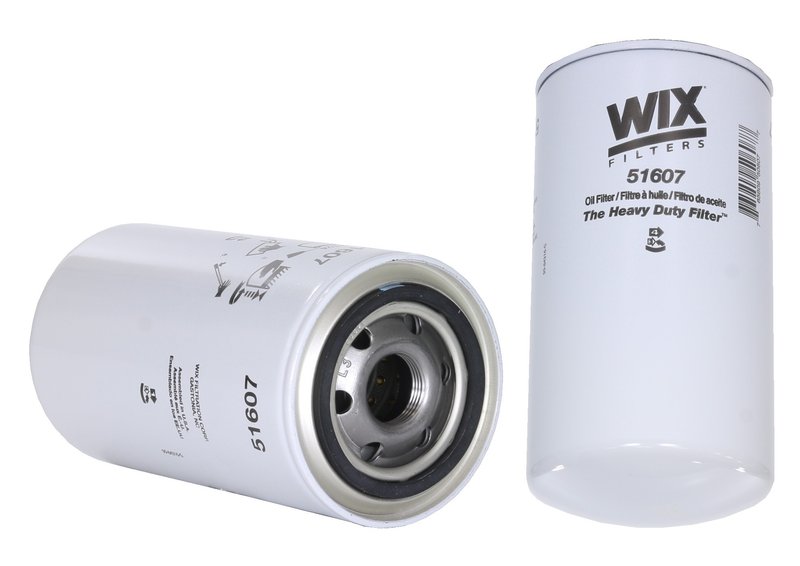

Wix 51607 Engine Oil Filter

Overview of Wix 51607 Engine Oil Filter for Dodge Ram

The Wix 51607 engine oil filter is designed specifically for heavy-duty Dodge and Ram trucks, including models like the Ram 2500, Ram 3500, D250, D350, W250, and W350. This spin-on lube filter provides reliable filtration performance to help maintain engine health under demanding conditions.

• Compatible with Dodge Ram 2500, Ram 3500, D250, D350, W250, and W350 models
• Spin-on style engine oil filter with 1-16 thread size
• Enhanced cellulose media with 20-micron filtration rating
• Flow rate between 12-16 gallons per minute for efficient oil circulation
• Burst pressure rated at 350 psi for durability
• No anti-drain back valve or bypass relief valve included
• Height of 6.945 inches and outer diameter of 3.681 inches

Technical Details and Filter Attributes

The Wix 51607 oil filter features enhanced cellulose media designed to capture contaminants down to 20 microns, helping to protect engine components from wear. Its beta ratio of 2/20=17/27 indicates effective particle retention performance. The filter is built for heavy-duty duty cycles (Hd class) and can handle flow rates between 12 and 16 gallons per minute, suitable for high-demand engine oil systems.

This filter does not include an anti-drain back valve, which means it is best suited for applications where this feature is not required. The filter’s burst pressure rating of 350 psi ensures it can withstand high pressure without failure. The spin-on design with a 1-16 thread size allows for straightforward installation and replacement.

Applications and Problem Solving

The Wix 51607 engine oil filter is used primarily in heavy-duty Dodge and Ram trucks, including the Ram 2500, Ram 3500, D250, D350, W250, and W350. It is designed to address several common engine oil filtration challenges:

• Prevents engine wear by filtering out harmful contaminants
• Maintains consistent oil flow under heavy-duty operating conditions
• Protects engine components from damage caused by dirt and debris
• Supports engine longevity in demanding truck applications
• Helps avoid oil system blockages and pressure drops

Installation Notes and Tips

When installing the Wix 51607 oil filter, ensure the engine is cool to avoid burns. Apply a thin layer of clean engine oil to the filter gasket before threading it onto the engine to ensure a proper seal. Tighten the filter according to manufacturer specifications, typically hand-tight plus a quarter turn. Check for leaks after installation and monitor oil pressure during initial engine operation.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration efficiency and durability. The 51607 model is constructed with quality materials to withstand heavy-duty use in Dodge and Ram trucks. While specific warranty details may vary, Wix generally offers coverage against defects in materials and workmanship. Refer to Wix documentation for complete warranty terms.
