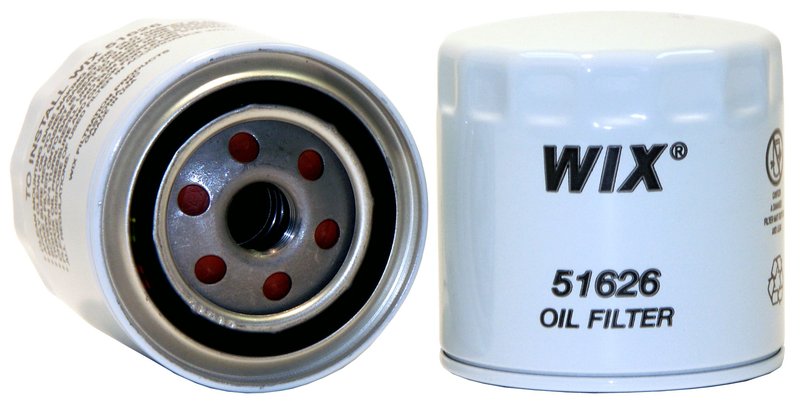

Wix 51626 Engine Oil Filter

Overview of Wix 51626 Engine Oil Filter

The Wix 51626 engine oil filter is designed for reliable oil filtration in select Dodge and Jeep vehicles. This spin-on lube filter features enhanced cellulose media and an anti-drain back valve to maintain oil flow and engine protection during operation.

• Anti-Drain Back Valve to prevent dry starts
• Enhanced cellulose media with 21 micron filtration
• Bypass relief valve setting between 8-11 psi
• Flow rate of 9-11 gallons per minute
• Spin-on style with 20x1.5 mm thread size
• Compatible with Dodge and Jeep models including Cherokee, Wrangler, and Ram 50

Technical Specifications and Features

The Wix 51626 oil filter is engineered with a burst pressure rating of 370 psi and a BetaRatio of 2/20=6/20, ensuring effective contaminant removal and durability under demanding conditions. Its enhanced cellulose media provides filtration at 21 microns, balancing particle capture with flow efficiency. The anti-drain back valve helps maintain oil in the filter during engine shutdown, reducing wear during startup. The bypass relief valve activates between 8 and 11 psi to maintain oil flow if the filter becomes clogged. This filter’s spin-on design and 20x1.5 mm thread size allow for straightforward installation on compatible Dodge and Jeep engines.

Compatible Vehicles and Applications

This Wix 51626 engine oil filter is compatible with a range of Dodge and Jeep vehicles, including the Cherokee, Comanche, Grand Wagoneer, J10, J20, Monaco, Ram 50, Wagoneer, and Wrangler models. It is designed to meet the oil filtration requirements of these vehicles, supporting engine longevity and performance.

Common Issues Addressed by Wix 51626 Oil Filter

• Prevents engine wear caused by contaminants in the oil
• Reduces risk of oil starvation during engine startup with anti-drain back valve
• Maintains consistent oil flow even under high pressure or clogging conditions
• Protects engine components by filtering particles down to 21 microns
• Helps avoid bypass valve failures that can lead to unfiltered oil circulation

Installation Notes and Tips

• Ensure the engine is cool before removing the old filter to avoid burns
• Apply a light coat of clean engine oil to the gasket before installation
• Hand-tighten the filter until the gasket contacts the mounting surface, then tighten an additional 3/4 turn
• Check for leaks after installation and during initial engine operation
• Use the Wix 51626 filter specifically for compatible Dodge and Jeep models listed

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration efficiency and durability. The 51626 model undergoes rigorous testing for burst pressure and flow rate to ensure reliable performance. While specific warranty details may vary, Wix typically offers coverage against defects in materials and workmanship. Refer to Wix documentation for complete warranty information.
