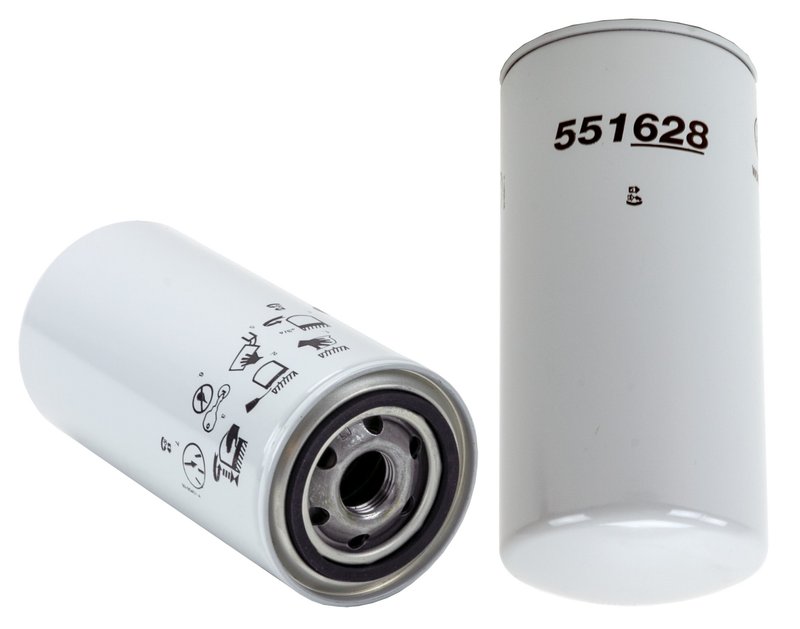

Wix 51628 Transmission Filter Kit

Reliable Transmission Filter Kit for Heavy-Duty Applications

The Wix 51628 Transmission Filter Kit is designed to provide consistent filtration performance for vehicles requiring a spin-on hydraulic filter. Engineered with enhanced cellulose media, this filter kit supports flow rates between 12 and 16 gallons per minute, making it suitable for various heavy-duty transmissions.

• Spin-on hydraulic filter style with 1-12 thread size
• Enhanced cellulose media with 10-micron filtration
• Height of 7.827 inches and outer diameter of 3.735 inches
• Beta ratio of 2/20=17/32 for efficient contaminant capture
• Burst pressure rating of 345 psi for durability under pressure
• No anti-drain back valve or bypass relief valve setting
• Class Hc and heavy-duty duty type for demanding transmission systems

Technical Details and Performance Attributes

The Wix 51628 transmission filter kit features a closed inner diameter top and a robust design tailored for heavy-duty duty cycles. The enhanced cellulose media provides a 10-micron filtration rating, effectively capturing contaminants to protect transmission components. With a burst pressure of 345 psi, this filter maintains integrity under high-pressure conditions common in commercial and industrial vehicle transmissions. The beta ratio of 2/20=17/32 indicates the filter's efficiency in removing particles, ensuring cleaner transmission fluid and extended component life.

Compatible Vehicles and Applications

This transmission filter kit is compatible with a range of heavy-duty vehicles requiring a spin-on hydraulic filter with a 1-12 thread size and specific dimensions. It is commonly used in commercial trucks, construction equipment, and agricultural machinery where reliable transmission filtration is critical. The Wix 51628 is suitable for applications demanding a flow rate between 12 and 16 gallons per minute and a filter height of approximately 7.8 inches.

• Prevents transmission fluid contamination and wear
• Reduces risk of transmission overheating due to clogged filters
• Helps maintain hydraulic system efficiency
• Protects against premature transmission component failure
• Supports consistent transmission performance under heavy loads

Installation Notes and Tips

When installing the Wix 51628 transmission filter kit, ensure the thread size matches the vehicle’s transmission filter housing (1-12 thread size). The spin-on design allows for straightforward replacement; however, verify that the filter height and diameter are compatible with the specific transmission model. Since this filter does not include an anti-drain back valve or bypass relief valve, confirm that the transmission system accommodates these features separately if required.

Quality Assurance and Warranty

Wix filters are manufactured to meet stringent quality standards, ensuring reliable filtration performance in demanding environments. While specific warranty details for part number 51628 are not provided here, Wix products typically come with manufacturer-backed quality assurance. For detailed warranty information, consult Wix’s official documentation or authorized distributors.
