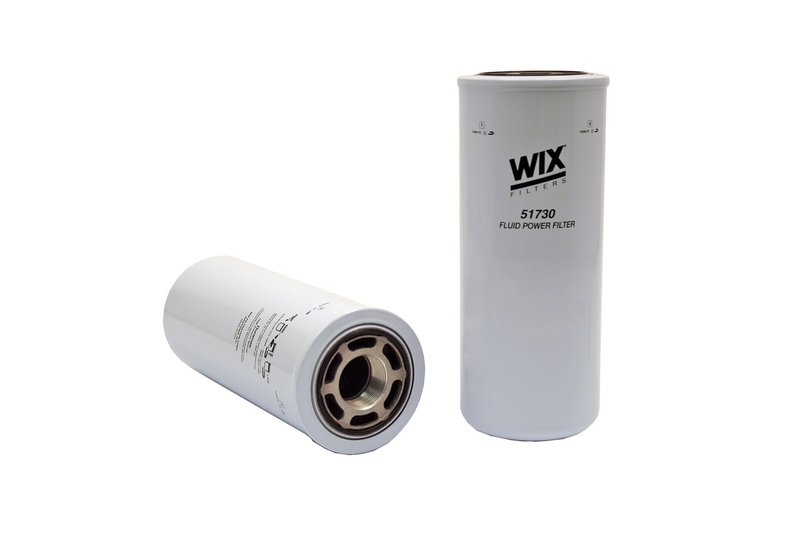

Wix 51730 Hydraulic Filter

Overview of Wix 51730 Hydraulic Filter

The Wix 51730 hydraulic filter is designed to provide reliable filtration for hydraulic systems requiring a flow rate between 28 and 30 gallons per minute. This spin-on hydraulic filter features a cellulose media material with a 10-micron rating, ensuring effective particle removal to protect your vehicle's hydraulic components.

• Spin-on hydraulic filter style for easy installation
• 10-micron cellulose media for efficient filtration
• Flow rate capacity of 28-30 gallons per minute
• Class Hb and heavy-duty duty type for demanding applications
• Burst pressure rating of 800 psi for durability
• Thread size 1 3/4-12 with closed inner diameter top
• Outer diameter top measures 4.77 inches, height 11.63 inches
• No anti-drain back valve or bypass relief valve setting

Detailed Product Description

The Wix 51730 hydraulic filter is engineered to meet the filtration needs of hydraulic systems in various heavy-duty vehicles, including select Ford, Chevrolet, and Dodge models. Its cellulose media material captures contaminants down to 10 microns, helping maintain hydraulic fluid cleanliness and system efficiency. The filter's beta ratio of 2/75=10/22 indicates its particle retention performance, while the 800 psi burst pressure rating ensures it withstands high-pressure conditions without failure. The spin-on design simplifies replacement, and the 1 3/4-12 thread size fits compatible hydraulic filter housings. This filter is classified as Hb and designed for heavy-duty duty types, making it suitable for demanding automotive hydraulic applications.

Common Applications and Problem Solving

• Protects hydraulic pumps and valves from contamination
• Prevents premature wear caused by dirt and debris in hydraulic fluid
• Maintains consistent hydraulic system pressure and performance
• Reduces risk of hydraulic system failure due to clogged filters
• Supports extended hydraulic component life in heavy-duty vehicles

Installation Notes and Tips

When installing the Wix 51730 hydraulic filter, ensure the hydraulic system is depressurized before removal of the old filter. The spin-on style allows for straightforward replacement; apply a light coat of clean hydraulic fluid to the gasket before threading the filter onto the housing. Tighten according to manufacturer specifications to avoid leaks. Since this filter does not include an anti-drain back valve or bypass relief valve, verify system compatibility and monitor fluid flow during initial operation after installation.

Quality Assurance and Warranty

Wix hydraulic filters are manufactured to meet industry standards for filtration efficiency and durability. The 51730 model undergoes rigorous testing to ensure burst pressure resistance and consistent flow rates. While specific warranty details are not provided here, Wix products typically come with manufacturer-backed quality assurance to support reliable performance in automotive hydraulic systems.
