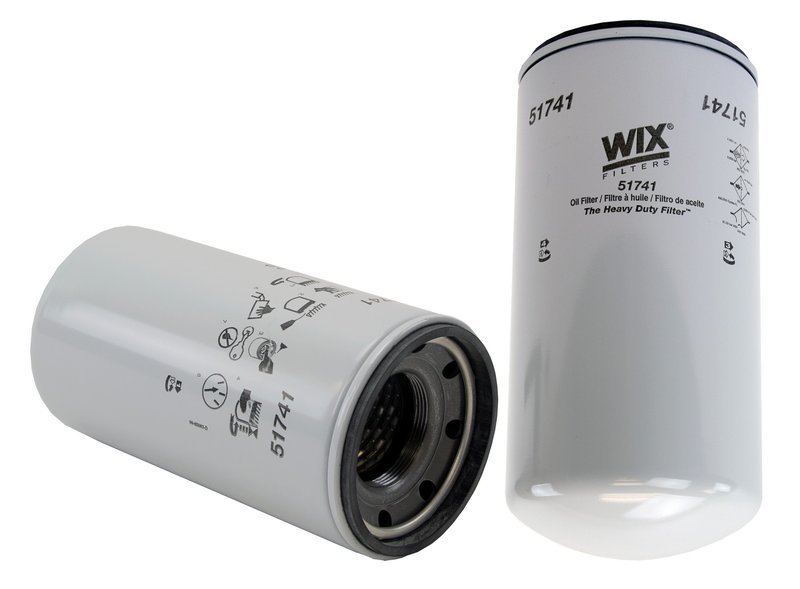

Wix 51741 Engine Oil Filter - Full-Flow/By-Pass

Overview of Wix 51741 Engine Oil Filter

The Wix 51741 engine oil filter is designed for reliable filtration in heavy-duty applications. Featuring enhanced cellulose media and a spin-on style, this filter supports efficient engine protection for various vehicle makes and models requiring a 2 1/4-12 thread size.

• Spin-on lube filter style for straightforward installation
• Enhanced cellulose media for effective contaminant capture
• Beta ratio of 2/20=10/24 indicating filtration efficiency
• Burst pressure rating of 370 psi for durability under stress
• Height of 9.340 inches and outer diameter of 4.668 inches
• Thread size 2 1/4-12 compatible with specific engine designs
• No anti-drain back valve or bypass relief valve setting

Technical Details and Specifications

The Wix 51741 oil filter utilizes enhanced cellulose media, which provides a balance between filtration efficiency and flow rate. With a micron rating of 32.00, it effectively traps engine contaminants to maintain oil cleanliness. The filter’s beta ratio of 2/20=10/24 reflects its ability to remove particles of a certain size, contributing to engine longevity. Its burst pressure of 370 psi ensures the filter withstands high-pressure conditions without failure. The spin-on design simplifies replacement, while the 2 1/4-12 thread size and 9.340-inch height make it compatible with engines requiring these dimensions. Notably, this filter does not include an anti-drain back valve or bypass relief valve, which should be considered when matching to vehicle requirements.

Compatible Vehicles and Applications

This Wix 51741 engine oil filter is suitable for use in various heavy-duty trucks and commercial vehicles that specify a 2 1/4-12 thread size and require a filter with these dimensions and filtration characteristics. It is commonly compatible with certain Ford, Chevrolet, and Dodge diesel engines, among others. Always verify fitment with your vehicle’s service manual or parts guide to ensure proper compatibility.

• Helps prevent engine wear by filtering out contaminants
• Reduces risk of oil starvation under high pressure
• Maintains oil flow and engine performance in heavy-duty conditions
• Protects against premature engine component failure
• Supports extended oil change intervals when used as specified

Installation Notes and Tips

When installing the Wix 51741 oil filter, ensure the engine is cool to avoid burns. Apply a thin layer of clean engine oil to the gasket before threading the filter onto the engine to ensure a proper seal. Tighten the filter according to manufacturer torque specifications, typically hand-tight plus a quarter turn. Since this filter lacks an anti-drain back valve, consider the oil system design to prevent dry starts. Dispose of the used filter according to local environmental regulations.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The 51741 model undergoes rigorous testing to ensure it meets specified burst pressure and filtration ratings. While specific warranty details are not provided here, Wix generally offers warranties covering defects in materials and workmanship. Consult Wix’s official documentation or your parts supplier for exact warranty terms related to this filter.
