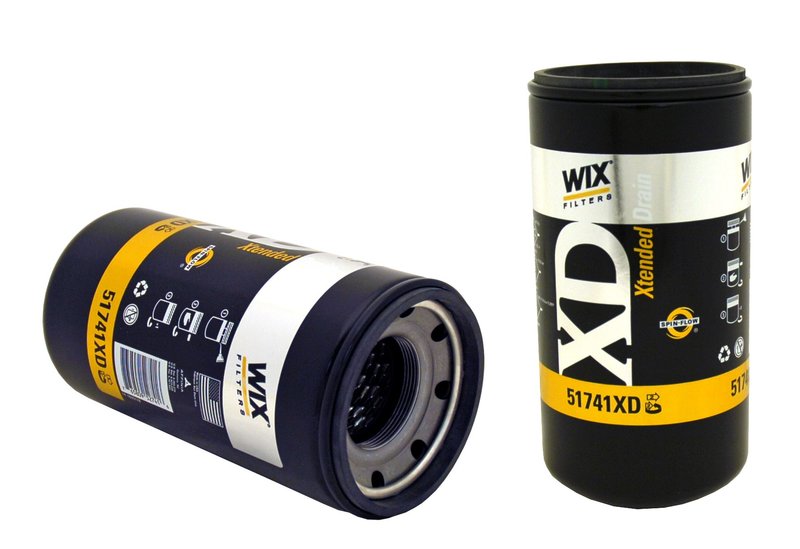

Wix 51741XD Engine Oil Filter - Full-Flow/By-Pass
| Brand | Wix 51741XD |
|---|---|
| Position | Full-Flow/By-Pass |
| Anti-Drain Back Valve | No |
| Burst Pressure | 370 |
| Bypass Relief Valve Setting | None |
| Class | Hd |
| Duty Type | Hd |
| Height | 9.340 |
| Inner Diameter Top | Closed |
| Media Material | Cellulose |
| Micron | 35.00 |
| Outer Diameter Top | 4.668 |
| Style | Spin-on lube filter |
| Thread Size | 2 1/4-12 |
| Fits | — |
Heavy-duty filtration. High-capacity cellulose media helps protect engines under demanding operating conditions.
Leak-resistant construction. Corrosion-resistant can, center tube, and end caps improve sealing and durability.
Spin-on design. A straightforward oil filter style for quick, familiar service.
Cross-references Baldwin 195328, CARQUEST Premium Filters 85741XD and Case 84301243 for the same application. See all 9.
WIX 51741XD HD Engine Oil Filter
The WIX 51741XD is a heavy-duty spin-on engine oil filter built for demanding service in medium and heavy trucks, farm equipment, construction equipment, mining equipment, and other industrial applications. It uses high-capacity cellulose media and corrosion-resistant construction to support clean oil flow and leak-resistant operation under tough operating conditions.
Key Features
- Heavy-duty spin-on lube filter for engine oil service
- Cellulose media with 35 micron filtration rating
- High burst pressure rating of 370
- No anti-drain back valve
- No bypass relief valve setting
- Corrosion-resistant can, center tube, and end caps
- Thread size: 2 1/4-12
- Height: 9.340 in; outer diameter: 4.668 in
Detailed Description
Built for HD service, the WIX 51741XD oil filter is engineered for engines that operate under sustained load and frequent service intervals. Its cellulose filter media is designed to capture contaminants while maintaining oil flow, and the robust metal construction supports sealing integrity in harsh environments. This part cross-references Fleetguard LF9548 and NAPA Gold Filters 1741XD for the same application. For buyers searching for a WIX 51741XD oil filter for Cummins engine oil filter service or a heavy-duty oil filter for Case and New Holland Construction equipment, this part matches the specifications commonly required in those applications.
What It Helps Address
- Engine wear caused by circulating oil contamination
- Reduced filtration performance in high-load diesel service
- Leak concerns from worn or low-strength filter housings
- Service intervals that require an OEM-style HD oil filter
- Oil flow restriction from an undersized or incorrect filter specification
Installation Notes and Tips
Verify thread size, height, outer diameter, and sealing surface dimensions before installation. Because this filter does not use an anti-drain back valve and has no bypass relief valve setting, confirm the engine’s oil system requirements before ordering. For fitment-based searches, this part is commonly referenced for Cummins, Case, and New Holland Construction applications; confirm the exact engine and filter specification against the vehicle or equipment service data. Search terms such as WIX 51741XD Cummins oil filter, Case heavy-duty oil filter, and New Holland Construction engine oil filter are often used when matching this part.
Quality Assurance
WIX positions this HD oil filter for OEM oil and filter change intervals and builds it with high-strength, corrosion-resistant components for long service life in demanding operating conditions.
