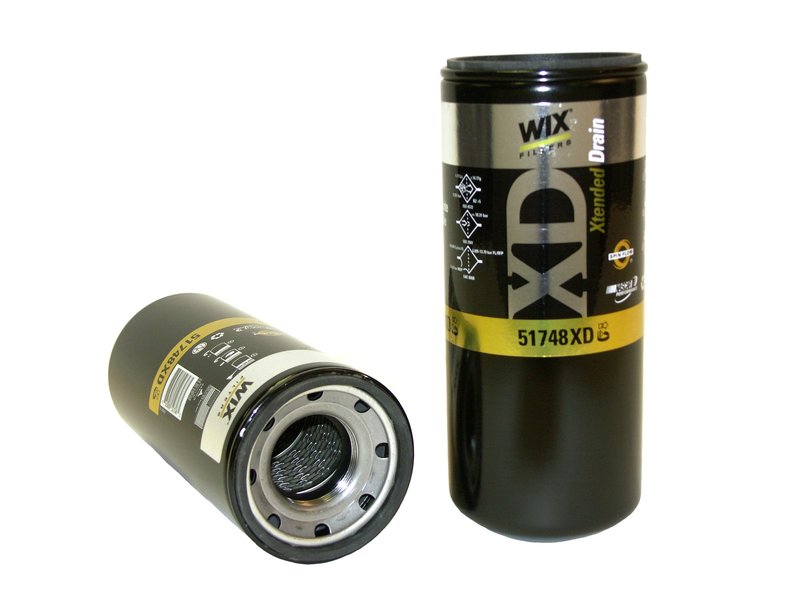

Wix 51748XD Engine Oil Filter - Bypass or Full-Flow/By-Pass

WIX 51748XD HD Oil Filter Overview

The WIX 51748XD is a heavy-duty spin-on engine oil filter built for demanding diesel and industrial service. It uses high-capacity microglass media, a 35-micron rating, and a corrosion-resistant housing to support clean oil flow in medium and heavy trucks, farm equipment, construction machines, mining equipment, and other hard-working applications.

Compatible With Cummins, John Deere, Volvo, and other OEM cross-reference applications, the 51748XD is built for long service intervals and consistent sealing under tough operating conditions.

Key Features

• High-capacity microglass media for extended dirt-holding performance
• 35.00 micron filtration rating
• 28 GPM flow rate for high-demand lubrication systems
• 500 burst pressure rating
• Spin-on lube filter style with 2 1/4-12 thread size
• Closed top inner diameter and no anti-drain back valve
• Corrosion-resistant can, center tube, and end caps
• WIX 51748XD cross-references select Fleetguard, Donaldson, Baldwin, and NAPA Gold part numbers

Detailed Description

WIX engineered the 51748XD for engines that operate under sustained load and frequent service intervals. The microglass filter media helps capture fine contaminants while maintaining strong flow characteristics, and the HD construction supports leak-resistant performance in severe-duty environments. This filter is commonly selected for equipment and vehicles in agriculture, construction, mining, and over-the-road trucking, including applications associated with Cummins, John Deere, Volvo, and New Holland Construction.

As a WIX HD oil filter, the 51748XD is built around durable sealing components and a robust metal canister to help maintain oil system integrity during long operating cycles. If you are sourcing a replacement for a heavy-duty diesel engine, WIX 51748XD offers a direct-fit style solution for many OEM oil and filter change intervals.

Common Issues This Filter Helps Address

• Excess engine wear from contaminated oil
• Reduced oil flow in high-demand diesel service
• Premature filter breakdown under heavy operating loads
• Leak concerns from weak sealing components
• Short service life in severe-duty equipment use

Installation Notes and Tips

Verify thread size, filter height, and sealing surface dimensions before installation. This is a spin-on oil filter with a 2 1/4-12 thread size and an 11.364-inch height, so confirm clearance in the engine bay or equipment housing. Pre-fill only if the engine manufacturer allows it, and always lubricate the gasket before tightening to the specified torque.

For fitment-based searches, this part is commonly referenced for heavy-duty diesel service and OEM replacement needs across Cummins, John Deere, and Volvo applications. Search terms such as “WIX 51748XD oil filter for Cummins diesel” and “heavy duty spin-on oil filter for John Deere equipment” are commonly used when sourcing this part.

Quality Assurance

WIX builds the 51748XD with high-strength, corrosion-resistant components and superior sealing materials to support reliable filtration in severe operating conditions. The filter is recommended for OEM oil and filter change intervals, and its HD construction is intended for long-lasting service in commercial and industrial equipment.
