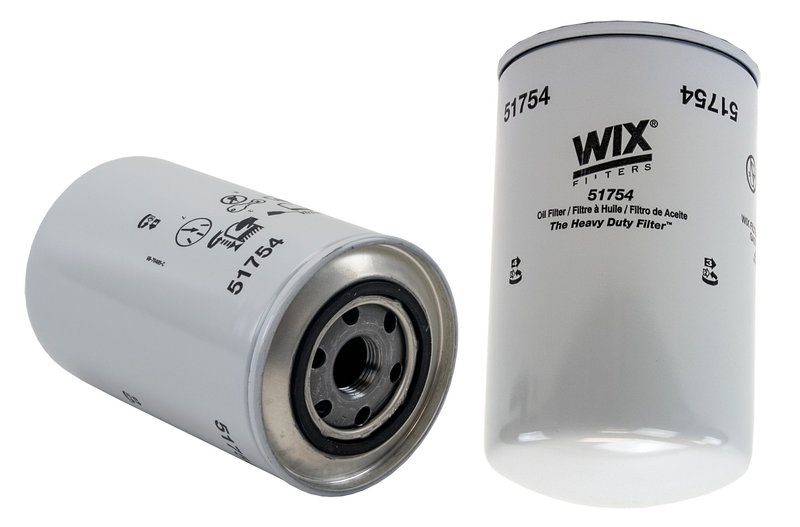

Wix 51754 Engine Oil Filter

Overview of Wix 51754 Engine Oil Filter

The Wix 51754 engine oil filter is designed for reliable filtration in heavy-duty applications. This spin-on lube filter features a cellulose media material and a 16-micron rating, providing effective contaminant removal for various vehicle makes and models.

• Spin-on lube filter style for easy installation
• Cellulose media with 16-micron filtration efficiency
• Burst pressure rating of 435 psi for durability
• Bypass relief valve setting between 18-22 psi
• Flow rate capacity of 12-16 gallons per minute
• Height of 7.332 inches and outer diameter of 4.282 inches
• Thread size 1-12 with closed inner diameter top
• Heavy-duty (Hd) duty type and Hb class rating
• No anti-drain back valve included

Technical Details and Specifications

The Wix 51754 oil filter is engineered to meet the demands of heavy-duty engines requiring consistent oil flow and filtration. Its cellulose media captures particles down to 16 microns, helping to protect engine components from wear. The filter’s bypass relief valve activates between 18 and 22 psi, ensuring oil circulation even under high contamination or cold start conditions. With a burst pressure of 435 psi, this filter maintains structural integrity under extreme pressure. The spin-on design simplifies replacement, while the 1-12 thread size and closed inner diameter top ensure compatibility with specific engine models.

Compatible Vehicles and Applications

This Wix 51754 engine oil filter is compatible with a range of heavy-duty trucks and commercial vehicles. It is commonly used in diesel engines requiring a robust filtration solution with a flow rate between 12 and 16 gallons per minute. For example, it fits certain Ford Super Duty, Chevrolet Silverado HD, and Ram 2500/3500 models. Always verify fitment with your vehicle’s specifications before purchase.

Common Issues Addressed by Wix 51754 Oil Filter

• Prevents engine wear caused by contaminants in the oil
• Maintains oil flow during cold starts with bypass valve functionality
• Protects against filter collapse under high pressure conditions
• Reduces risk of engine damage from clogged or inefficient filters
• Helps extend engine life by maintaining clean oil circulation

Installation Notes and Tips

When installing the Wix 51754 oil filter, ensure the engine is cool and the oil system is depressurized. Apply a thin layer of clean engine oil to the filter gasket before threading it onto the engine to ensure a proper seal. Tighten the filter according to manufacturer torque specifications, typically hand-tight plus a quarter turn. Dispose of the used filter according to local regulations.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The 51754 model undergoes rigorous testing to ensure performance under heavy-duty conditions. While specific warranty details are not provided here, Wix generally offers warranties covering defects in materials and workmanship. Consult Wix documentation or your supplier for exact warranty terms.
