Wix 51791 Engine Oil Filter - Full Flow
OE Quality 60-Day Returns
Wix

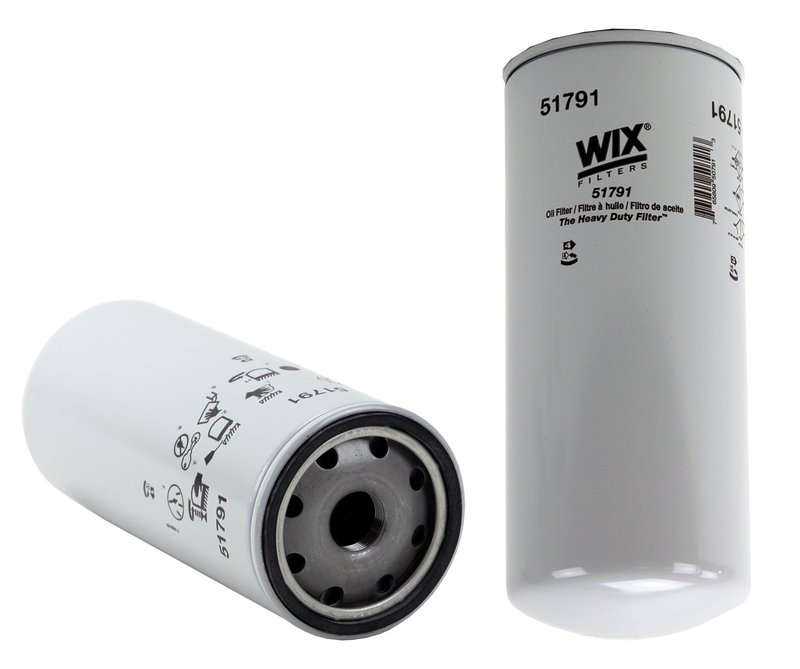

Wix 51791 Engine Oil Filter - Full Flow

Brand Wix 51791
Position Full Flow
Anti-Drain Back Valve No
BetaRatio 2/20=11/25
Burst Pressure 330
Bypass Relief Valve Setting None
Class Ha
Duty Type Hd
Flow Rate 18-20 gpm
Height 10.365
Inner Diameter Top Closed
Media Material Enhanced cellulose
Micron 20.00
Outer Diameter Top 4.282
Style Spin-on lube filter
Thread Size 1 1/8-16
Fits —

High-capacity media. Enhanced cellulose media helps deliver strong engine protection.

Spin-on lube filter. Simple service-friendly design for oil filtration.

Corrosion-resistant construction. Built with durable cans, center tubes, and end caps.

Cross-references ACDelco 06857, ACDelco PF 857 and ACDelco PF857F for the same application. See all 325.

$26.08Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $26.08
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Oil Filter options

WIX 51791 HD Oil Filter Overview

The WIX 51791 is a heavy-duty spin-on engine oil filter built for demanding diesel and industrial service. It uses enhanced cellulose media, a high-capacity design, and corrosion-resistant construction to support long service intervals in trucks, farm equipment, construction machines, mining equipment, and other hard-working applications.

Compatible With applications that call for a 1 1/8-16 thread, 10.365-inch height, and 4.282-inch outer diameter top, this filter is a direct service part for a wide range of heavy-duty engines. It is also a common replacement choice for equipment using WIX 51791, including Volvo and Caterpillar applications.

Key Features

  • Heavy-duty spin-on lube filter for engine oil service
  • Enhanced cellulose media for 20-micron filtration
  • High flow rate of 18-20 GPM for demanding operating conditions
  • Corrosion-resistant can, center tube, and end caps
  • Leak-resistant sealing components for long-lasting service
  • Burst pressure rated at 330
  • No anti-drain back valve and no bypass relief valve setting

Detailed Description

WIX HD oil filters are built for engines that work under load and at extended service intervals. The 51791 uses high-capacity media to capture contaminants while maintaining oil flow, making it a practical choice for medium- and heavy-duty trucks, agricultural equipment, construction machinery, and mining equipment. The spin-on design and closed top configuration support straightforward replacement in systems specified for this filter size and thread pattern.

This part cross-references Fleetguard LF667 and Donaldson P550369 for the same application. It is frequently searched as a WIX 51791 oil filter for Volvo and Caterpillar equipment, as well as other heavy-duty engine platforms that specify this size.

What It Helps Address

  • Engine wear caused by dirt, soot, and abrasive particles in oil
  • Reduced oil cleanliness during extended drain intervals
  • Pressure loss from restricted or overloaded filtration media
  • Leak concerns from aging or corroded filter housings
  • Service issues in trucks and equipment operating in severe duty cycles

Installation Notes and Tips

Verify thread size, gasket sealing surface, height, and outer diameter before installation. Confirm the engine calls for a spin-on lube filter with a 1 1/8-16 thread and no anti-drain back valve. For best results, replace the filter during routine oil service and follow the manufacturer’s recommended oil and filter change interval.

Search terms often used for this part include WIX 51791 oil filter, heavy-duty engine oil filter, and oil filter for Volvo and Caterpillar equipment. Always match the filter to the engine specification rather than vehicle appearance alone.

Quality Assurance

WIX positions this HD filter line for OEM oil and filter change intervals and builds it with high-strength, corrosion-resistant components for dependable service in severe-duty environments.

Related reading

This part fits 0 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
Directly replaces or cross-references 325 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — 06857ACDelco — PF 857ACDelco — PF857FACDelco — PF1080AGCO — 121853AGCO — 74036791AGCO — AG121853Air Refiner — PL667Allis Chalmers — 4036791Allis Chalmers — 40367914Allis Chalmers — 74036791American Parts — 92791Ametek — LK-97403Aquapower — 6028ASAS — SP 424ASAS — SP 824ASAS — SP 1424Baldwin — B76Baldwin — B76-BBaldwin — B7225Baldwin — B7600Baldwin — B7637Baldwin — B7700Baldwin — B9604Baldwin — BT340Baldwin — BT556Bomag — 332095608Bosch — 0 451 103 343Bosch — 0 451 104 010Bosch — 0 451 403 077Bosch — 0 986 AF0 018Bosch — 0451403007Bosch — P 3077Bosch — P3343Bosch — P 4010Busch — S 000-243-966CARQUEST Premium Filters — 85791CARQUEST Premium Filters — 94211CARQUEST Premium Filters — 94271CARQUEST Premium Filters — 96323CARQUEST Premium Filters — 96345CARQUEST Premium Filters — 96388CARQUEST Premium Filters — 96475Case — 60507493Caterpillar — 1R0658Caterpillar — 1R0739Caterpillar — 1W3300Caterpillar — 2P4004Caterpillar — 2Y8096Caterpillar — 3I1283Caterpillar — 3Y0900Caterpillar — 3Y900Caterpillar — 3Y900XCaterpillar — 8T1651Caterpillar — 8T1652Champion Automotive — HO507Claas — 00 0360 014 0Claas — 0360 014 0Claas — 360 014.0clean filters — DO 300Co-op — P481Coopers — AZL 083Coopers — LSF 5140Crosland — 2103Crosland — 9309Crosland — 9361Deluxe Walker — WD373Denyo — 0602041275Donaldson — ELF 7483Donaldson — LFP170004Donaldson — LFP554004Donaldson — P550369Donaldson — P550490Donaldson — P550519Donaldson — P553191Donaldson — P554004Facet — L68Febi-Bilstein — 27797Federated — LFP3191Filmar — SO8136Filmar — SO8334Filtron — OP 584Finn Filter — 1 OT 3800Finn Filter — FFUP 10410Fleetguard — LF667Fleetguard — LF667JFleetguard — LF733Fleetguard — LF3321Fleetguard — LF3476Fleetguard — LF3477Fleetguard — LF3675Fleetguard — LF3730Fleetguard — LF3973Fleetguard — LF16101Fleetguard — LF17505Fleetguard — LF17513Fleetguard — MPL859Fleetrite — FLRTLF667Fleetrite — LFR8667Fleetrite — LFR83321Foden — Y03601712Foden — Y03720110Foden — Y05008003Ford — 5011 417Ford — 5011 502Frad — 43.27.11/110Frad — 106.118.11/110Frad — 106.118.38/110Frad — 106.118.40/110FRAM — P3620FRAM — PH49FRAM — PH49AFRAM — PH49AFPFRAM — PH49AJSFRAM — PH5394FRAM — PH8842FRAM — PH8842FPFRAM — PH9376FRAM — PH9376FPFRAM — TPH8842FPFRAM — TPH9376FPGardner Denver — 2P4004Gardner Denver — H27096General Motors — 6439392General Motors — 6439393General Motors — 25012408Gonher — GP51Goodwill — OG 1033Hastings — BT340Hastings — FP531Hastings — HF912Hastings — LF327Hastings — LF531Hastings — LF554Hastings — P531Heavy Duty Air — HDA15003Hengst — H200WHengst — H200W01Hengst — H200W02Hengst — H200W10Hengst — H200W20Ingersoll Rand — 35310556Ingersoll Rand — 59698167Ingersoll Rand — 85401347Ingersoll Rand — 85401909Ingersoll Rand — 92658095Iveco — 4 253 7127Iveco — 4 254 6374Iveco — 500055336JC Bamford — 332Z0708JC Bamford — 1798593JC Bamford — SC1798593Jenbacher — 408 965John Bean - FMC — 3A11555John Deere — GG17031266Joy — 5276314Kalmar — 921691.0001Kohler — GM25504Kohler — GM25508Kolbenschmidt — 50 013 055Kolbenschmidt — 055-OSKralinator — L177Lenz — CP103230Linde — 3562227706Linde — 3562229026LUBER-FINER — LFP 2216LUBER-FINER — LFP 3191LUBER-FINER — LFP3191-1LUBER-FINER — LFP3191TRTLUBER-FINER — LFP3236LUBER-FINER — LFP3236-1LUBER-FINER — LFP3236TRTLUBER-FINER — LFP 8591M Filter — MH 3300M Filter — MH 3301M Filter — MH 3409MAN — 35A255013MAN — 86899006135Mann-Filter — W 11 102/4Mann-Filter — W 11 102/11Mann-Filter — W 11 102/14Mann-Filter — W 11 102/20Mann-Filter — W 11 102/27Mann-Filter — W 11 102/36Mann-Filter — W11025Mann-Filter — W12102Mann-Filter — W1110234Mann-Filter — W1110237Mann-Filter — WP1110237Meat & Doria — 15298Meat & Doria — 15372MEYLE — 814 013 0000Mileguard — PH9376Mopar — L301Motorcraft — EFL 170Motorcraft — FL 307Motorcraft — FL307FPMultipart — ABU 8784NAPA Gold Filters — 1791PAI — FOF4570PBR — BC-1083PBR — BC-1238PBR — BC-1344PBR Filters — BC1083Poclain — W 12505-99Pure Flo — PLF4004Purflux — LS260Purflux — LS778Purflux — LS841Purolator — L 50068Purolator — L59068Purolator — PER 67Purolator — PER 68Quaker State — QS49ARacor — PFL5513Racor — PFL5615Racor — PFL5622Racor — PFL5671Renault — 50 00 133 555Renault — 50 00 670 699Renault — 50 00 670 700Renault — 50 01 546 650Renault — 50 10 550 600Renault — 50 21 107 373Renault — 50 21 107 391Renault — 74 24 993 467Renault — 5000670701Renault — 5000682146Renault — 5001846641Renault — 5001846642Renault — 6005019774Renault — 7420709459Renault — 41035000133555Ryco — HDZ211Ryco — Z211Sakura — C-71060Sakura — C5501Sakura — C5510Sakura — C7105Sampiyon Filtre — CS1424Savara — 9.28.180.17Savara — SO 180Scania Vabis — 111 7285Scania Vabis — 134 7726Scania Vabis — 205 9778Scania Vabis — 2077885Sierra — 187880Sofima — S 0900 RSogefi Pro — FT4878Steiger Tractor — 28036Tamrock — 81621979TCM — 3918204Tecalemit — FB 5442Tecalemit — FB 5443Tecnocar — R90Teho — 4094Teho — OK 94Texaco — HDO1Trane — 2706066026TRP — 1500880TRP — 1500940TRP — 1501016TRP — 1534375TRP — 1534390TRP — 1534422TRP — 1536454UFI — 23.144.00Union — UC1102Universal Filter Italiana (UFI) — 2314400Vermeer — 102379001VME — 004666343Volvo — 466634Volvo — 466634-1Volvo — 466634-3Volvo — 478736Volvo — 3134053Volvo — 4787362Volvo — 17533661Volvo — 21170569Volvo — 21707134Volvo — 21707136Volvo — 85114049Volvo — MK14223Volvo — P21707136Volvo — V478736WGB — S279CPWhite — 303498433Wirtgen — 1880Wix Europe — 51791Wix Europe — 92018EWix Europe — WL7146Woodgate — WGL667Woodgate — WGL733Woodgate — WGL3321Woodgate — WGL3477Woodgate — WGL3675Woodgate — WGL4112Yanmar — 1650003451030 758 077485-GB-3191
