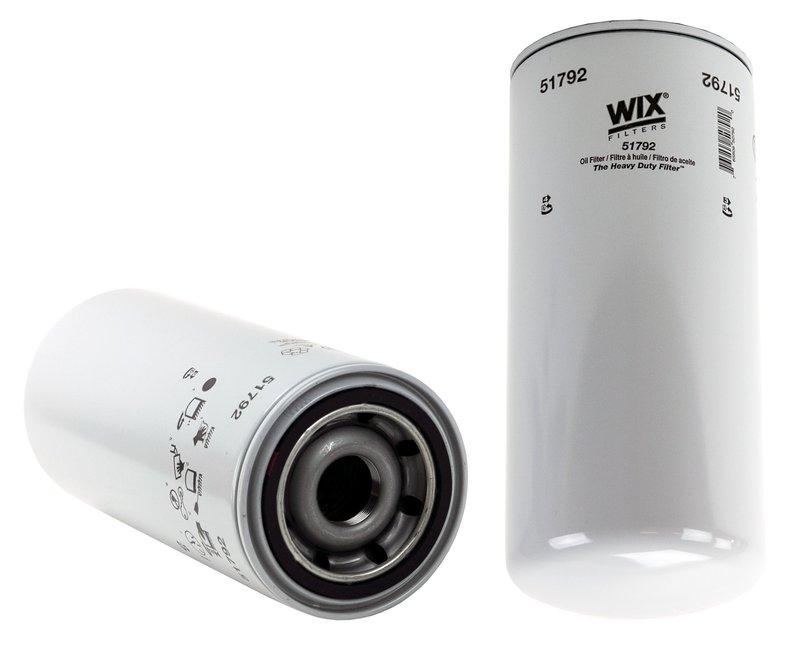

Wix 51792 Engine Oil Filter - Full Flow

Overview of Wix 51792 Engine Oil Filter

The Wix 51792 engine oil filter is designed for heavy-duty applications requiring reliable filtration performance. This spin-on lube filter features enhanced cellulose media to maintain engine cleanliness and protect critical components.

• Spin-on lube filter style with 1 1/2-16 thread size
• Enhanced cellulose media with 19 micron filtration rating
• Flow rate between 28-30 gallons per minute for efficient oil circulation
• Burst pressure rated at 300 psi for durability under high stress
• Height of 12.184 inches and outer diameter of 5.342 inches
• No anti-drain back valve or bypass relief valve setting
• Class Ha and heavy-duty duty type for demanding engine environments

Technical Details and Specifications

The Wix 51792 oil filter is engineered with a beta ratio of 2/20=8/21, indicating its filtration efficiency at capturing contaminants. The filter media is made from enhanced cellulose, providing a balance between filtration performance and flow rate. With a flow rate of 28 to 30 gallons per minute, this filter supports engines requiring high oil throughput. The filter’s burst pressure rating of 300 psi ensures it withstands pressure spikes without failure. Its spin-on design with a 1 1/2-16 thread size allows for straightforward installation and replacement. The filter’s height and outer diameter dimensions make it compatible with specific heavy-duty engine models.

Compatible Vehicles and Applications

This Wix 51792 engine oil filter is suitable for use in various heavy-duty trucks and commercial vehicles that require a Class Ha, heavy-duty oil filter with these specifications. It is compatible with engines that demand a 19 micron filtration rating and a high flow rate. For example, it is commonly used in certain Ford F-Series trucks and Chevrolet Silverado models that operate under heavy load conditions. Always verify fitment with your vehicle’s make and model to ensure compatibility with the Wix 51792 part number.

Common Issues Addressed by Wix 51792 Oil Filter

• Prevents engine wear caused by contaminants in the oil
• Maintains oil flow rate to avoid engine oil starvation
• Protects against filter collapse under high pressure conditions
• Reduces risk of engine damage due to clogged or inefficient filtration
• Supports engine longevity in heavy-duty and commercial vehicle applications

Installation Notes and Tips

When installing the Wix 51792 oil filter, ensure the engine is cool to avoid burns. Apply a thin layer of clean engine oil to the gasket before threading the filter onto the engine. Tighten the filter according to manufacturer torque specifications to prevent leaks. Since this filter does not include an anti-drain back valve, it is important to check oil levels after installation and initial engine start-up. Regular replacement intervals should be followed based on vehicle manufacturer recommendations and operating conditions.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The 51792 model undergoes rigorous testing to ensure burst pressure resistance and consistent flow rates. While specific warranty details are not provided here, Wix typically offers warranties covering defects in materials and workmanship. Consult Wix documentation or your vehicle’s service manual for detailed warranty and maintenance guidelines.
