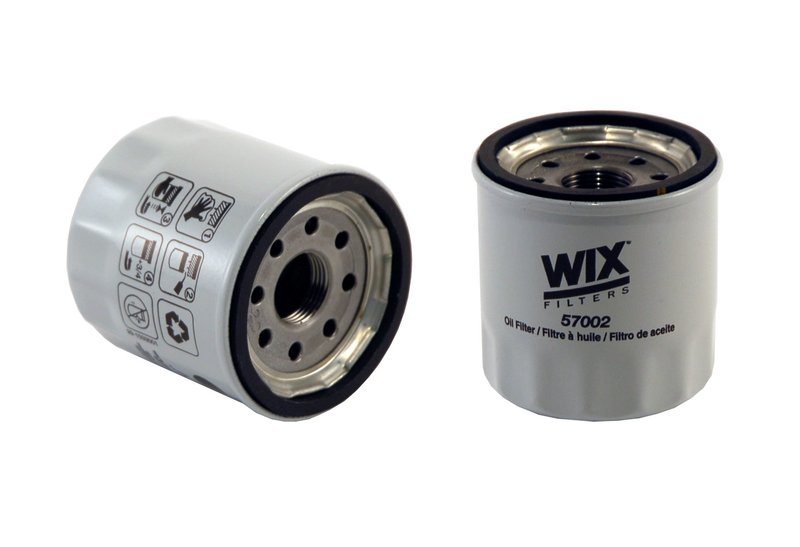

Wix 57002 Engine Oil Filter - Main

Overview of Wix 57002 Engine Oil Filter

The Wix 57002 engine oil filter is designed for reliable oil filtration in select Mazda, Scion, and Toyota vehicles. This spin-on lube filter features enhanced cellulose media to maintain engine cleanliness and performance.

• Bypass relief valve setting: 11-14 psi
• Filter class: A
• Duty type: Light duty (Ld)
• Height: 2.827 inches
• Thread size: 20x1.5 mm
• Micron rating: 15.00
• Media material: Enhanced cellulose
• Style: Spin-on lube filter
• Anti-drain back valve: No

Technical Details and Filter Attributes

The Wix 57002 oil filter uses enhanced cellulose media with a 15-micron rating to effectively capture contaminants while allowing proper oil flow. Its bypass relief valve is set between 11 and 14 psi to ensure oil circulation even under high pressure or cold start conditions. The filter’s spin-on design with a 20x1.5 mm thread size allows for straightforward installation and secure fitment. At 2.827 inches in height, this filter is compact yet engineered to meet the filtration needs of light-duty engines.

Compatible Vehicles and Applications

This engine oil filter is compatible with various Mazda, Scion, and Toyota models, including Mazda 2, 3, 3 Sport, 6, CX-3, CX-5, CX-9, CX-30, CX-50, CX-70, CX-90, iA, MX-5, MX-5 Miata, and Toyota Yaris, Yaris iA, Yaris R. The Wix 57002 is designed to meet the specific oil filtration requirements of these vehicles, ensuring proper engine protection and performance.

Common Issues Addressed by Wix 57002 Oil Filter

• Prevents engine wear caused by contaminants in the oil
• Maintains oil flow during cold starts with bypass valve relief
• Reduces risk of oil starvation in light-duty engines
• Helps extend engine life by maintaining clean oil
• Protects engine components from abrasive particles

Installation Notes and Tips

• Ensure the thread size (20x1.5 mm) matches the vehicle’s oil filter mount
• Lubricate the gasket with clean engine oil before installation
• Tighten the filter according to manufacturer torque specifications
• Check for leaks after installation and engine start-up
• Replace the oil filter during every oil change for optimal performance

Quality Assurance and Warranty

Wix oil filters are manufactured to meet industry standards for filtration efficiency and durability. The 57002 model undergoes rigorous quality control to ensure consistent performance. While specific warranty details may vary, Wix typically offers coverage against defects in materials and workmanship. Consult product documentation for exact warranty terms.
