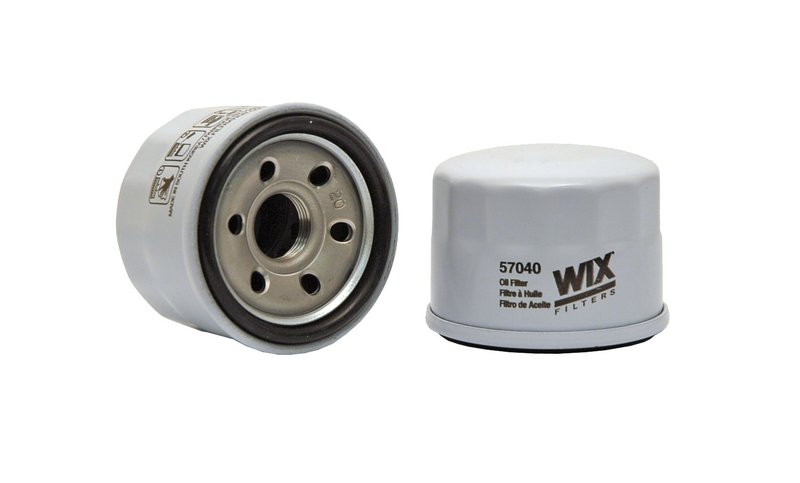

Wix 57040 Engine Oil Filter

Overview of Wix 57040 Engine Oil Filter for Smart Fortwo

The Wix 57040 engine oil filter is designed specifically for the Smart Fortwo, providing reliable filtration to maintain engine performance. This spin-on lube filter features essential components like an anti-drain back valve and a bypass relief valve set at 8 psi to ensure consistent oil flow and protection.

• Anti-drain back valve to prevent dry starts
• Bypass relief valve setting at 8 psi for regulated oil flow
• Class B filter with cellulose media material
• Flow rate between 8-10 gallons per minute
• Spin-on style with 20x1.5 mm thread size
• Compact dimensions: 2.075 inches height and 2.815 inches outer diameter

Technical Details and Filter Attributes

The Wix 57040 oil filter uses cellulose media, which provides effective filtration for light-duty applications, suitable for the Smart Fortwo's engine requirements. The anti-drain back valve helps maintain oil in the filter when the engine is off, reducing wear during startup. The bypass relief valve is calibrated at 8 psi, allowing oil to bypass the filter element if it becomes clogged, ensuring continuous oil flow to the engine. The filter’s flow rate ranges from 8 to 10 gallons per minute, supporting adequate lubrication under normal operating conditions. Its spin-on design with a 20x1.5 mm thread size allows for straightforward installation and removal.

Compatible Vehicles and Applications

This Wix 57040 engine oil filter is compatible with Smart Fortwo models, engineered to meet the specific filtration needs of this vehicle. Using the correct oil filter helps maintain engine cleanliness and performance by trapping contaminants and preventing premature engine wear.

• Protects against engine wear caused by dirt and debris
• Prevents oil starvation during cold starts with anti-drain back valve
• Maintains oil flow even if the filter media becomes clogged
• Supports engine longevity by ensuring clean oil circulation

Installation Notes and Tips

When installing the Wix 57040 oil filter on a Smart Fortwo, ensure the engine is cool and the vehicle is on a level surface. Apply a thin layer of clean engine oil to the rubber gasket before threading the filter to improve sealing and ease removal. Tighten the filter according to manufacturer specifications, typically hand-tight plus a quarter turn. Dispose of the used filter properly and check for leaks after installation.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The 57040 model undergoes rigorous testing to ensure consistent performance. While specific warranty details may vary, Wix generally offers coverage against defects in materials and workmanship. Refer to Wix documentation for exact warranty terms.
