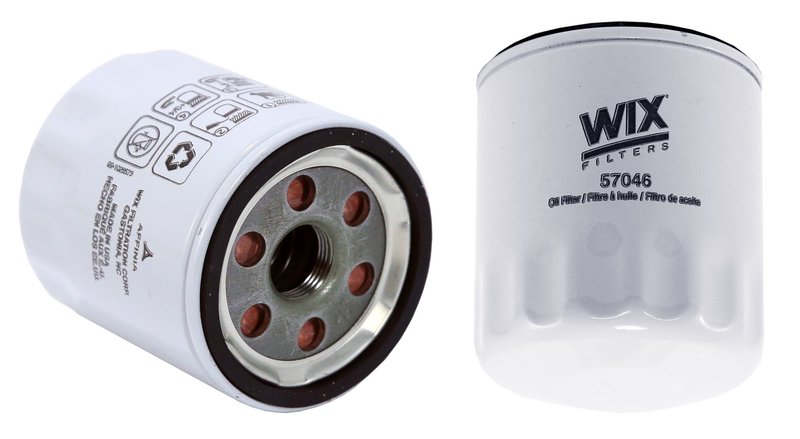

Wix 57046 Engine Oil Filter

Reliable Engine Oil Filtration for Suzuki Verona

The Wix 57046 engine oil filter is designed to provide effective oil filtration for Suzuki Verona models. Engineered with enhanced cellulose media and a spin-on lube filter style, this filter helps maintain engine performance by capturing contaminants and protecting vital engine components.

• Anti-Drain Back Valve to prevent dry starts
• Beta Ratio of 2/20=14/25 for efficient particle removal
• Burst Pressure rated at 330 psi for durability
• Bypass Relief Valve setting at 12 psi to ensure oil flow under high pressure
• Flow rate between 8-10 gallons per minute for optimal lubrication
• Spin-on style with 20x1.5 mm thread size for easy installation
• Height of 3.575 inches and outer diameter of 3.065 inches
• Media material made of enhanced cellulose for effective filtration

Technical Details and Performance

The Wix 57046 engine oil filter features a robust design tailored for the Suzuki Verona. Its enhanced cellulose media captures particles down to 30 microns, balancing filtration efficiency and flow rate. The anti-drain back valve prevents oil from draining out of the filter when the engine is off, reducing wear during startup. The bypass relief valve activates at 12 psi to maintain oil flow if the filter becomes clogged, protecting the engine from oil starvation. With a burst pressure rating of 330 psi, this filter withstands high-pressure conditions without failure.

Compatible Vehicles and Applications

This engine oil filter is compatible with Suzuki Verona models requiring a 20x1.5 mm thread size and spin-on filter style. The Wix 57046 is suitable for light-duty engine applications where reliable oil filtration is essential to maintain engine longevity and performance.

• Prevents engine wear caused by contaminants
• Reduces risk of oil starvation during cold starts
• Maintains consistent oil flow under varying pressure conditions
• Protects engine components from abrasive particles
• Helps extend engine oil life by efficient filtration

Installation Notes and Tips

When installing the Wix 57046 oil filter on a Suzuki Verona, ensure the engine is cool to avoid burns. Apply a thin layer of clean engine oil to the rubber gasket before threading the filter to ensure a proper seal. Tighten the filter according to manufacturer specifications, typically hand-tight plus a quarter turn. Check for leaks after installation and during initial engine operation.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The 57046 model undergoes rigorous testing to ensure consistent performance under normal operating conditions. While specific warranty details may vary, Wix generally offers coverage against defects in materials and workmanship. Refer to Wix documentation for complete warranty information.
