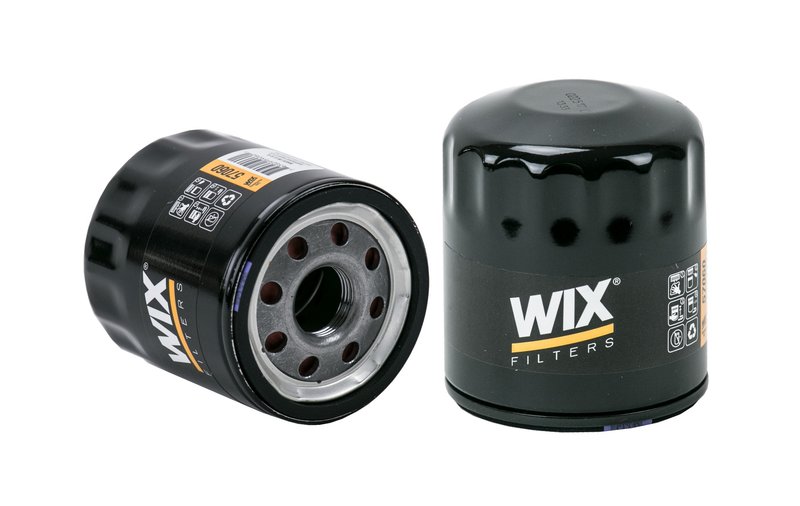

Wix 57060 Engine Oil Filter - Main

Overview of Wix 57060 Engine Oil Filter

The Wix 57060 engine oil filter is designed to provide reliable filtration for a wide range of vehicles including Buick, Chevrolet, Dodge, Jeep, and GMC models. This spin-on lube filter features enhanced cellulose media and an anti-drain back valve to maintain oil flow and engine protection during operation.

• Anti-Drain Back Valve to prevent dry starts
• Enhanced cellulose media for effective contaminant capture
• Spin-on style with 22x1.5 mm thread size
• Beta Ratio of 2/20=6/20 for efficient filtration
• Bypass relief valve set at 12 psi for consistent oil flow
• Flow rate between 10-12 gallons per minute
• Height of 3.45 inches and outer diameter of 2.921 inches
• Burst pressure rated at 350 psi

Technical Details and Specifications

The Wix 57060 oil filter is engineered with a 21-micron rating to effectively trap contaminants while maintaining optimal oil flow. Its enhanced cellulose media balances filtration efficiency and durability, suitable for light-duty applications. The built-in anti-drain back valve ensures oil remains in the filter during engine shutdown, reducing wear from dry starts. The bypass relief valve activates at 12 psi to maintain oil circulation even if the filter becomes clogged. With a burst pressure of 350 psi, this filter withstands high-pressure conditions common in modern engines.

Compatible Vehicles and Applications

This engine oil filter is compatible with numerous makes and models, including Buick LaCrosse, Chevrolet Silverado 1500, Dodge Ram 1500, Jeep Grand Cherokee, and GMC Sierra 2500 HD. It fits various models such as the Cadillac CTS, Chrysler 300, Fiat 500X, Hummer H3, and Volkswagen Routan. The Wix 57060 is suitable for vehicles requiring a 22x1.5 mm thread size and spin-on style oil filter.

Common Issues Addressed by Wix 57060 Oil Filter

• Prevents engine wear caused by contaminants in the oil
• Reduces risk of oil starvation during engine startup with anti-drain back valve
• Maintains consistent oil flow under varying pressure conditions
• Protects engine components from damage due to clogged filters
• Helps extend engine life by ensuring clean oil circulation

Installation Notes and Tips

• Ensure the correct thread size (22x1.5 mm) matches your vehicle’s specifications
• Lubricate the gasket with clean engine oil before installation to ensure a proper seal
• Hand-tighten the filter and then follow manufacturer torque specifications
• Check for leaks after installation and during initial engine operation
• Replace the oil filter during every oil change for optimal performance

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The 57060 model is classified as Class A and designed for light-duty use, ensuring reliable performance in compatible vehicles. While specific warranty details vary, Wix typically offers coverage against defects in materials and workmanship. Always refer to Wix’s official warranty documentation for complete terms.
