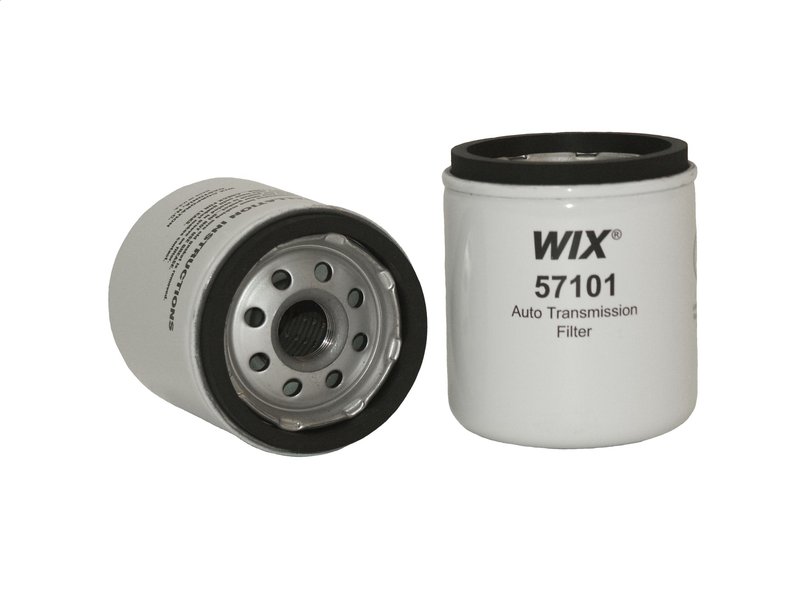

Wix 57101 Transmission Filter Kit

Overview of Wix 57101 Transmission Filter Kit

The Wix 57101 transmission filter kit is designed specifically for Saturn vehicles, including SC, SC1, SC2, SL, SL1, SL2, SW1, and SW2 models. This spin-on transmission filter provides reliable filtration to maintain transmission fluid cleanliness and protect your vehicle's transmission system.

• Spin-on transmission filter style for easy installation
• Cellulose media material with 15-micron filtration rating
• Height of 3.610 inches and outer diameter of 2.970 inches
• Thread size 3/4-20 for secure fitment
• No anti-drain back valve or bypass relief valve setting
• Beta ratio of 2/20=15/31 for efficient particle retention
• Burst pressure rating of 780 psi

Technical Details and Specifications

The Wix 57101 transmission filter kit features a cellulose media material that filters particles down to 15 microns, helping to maintain clean transmission fluid and reduce wear on transmission components. The filter’s spin-on style allows for straightforward replacement, with a height of 3.610 inches and an outer diameter of 2.970 inches ensuring proper fitment in compatible Saturn models. The thread size of 3/4-20 secures the filter in place without the need for additional adapters. This filter does not include an anti-drain back valve or bypass relief valve, which is consistent with the original equipment design for the specified Saturn transmissions. The beta ratio of 2/20=15/31 indicates effective filtration performance, while the burst pressure rating of 780 psi ensures durability under normal operating conditions.

Compatible Saturn Models and Applications

This transmission filter kit is compatible with a range of Saturn vehicles, including the SC, SC1, SC2, SL, SL1, SL2, SW1, and SW2 models. It is designed to meet the specific transmission filtration requirements of these vehicles, making it a suitable replacement part for routine maintenance or transmission service.

Common Transmission Issues Addressed

• Prevents transmission fluid contamination by filtering out debris and particles
• Helps reduce transmission wear caused by dirt and metal shavings
• Maintains proper fluid flow to avoid transmission overheating
• Supports smooth shifting by keeping transmission fluid clean
• Reduces risk of transmission failure due to clogged filters

Installation Notes and Tips

• Ensure the vehicle is safely lifted and supported before beginning installation
• Drain transmission fluid prior to removing the old filter
• Remove the old filter by unscrewing the spin-on unit carefully
• Clean the filter mounting surface before installing the new Wix 57101 filter
• Apply a light coat of clean transmission fluid to the new filter gasket
• Screw on the new filter by hand until gasket contact, then tighten according to manufacturer specifications
• Refill transmission fluid to the proper level and check for leaks after installation

Quality Assurance and Warranty

Wix transmission filters are manufactured to meet industry standards for filtration and durability. The Wix 57101 filter kit undergoes rigorous quality control to ensure consistent performance. While specific warranty details may vary, Wix typically offers a limited warranty against defects in materials and workmanship. Consult Wix documentation or your parts provider for exact warranty terms related to this transmission filter kit.
