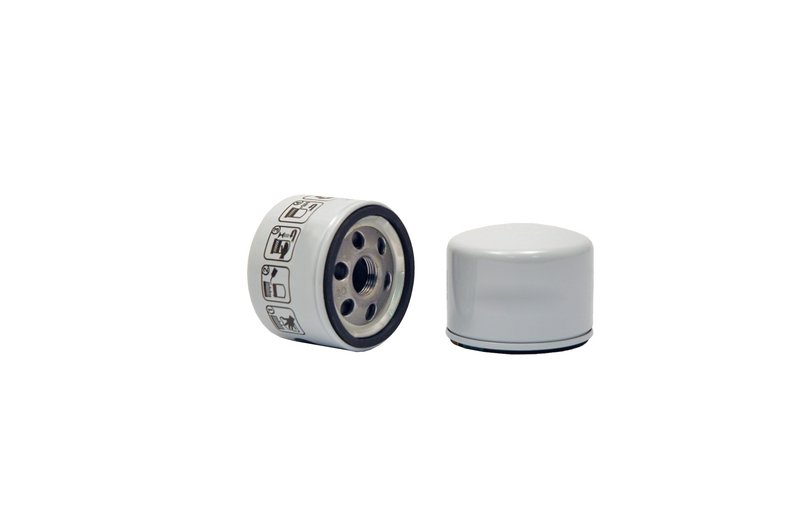

Wix 57207 Engine Oil Filter

Overview of Wix 57207 Engine Oil Filter for Nissan and Smart Vehicles

The Wix 57207 engine oil filter is designed specifically for select Nissan and Smart models, including the Nissan Platina and Smart Fortwo. This spin-on lube filter offers reliable filtration performance to help maintain engine health and efficiency.

• Anti-drain back valve to prevent dry starts
• Bypass relief valve set at 8 psi for optimal oil flow
• Class Hb and heavy-duty (Hd) duty type for demanding conditions
• Flow rate between 8-10 gallons per minute
• Cellulose media material with 25 micron filtration rating
• Compact dimensions: 2.264 inches height, 3.071 inches outer diameter
• Thread size 20x1.5 mm for secure fitment
• Spin-on style for straightforward installation

Technical Details and Filter Attributes

The Wix 57207 oil filter features a cellulose media material capable of filtering particles down to 25 microns, providing effective protection against contaminants that can cause engine wear. The anti-drain back valve helps maintain oil in the filter during engine shutdown, reducing dry starts and ensuring immediate oil flow on startup. The bypass relief valve is calibrated at 8 psi, allowing oil to bypass the filter element if it becomes clogged, preventing oil starvation. This filter is classified as Hb and designed for heavy-duty applications, supporting flow rates between 8 and 10 gallons per minute. Its compact size and spin-on design make it compatible with the Nissan Platina and Smart Fortwo models, ensuring a proper fit and reliable sealing with the 20x1.5 mm thread size.

Compatible Vehicles and Applications

This Wix 57207 engine oil filter is compatible with the following vehicles:

• Nissan Platina
• Smart Fortwo

It is engineered to meet the specific filtration requirements of these models, helping to maintain engine performance and longevity by effectively removing contaminants from the engine oil.

Common Issues Addressed by Wix 57207 Oil Filter

• Prevents engine wear caused by dirt and debris in oil
• Reduces risk of oil starvation during cold starts with anti-drain back valve
• Maintains consistent oil flow even if filter media becomes clogged
• Protects engine components from premature failure
• Helps maintain oil cleanliness for improved engine efficiency

Installation Notes and Tips

• Ensure the engine is cool before removing the old filter
• Apply a thin layer of clean engine oil to the gasket of the new filter for proper sealing
• Hand-tighten the Wix 57207 filter until the gasket contacts the mounting surface, then tighten an additional 3/4 turn
• Check for leaks after installation and during initial engine operation
• Dispose of the used oil filter according to local regulations

Quality Assurance and Warranty Information

Wix filters are manufactured to meet industry standards for filtration efficiency and durability. The 57207 model undergoes rigorous testing to ensure consistent performance under heavy-duty conditions. While specific warranty terms may vary, Wix typically offers coverage against defects in materials and workmanship. For detailed warranty information, consult Wix documentation or authorized service providers.
