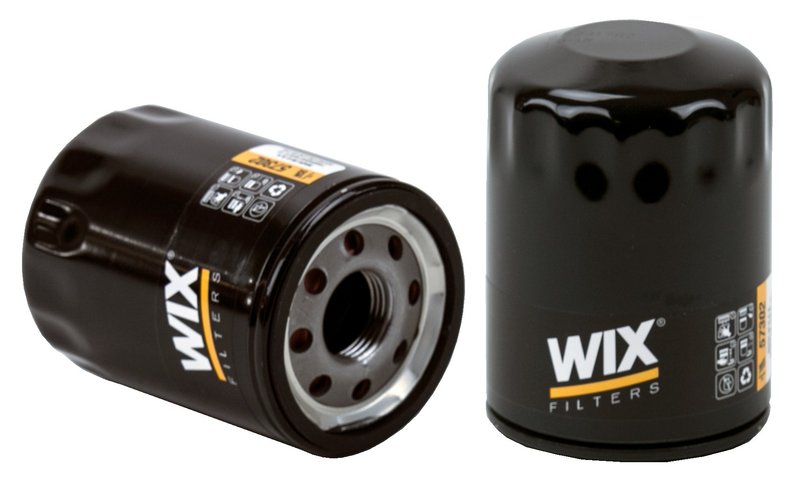

Wix 57302 Engine Oil Filter

Overview of Wix 57302 Engine Oil Filter

The Wix 57302 engine oil filter is designed for reliable oil filtration in select Ford, Jaguar, Land Rover, and Lincoln vehicles. This spin-on lube filter supports engine longevity by maintaining clean oil flow and protecting critical engine components.

• Anti-Drain Back Valve to prevent dry starts
• Enhanced cellulose media for effective filtration
• BetaRatio of 2/20=6/20 for particle retention
• Burst pressure rating of 375 psi
• Bypass relief valve setting at 16 psi
• Flow rate between 12-15 gallons per minute
• Spin-on style with 1-12 thread size
• Height of 4.225 inches and outer diameter of 2.923 inches

Technical Details and Specifications

The Wix 57302 oil filter features an enhanced cellulose media material that efficiently captures contaminants down to 21 microns, helping to maintain engine oil cleanliness. Its anti-drain back valve prevents oil from draining out of the filter when the engine is off, reducing wear during startup. The filter’s bypass relief valve is set at 16 psi, allowing oil to bypass the filter element if it becomes clogged, ensuring continuous oil flow to the engine. With a burst pressure of 375 psi, this filter is built to withstand high-pressure conditions. The spin-on design with a 1-12 thread size simplifies installation and replacement.

Compatible Vehicles and Applications

This Wix 57302 engine oil filter is compatible with a range of Ford, Jaguar, Land Rover, and Lincoln models, including the Land Rover LR3, Range Rover, Range Rover Sport, Jaguar XF, XJ8, XJR, XK, XK8, XKR, Lincoln LS, Thunderbird, Super V8, Vanden Plas, and Jaguar S-Type. It is engineered to meet the specific filtration requirements of these vehicles, ensuring proper fit and function.

Common Issues Addressed by Wix 57302 Oil Filter

• Prevents engine wear caused by contaminated oil
• Reduces risk of oil starvation during cold starts with anti-drain back valve
• Maintains consistent oil flow under varying pressure conditions
• Protects engine components from abrasive particles larger than 21 microns
• Prevents filter collapse or rupture under high pressure

Installation Notes and Tips

• Ensure the engine is cool before removing the old filter
• Apply a light coat of clean engine oil to the gasket before installation
• Hand-tighten the filter until the gasket contacts the mounting surface, then tighten an additional 3/4 turn
• Check for leaks after installation and during initial engine operation
• Replace the oil filter at recommended service intervals for your vehicle

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for durability and filtration efficiency. The 57302 model undergoes rigorous testing including burst pressure and flow rate verification to ensure reliable performance. While specific warranty details vary, Wix typically offers coverage against defects in materials and workmanship. Consult product documentation or manufacturer resources for exact warranty terms.
