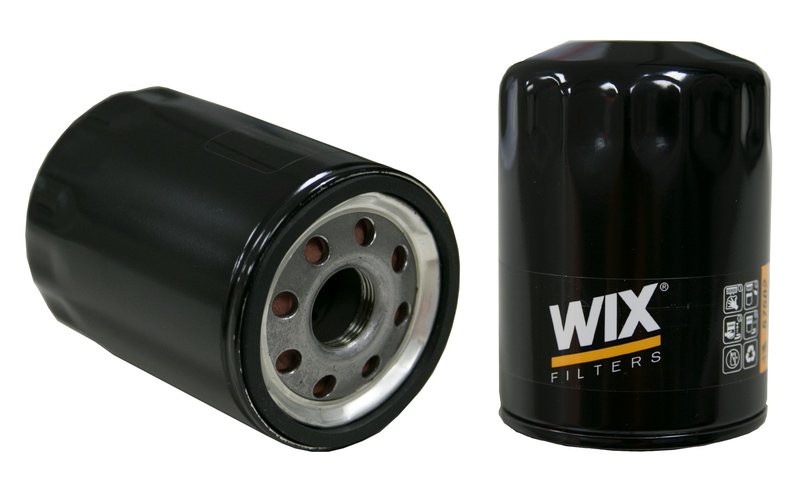

Wix 57502 Engine Oil Filter

Overview of Wix 57502 Engine Oil Filter

The Wix 57502 engine oil filter is designed for reliable oil filtration in select Ford, Lincoln, Mazda, and Mercury vehicles. This spin-on lube filter features enhanced cellulose media and an anti-drain back valve to maintain oil flow and engine protection during operation.

• Anti-drain back valve to prevent dry starts
• Enhanced cellulose media for effective contaminant capture
• Bypass relief valve set at 22 psi for consistent oil flow
• Spin-on style with 22x1.5 mm thread size for secure fitment
• Compatible with multiple Ford, Lincoln, Mazda, and Mercury models
• Flow rate between 10-12 gallons per minute
• Micron rating of 21 for balanced filtration efficiency

Technical Details and Specifications

The Wix 57502 oil filter is engineered with a BetaRatio of 2/20=6/20, indicating its filtration efficiency at different particle sizes. Its enhanced cellulose media provides a balance between dirt-holding capacity and flow rate, supporting engine longevity. The filter’s bypass relief valve is calibrated at 22 psi to ensure oil continues circulating even if the filter becomes clogged. The anti-drain back valve helps maintain oil in the filter during engine shutdown, reducing wear during startup. With a height of 4.09 inches and an outer diameter of 2.942 inches, this spin-on filter fits securely on compatible engines using a 22x1.5 mm thread size.

Compatible Vehicles and Applications

This Wix 57502 engine oil filter is compatible with a range of Ford, Lincoln, Mazda, and Mercury vehicles, including popular models such as the Ford F-150, Explorer, Edge, and Transit series, Lincoln Navigator and MKX, Mazda Tribute and Mariner, as well as Mercury Milan and Sable. It is designed to meet the oil filtration requirements for these vehicles, ensuring proper engine protection and performance.

Common Issues Addressed by Wix 57502 Oil Filter

• Prevents engine wear caused by contaminants in the oil
• Reduces risk of oil starvation during cold starts with anti-drain back valve
• Maintains consistent oil flow even under high pressure with bypass valve
• Helps avoid engine damage from clogged or inefficient filters
• Supports engine longevity by filtering particles down to 21 microns

Installation Notes and Tips

When installing the Wix 57502 oil filter, ensure the engine is cool and the old filter is fully drained before removal. Apply a thin layer of clean engine oil to the new filter’s gasket to ensure a proper seal. Tighten the filter according to manufacturer specifications, typically hand-tight plus a quarter turn. Verify the thread size of 22x1.5 mm matches the vehicle’s filter mount. After installation, check for leaks and monitor oil pressure during initial engine operation.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The 57502 model undergoes rigorous testing to ensure consistent performance in compatible Ford, Lincoln, Mazda, and Mercury vehicles. While specific warranty details may vary, Wix generally offers coverage against defects in materials and workmanship. Refer to Wix’s official documentation for complete warranty information.
