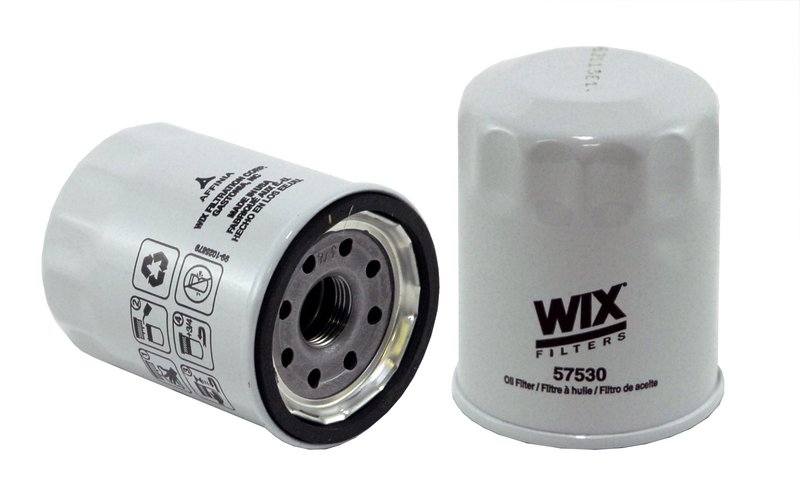

Wix 57530 Engine Oil Filter

Reliable Engine Oil Filtration for Suzuki Grand Vitara and SX4 Models

The Wix 57530 engine oil filter is designed to provide effective oil filtration for Suzuki Grand Vitara, SX4, and SX4 Crossover vehicles. Engineered with key features to maintain engine performance, this spin-on lube filter supports proper oil flow and contaminant removal.

Key Features of Wix 57530 Engine Oil Filter

• Anti-Drain Back Valve to prevent dry starts and maintain oil pressure
• Beta Ratio of 2/20=6/17 for efficient contaminant capture
• Bypass Relief Valve set at 19 psi to ensure oil flow under high pressure conditions
• Cellulose media material for effective filtration with a 21 micron rating
• Flow rate between 7-9 gallons per minute to support engine lubrication needs
• Spin-on style with 3/4-16 thread size for straightforward installation
• Compact dimensions: 3.357 inches height and 2.820 inches outer diameter

Detailed Description of Wix 57530 Engine Oil Filter

The Wix 57530 engine oil filter is a Class C, light-duty filter designed specifically for Suzuki vehicles including the Grand Vitara, SX4, and SX4 Crossover. Its cellulose media effectively traps particles down to 21 microns, helping to protect engine components from wear caused by contaminants. The anti-drain back valve prevents oil from draining out of the filter when the engine is off, reducing dry starts and ensuring immediate oil flow at startup. The bypass relief valve activates at 19 psi to maintain oil circulation even if the filter becomes clogged, protecting the engine from oil starvation. With a flow rate of 7 to 9 gallons per minute, this filter supports consistent oil delivery under normal operating conditions. The spin-on design and standard 3/4-16 thread size make installation and replacement straightforward for maintenance professionals and DIY enthusiasts alike.

Compatible Vehicles and Common Applications

• Engine oil filtration for Suzuki Grand Vitara models
• Engine oil filtration for Suzuki SX4 and SX4 Crossover vehicles
• Helps prevent engine wear caused by contaminants in oil
• Maintains oil pressure and flow during engine operation
• Supports engine longevity by ensuring clean oil circulation

Installation Notes and Tips

• Ensure the engine is cool before removing the old oil filter
• Apply a thin layer of clean engine oil to the gasket of the new Wix 57530 filter before installation
• Hand-tighten the filter until the gasket contacts the mounting surface, then tighten an additional 3/4 turn
• Check for leaks after installation and during initial engine operation
• Replace the oil filter during every oil change interval recommended by Suzuki

Quality Assurance and Warranty Information

Wix filters are manufactured to meet industry standards for filtration efficiency and durability. The 57530 engine oil filter undergoes rigorous testing to ensure reliable performance in Suzuki Grand Vitara and SX4 models. While specific warranty details may vary, Wix typically offers coverage against defects in materials and workmanship. Consult Wix documentation or authorized service providers for warranty terms related to this part number.
