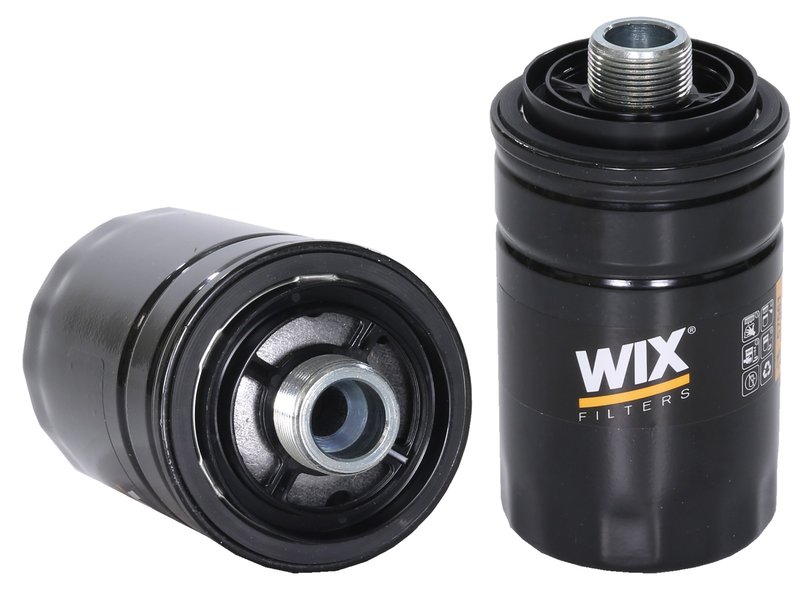

Wix 57561 Engine Oil Filter

Overview of Wix 57561 Engine Oil Filter

The Wix 57561 engine oil filter is designed for reliable oil filtration in select Audi and Volkswagen vehicles. Engineered with synthetic media and a spin-on style, this filter supports optimal engine performance and longevity.

• Anti-drain back valve to prevent dry starts
• Bypass relief valve set at 36 psi for consistent oil flow
• Flow direction: outside-in for effective filtration
• Height: 5.573 inches, Outer diameter top: 3.095 inches
• Thread size: 27x1.5 mm, compatible with specific Audi and Volkswagen models
• Spin-on lube filter style for straightforward installation

Technical Details and Features

The Wix 57561 oil filter features synthetic media material that enhances contaminant capture and extends filter life compared to conventional cellulose filters. Its outside-in flow direction ensures that oil passes through the filter media efficiently, trapping particles before reaching the engine. The built-in anti-drain back valve prevents oil from draining out of the filter when the engine is off, reducing wear during startup. The bypass relief valve is calibrated at 36 psi, allowing oil to bypass the filter element if it becomes clogged or during cold starts, maintaining engine lubrication under all conditions. The spin-on design simplifies replacement, and the 27x1.5 mm thread size matches the filter housing on compatible vehicles.

Compatible Vehicles and Applications

This Wix 57561 engine oil filter is compatible with a range of Audi and Volkswagen models, including but not limited to Audi A3, A4, A5, A6, Q3, Q5, TT, and Volkswagen Golf, Jetta, Passat, Tiguan, Beetle, and Amarok. It is suitable for models with both standard and Quattro all-wheel-drive configurations. Using this filter helps maintain proper engine oil cleanliness and flow in these vehicles, supporting engine durability and performance.

Common Issues Addressed by Wix 57561 Oil Filter

• Prevents engine wear caused by contaminants in the oil
• Reduces risk of oil starvation during cold starts with anti-drain back valve
• Maintains oil flow under high pressure with bypass relief valve
• Helps avoid engine damage from clogged or restricted filters
• Supports consistent engine performance in Audi and Volkswagen models

Installation Notes and Tips

• Ensure the engine is cool before removing the old filter
• Apply a thin layer of clean engine oil to the gasket of the new filter for proper sealing
• Hand-tighten the Wix 57561 filter until the gasket contacts the mounting surface, then tighten according to vehicle manufacturer specifications
• Check for leaks after installation and during initial engine operation
• Dispose of the used oil filter according to local regulations

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration efficiency and durability. The 57561 model undergoes rigorous testing to ensure consistent performance in compatible Audi and Volkswagen vehicles. While specific warranty terms may vary, Wix typically offers coverage against defects in materials and workmanship. Refer to Wix documentation for detailed warranty information.
