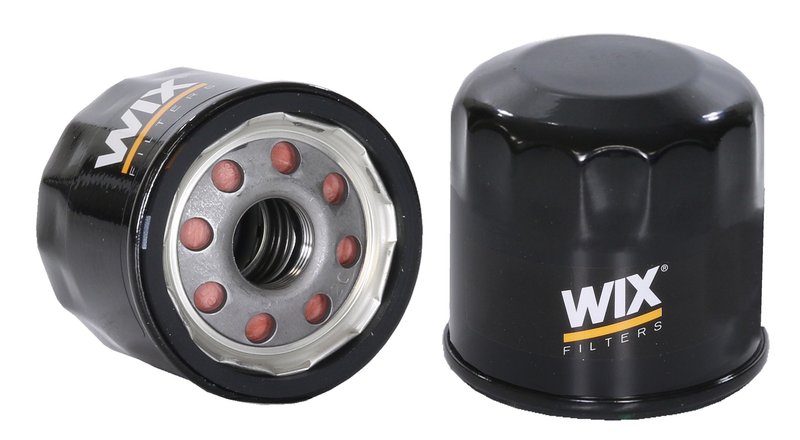

Wix 57712 Engine Oil Filter

Overview of Wix 57712 Engine Oil Filter

The Wix 57712 engine oil filter is designed for reliable oil filtration in select Mazda, Saab, and Subaru vehicles. This spin-on lube filter features enhanced cellulose media and an anti-drain back valve to maintain oil flow and engine protection during operation.

• Anti-Drain Back Valve to prevent dry starts
• Enhanced cellulose media for effective contaminant capture
• Beta Ratio of 2/20 ensuring filtration efficiency
• Burst pressure rating of 300 psi for durability
• Bypass relief valve set at 23 psi for consistent oil flow
• Flow rate between 9-11 gallons per minute
• Spin-on style with 20x1.5 mm thread size
• Compact height of 2.577 inches and outer diameter of 2.685 inches

Technical Details and Specifications

The Wix 57712 oil filter is engineered with a Class A duty type rating, suitable for light-duty applications. Its enhanced cellulose media provides a micron rating of 21, balancing filtration efficiency and flow. The anti-drain back valve helps maintain oil in the filter during engine shutdown, reducing wear during startup. The bypass relief valve activates at 23 psi to ensure oil continues circulating even if the filter becomes clogged. With a burst pressure of 300 psi, this filter maintains structural integrity under high pressure conditions. The spin-on design with a 20x1.5 mm thread size allows for straightforward installation on compatible vehicles.

Compatible Vehicles and Applications

This Wix 57712 engine oil filter is compatible with various Mazda, Saab, and Subaru models, including Mazda 626, Saab 9-2X, and Subaru models such as Baja, Forester, Impreza, Legacy, Outback, WRX, and WRX STI. It is designed to meet the specific filtration requirements of these vehicles, ensuring proper engine protection and performance.

Common Issues Addressed by Wix 57712 Oil Filter

• Prevents engine wear caused by contaminants in the oil
• Reduces risk of oil starvation during cold starts with anti-drain back valve
• Maintains consistent oil flow even under high pressure or clogging conditions
• Protects engine components by filtering particles down to 21 microns
• Helps avoid engine damage from oil bypass during filter blockage

Installation Notes and Tips

• Ensure the engine is cool before removing the old filter
• Apply a thin layer of clean engine oil to the gasket of the new filter for proper sealing
• Hand-tighten the Wix 57712 filter until the gasket contacts the mounting surface, then tighten an additional 3/4 turn
• Check for leaks after installation and during initial engine operation
• Dispose of the used oil filter according to local regulations

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The 57712 model undergoes rigorous testing for burst pressure, flow rate, and filtration efficiency. While specific warranty details may vary, Wix typically offers coverage against defects in materials and workmanship. Refer to Wix documentation for exact warranty terms applicable to this engine oil filter.
