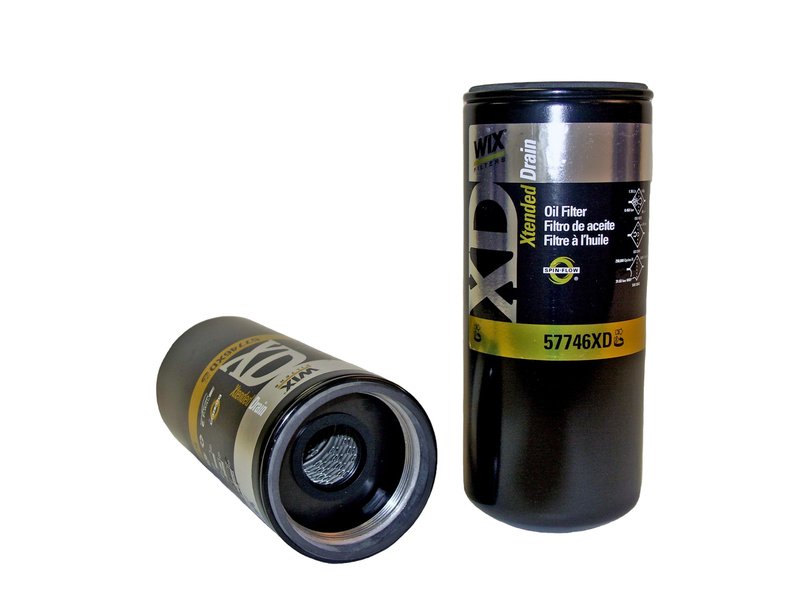

Wix 57746XD Engine Oil Filter - Full-Flow/By-Pass
OE Quality 60-Day Returns
Wix

Wix 57746XD Engine Oil Filter - Full-Flow/By-Pass

Brand Wix 57746XD
Position Full-Flow/By-Pass
Anti-Drain Back Valve No
Burst Pressure 305
Bypass Relief Valve Setting None
Class Ha
Duty Type Hd
Flow Rate 34-38 gpm
Height 11.791
Inner Diameter Top Closed
Media Material Microglass
Micron 35.00
Outer Diameter Top 4.650
Style Spin-on lube filter
Thread Size 95x2.5 mm
Fits —

High-capacity media. Microglass filtration helps protect the engine under demanding conditions.

Heavy-duty design. Built for trucks and equipment with OEM oil-change intervals in mind.

Leak-resistant construction. Corrosion-resistant can, center tube, and end caps improve durability.

Cross-references Atlas-Copco 57899346, Atlas-Copco 2657899346 and Baldwin BD7154 for the same application. See all 72.

$66.59Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $66.59
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Oil Filter options

WIX HD Oil Filter 57746XD Overview

The WIX 57746XD is a heavy-duty spin-on engine oil filter built for demanding diesel and industrial service. It uses microglass media, a high-capacity design, and corrosion-resistant construction to help maintain oil cleanliness in medium-duty and heavy-duty equipment.

Compatible With applications that call for a 95 x 2.5 mm thread, this filter is commonly cross-referenced in fleets and equipment platforms such as Cummins, Volvo, and John Deere service programs. The WIX 57746XD is built for long service intervals where consistent filtration and leak-resistant sealing matter.

Key Features

  • Spin-on lube filter design for engine oil service
  • Microglass media for fine particle capture
  • 35 micron filtration rating
  • 34-38 GPM flow rate for high-volume oil systems
  • 305 burst pressure rating
  • No anti-drain back valve
  • No bypass relief valve setting
  • 11.791 in. height with 4.650 in. outer diameter
  • 95 x 2.5 mm thread size

Detailed Description

WIX engineered the 57746XD for medium and heavy trucks, farm machinery, construction equipment, mining equipment, and other high-load applications. The high-capacity media is paired with strong canister, center tube, and end cap construction to support reliable oil filtration under varied operating conditions. If you are sourcing a WIX HD oil filter for Cummins, Volvo, or John Deere equipment, this part number is a direct reference point for service matching.

This part cross-references Fleetguard LF9001 and Donaldson ELF7900 for the same application.

What It Helps Address

  • Excess engine wear from contaminated oil
  • Reduced oil cleanliness during extended service intervals
  • Pressure-related filter stress in heavy-duty operation
  • Leak concerns at the filter seal and housing interface
  • Filtration demands in trucks and off-highway equipment

Installation Notes and Tips

Verify thread size, gasket sealing surface, overall height, and filter clearance before installation. Confirm the application calls for a spin-on lube filter with a closed top and no anti-drain back valve. For best results, follow the OEM oil and filter change interval and check the sealing area after startup.

Quality Assurance

The WIX 57746XD is built with corrosion-resistant components and sealing materials selected for long-lasting service in demanding environments. Its HD construction and microglass media reflect WIX’s focus on durable filtration for commercial and off-highway equipment.

Related reading

This part fits 0 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
Directly replaces or cross-references 72 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Atlas-Copco — 57899346Atlas-Copco — 2657899346Baldwin — BD7154Baldwin — BD7355Baldwin — BD40139CARQUEST Premium Filters — 84746XDCARQUEST Premium Filters — 96333Case — 76612210Coopers — LSF 5190Cummins — 2882674Cummins — 3101869Cummins — 3406809Cummins — 4331005Daewoo — 47400034PDaewoo — 97400034PDonaldson — ELF7900Donaldson — P550949Donaldson — P559000Euclid — E12979663Fiat — 76194865Filtron — WX 57746XDFleetguard — LF9001Fleetguard — LF9011Fleetguard — LF9018Fleetguard — LF9080Fleetrite — FLRTLF9080FRAM — PH8691FRAM — PH8691AFRAM — TPH8691AFPGeneral Motors — 1527 5439General Motors — 1550 1271General Motors — LF9001Gonher — GP9001Grove — 9414101645Hastings — LF499Hastings — LF1000Hengst — H322WHyster — 1415822Hyundai — 11NB70110Ingersoll Rand — 23020407John Deere — RE574468John Deere — REC310186900John Deere — RECLF9080000K&N — HP8006Kalmar — 800045125Kalmar — 9239440174Komatsu — 6002111340Komatsu — 6002111341Kralinator — D391Liebherr — 10332314Linde — 3562229031LUBER-FINER — LFP 9001LUBER-FINER — LFP9001-1LUBER-FINER — LFP9008Manitowoc — 4136480Manitowoc — A047950Mann-Filter — MH10002Mann-Filter — WP 12 120Mann-Filter — WP 12 120/1NAPA Gold Filters — 7746XDNew Holland Construction — 87408494New Holland Construction — 8900131282Purolator — L 65329Sakura — C5710Sakura — C5724Sisu — 1216400571Volvo — 85114044Volvo — 85125742Wix Europe — 57746XDABPN10GLF9001C516OC 516
