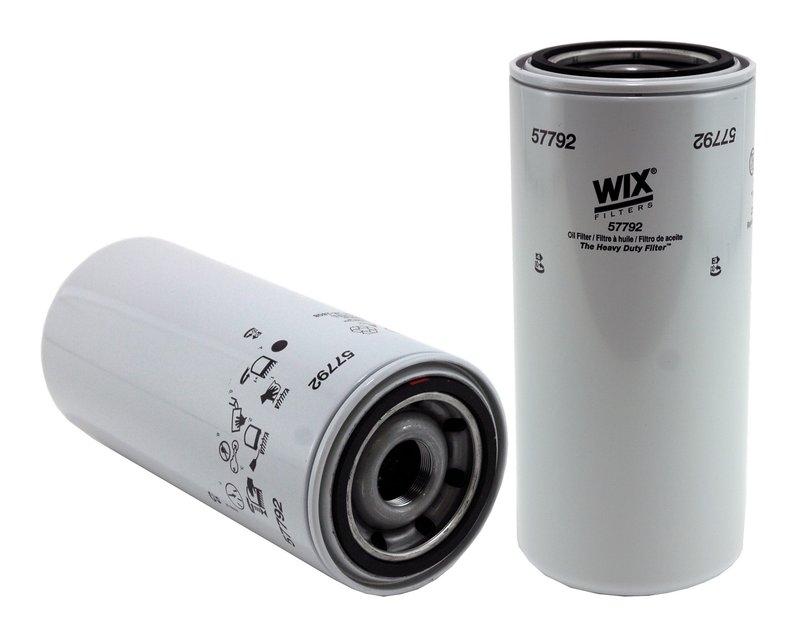

Wix 57792 Engine Oil Filter - Full Flow

Reliable Engine Oil Filtration for Heavy-Duty Vehicles

The Wix 57792 engine oil filter is designed to provide consistent filtration performance for heavy-duty applications. Engineered with enhanced cellulose media, this spin-on lube filter supports efficient oil flow and protection for a variety of vehicle makes and models requiring a 1 1/2-16 thread size.

• Spin-on lube filter style for easy installation
• Enhanced cellulose media with 16-micron filtration rating
• Heavy-duty duty type (Hd) for demanding engine conditions
• Flow rate between 28-30 gallons per minute (gpm)
• High burst pressure rating of 280 psi
• Closed inner diameter top with 5.342-inch outer diameter
• Thread size: 1 1/2-16 for compatible engine fittings
• No anti-drain back valve or bypass relief valve setting
• Beta ratio of 2/20=9/20 indicating filtration efficiency
• Height of 12.184 inches for proper fitment

Technical Details and Performance

The Wix 57792 oil filter utilizes enhanced cellulose media to capture contaminants down to 16 microns, helping maintain engine oil cleanliness. Its heavy-duty classification (Hd) and high burst pressure of 280 psi ensure durability under high-stress operating conditions. The filter’s flow rate of 28-30 gpm supports adequate oil circulation, critical for engine longevity. The spin-on design simplifies replacement, while the closed inner diameter top and 1 1/2-16 thread size ensure secure attachment to compatible engines.

Compatible Vehicles and Applications

This engine oil filter is suitable for heavy-duty trucks and commercial vehicles that require a 1 1/2-16 threaded spin-on filter with a height near 12.2 inches. It is commonly used in diesel engines where robust filtration and flow rates are necessary. Vehicle makes such as Freightliner, Kenworth, Peterbilt, and Volvo often specify filters with similar dimensions and performance characteristics. Always verify fitment with your vehicle’s service manual or parts guide before purchase.

Common Issues Addressed by Wix 57792 Oil Filter

• Prevents engine wear caused by particulate contamination
• Maintains oil flow under heavy load conditions
• Reduces risk of filter collapse due to high pressure
• Helps avoid engine damage from clogged or inefficient filtration
• Supports engine performance by maintaining clean oil circulation

Installation Notes and Tips

Before installing the Wix 57792 oil filter, ensure the engine is cool and the oil system is depressurized. Apply a light coat of clean engine oil to the filter gasket to ensure a proper seal. Hand-tighten the filter until the gasket contacts the mounting surface, then follow vehicle manufacturer torque specifications. Check for leaks after installation and monitor oil pressure during initial engine operation.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration efficiency and durability. The 57792 model undergoes rigorous testing to ensure consistent performance under heavy-duty conditions. While specific warranty details are not provided here, Wix typically offers coverage against defects in materials and workmanship. Consult Wix documentation or your parts supplier for warranty terms applicable to this filter.
