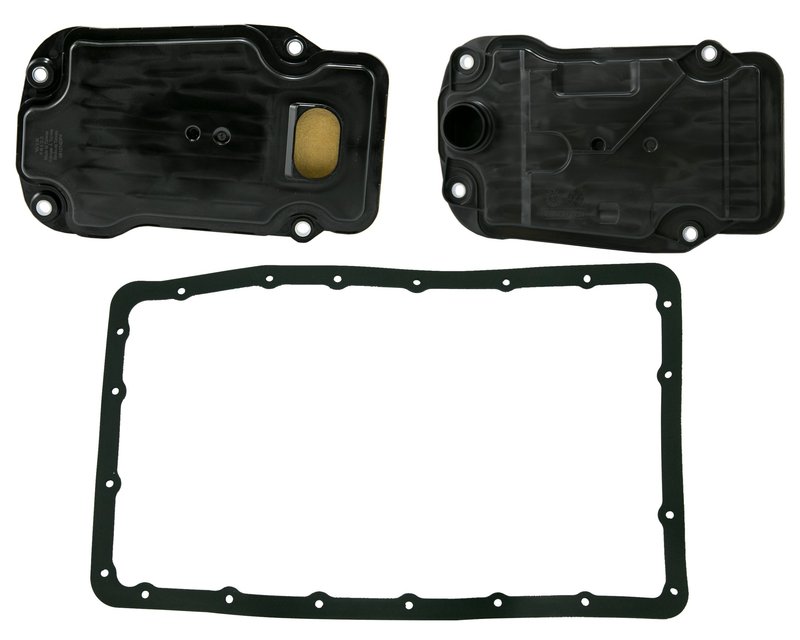

Wix 58122 Transmission Filter Kit
| Brand | Wix 58122 |
|---|---|
| Class | D |
| Duty Type | LD |
| Inner Diameter Top | Closed |
| Style | Automatic Transmission Filter |
| Fits | Toyota and Lexus · 71 vehicles |
Complete filtration. Lock-seamed, sealed construction keeps unfiltered fluid from bypassing the media.
Application-specific sealing. Gaskets are made for use with today’s sophisticated transmission fluids.
Automatic transmission filter kit. A service kit built around an automatic transmission filter.
Cross-references ATP B332, Beck/Arnley 0440353 and Filtran F499 for the same application. See all 7.
Wix 58122 Transmission Filter Kit
The Wix 58122 transmission filter kit is built for automatic transmissions that require controlled fluid filtration and application-specific sealing. It is a direct-fit service part for select Toyota and Lexus models, including Toyota Tundra, Sequoia, Land Cruiser, and Lexus LX570 applications.
Key Features
- Automatic transmission filter kit for service replacement
- Application-specific filtration media helps keep unfiltered fluid from bypassing the filter element
- Lock-seamed and sealed construction supports consistent fluid control
- Includes sealing gaskets designed for modern transmission fluid formulations
- Closed inner diameter top style
- Light-duty class D design
Detailed Description
Wix 58122 is an automatic transmission filter kit engineered for select Toyota and Lexus vehicles with compatible transmission service requirements. The filter design uses sealed construction and matched sealing components to maintain filtration through the service interval. For drivers servicing a Toyota Tundra, Toyota Sequoia, Toyota Land Cruiser, or Lexus LX570, this kit provides a direct replacement option for the original transmission filter assembly. This part cross-references Toyota 3533060060 and ATP B332 for the same application.
Compatible With 2023-2024 Toyota 4Runner, 2019-2022 Toyota 4Runner, 2016-2019 Toyota Land Cruiser, 2014 Toyota Land Cruiser, 2014-2015 Lexus LX570, 2014 Toyota Sequoia, 2014 Toyota Tundra, 2013 Lexus LX570, 2008-2011 Lexus LX570, 2013 Toyota Land Cruiser, 2008-2011 Toyota Land Cruiser, 2008-2013 Toyota Sequoia, 2007-2013 Toyota Tundra, 2008-2013 Toyota Tundra with Trans Mfr Code AB60E or F, 2007-2011 Lexus GS350, 2009 Toyota Sequoia with Trans Mfr Code AB60, 2006-2007 Lexus GS430, 2006-2007 Lexus SC430, and 2004-2006 Lexus LS430.
Common Service Issues It Can Address
- Restricted transmission fluid flow from a clogged filter
- Contamination in the automatic transmission fluid circuit
- Poor filtration after transmission service
- Fluid seepage at the filter or gasket interface
- Incorrect fitment when replacing an OE-style transmission filter
Installation Notes and Tips
Verify the transmission code and OE part number before installation, especially on Toyota Tundra and Toyota Sequoia applications with AB60E, F, or AB60 notes. Inspect the pan, sealing surfaces, and fluid condition during service, and replace the filter only with the correct application-specific gasket set. Confirm the filter orientation and sealing points before refilling with the specified transmission fluid.
Quality Assurance
Wix transmission filter kits are built with sealed assemblies and vehicle-specific sealing components to support complete filtration in the intended application. The design reflects Wix’s focus on OE-style service parts for modern automatic transmissions.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2024 | Toyota | 4Runner | Limited | — | 4.0L | V6 | N/A | — |
| 2023 | Toyota | 4Runner | Limited | — | 4.0L | V6 | N/A | — |
| 2022 | Toyota | 4Runner | — | — | 4.0L | V6 | N/A | Original Equipment Part Number 3533060060 |
| 2021 | Toyota | 4Runner | — | — | 4.0L | V6 | N/A | Original Equipment Part Number 3533060060 |
| 2020 | Toyota | 4Runner | — | — | 4.0L | V6 | N/A | Original Equipment Part Number 3533060060 |
| 2019 | Toyota | 4Runner | — | — | 4.0L | V6 | N/A | Original Equipment Part Number 3533060060 |
| 2019 | Toyota | Land Cruiser | — | — | 5.7L | V8 | N/A | Original Equipment Part Number 3533060060 |
| 2018 | Toyota | Land Cruiser | — | — | 5.7L | V8 | N/A | Original Equipment Part Number 3533060060 |
| 2017 | Toyota | Land Cruiser | — | — | 5.7L | V8 | N/A | Original Equipment Part Number 3533060060 |
| 2016 | Toyota | Land Cruiser | — | — | 5.7L | V8 | N/A | Original Equipment Part Number 3533060060 |
| 2015 | Lexus | LX570 | — | — | 5.7L | V8 | N/A | Original Equipment Part Number 3533060060 |
| 2014 | Lexus | LX570 | — | — | 5.7L | V8 | N/A | Original Equipment Part Number 3533060060 |
| 2014 | Toyota | Land Cruiser | — | — | 5.7L | V8 | N/A | Original Equipment Part Number 3533060060 |
| 2014 | Toyota | Sequoia | — | — | 5.7L | V8 | N/A | Original Equipment Part Number 3533060060 |
| 2014 | Toyota | Tundra | — | — | 4.0L | V6 | N/A | Original Equipment Part Number 3533060060 |
| 2014 | Toyota | Tundra | — | — | 4.6L | V8 | N/A | Original Equipment Part Number 3533060060 |
| 2014 | Toyota | Tundra | — | — | 5.7L | V8 | N/A | Original Equipment Part Number 3533060060 |
| 2013 | Lexus | LX570 | — | — | 5.7L | V8 | N/A | — |
| 2013 | Toyota | Land Cruiser | — | — | 5.7L | V8 | N/A | — |
| 2013 | Toyota | Sequoia | — | — | 5.7L | V8 | N/A | — |
| 2013 | Toyota | Tundra | — | — | 4.0L | V6 | N/A | — |
| 2013 | Toyota | Tundra | — | — | 4.6L | V8 | N/A | — |
| 2013 | Toyota | Tundra | — | — | 5.7L | V8 | N/A | Trans Mfr Code: AB60E or F |
| 2012 | Toyota | Sequoia | — | — | 4.6L | V8 | N/A | — |
| 2012 | Toyota | Sequoia | — | — | 5.7L | V8 | N/A | — |
| 2012 | Toyota | Tundra | — | — | 4.0L | V6 | N/A | — |
| 2012 | Toyota | Tundra | — | — | 4.6L | V8 | N/A | — |
| 2012 | Toyota | Tundra | — | — | 5.7L | V8 | N/A | Trans Mfr Code: AB60E or F |
| 2011 | Lexus | GS350 | — | RWD | 3.5L | V6 | N/A | — |
| 2011 | Lexus | LX570 | — | — | 5.7L | V8 | N/A | — |
| 2011 | Toyota | Land Cruiser | — | — | 5.7L | V8 | N/A | — |
| 2011 | Toyota | Sequoia | — | — | 4.6L | V8 | N/A | — |
| 2011 | Toyota | Sequoia | — | — | 5.7L | V8 | N/A | — |
| 2011 | Toyota | Tundra | — | — | 4.0L | V6 | N/A | — |
| 2011 | Toyota | Tundra | — | — | 4.6L | V8 | N/A | — |
| 2011 | Toyota | Tundra | — | — | 5.7L | V8 | N/A | Trans Mfr Code: AB60E or F |
| 2010 | Lexus | GS350 | — | RWD | 3.5L | V6 | N/A | — |
| 2010 | Lexus | LX570 | — | — | 5.7L | V8 | N/A | — |
| 2010 | Toyota | Land Cruiser | — | — | 5.7L | V8 | N/A | — |
| 2010 | Toyota | Sequoia | — | — | 4.6L | V8 | N/A | — |
| 2010 | Toyota | Sequoia | — | — | 5.7L | V8 | N/A | — |
| 2010 | Toyota | Tundra | — | — | 4.0L | V6 | N/A | — |
| 2010 | Toyota | Tundra | — | — | 4.6L | V8 | N/A | Trans Mfr Code: AB60E or F |
| 2010 | Toyota | Tundra | — | — | 5.7L | V8 | N/A | Trans Mfr Code: AB60E or F |
| 2009 | Lexus | GS350 | — | RWD | 3.5L | V6 | N/A | — |
| 2009 | Lexus | LX570 | — | — | 5.7L | V8 | N/A | — |
| 2009 | Toyota | Land Cruiser | — | — | 5.7L | V8 | N/A | — |
| 2009 | Toyota | Sequoia | — | — | 4.7L | V8 | N/A | — |
| 2009 | Toyota | Sequoia | — | — | 5.7L | V8 | N/A | Trans Mfr Code: AB60 |
| 2009 | Toyota | Tundra | — | — | 4.7L | V8 | N/A | Trans Mfr Code: AB60E or F |
| 2009 | Toyota | Tundra | — | — | 4.0L | V6 | N/A | — |
| 2009 | Toyota | Tundra | — | — | 5.7L | V8 | N/A | Trans Mfr Code: AB60E or F |
| 2008 | Lexus | GS350 | — | RWD | 3.5L | V6 | N/A | — |
| 2008 | Lexus | LX570 | — | — | 5.7L | V8 | N/A | — |
| 2008 | Toyota | Land Cruiser | — | — | 5.7L | V8 | N/A | — |
| 2008 | Toyota | Sequoia | — | — | 4.7L | V8 | N/A | — |
| 2008 | Toyota | Sequoia | — | — | 5.7L | V8 | N/A | — |
| 2008 | Toyota | Tundra | — | — | 4.7L | V8 | N/A | Trans Mfr Code: AB60E or F |
| 2008 | Toyota | Tundra | — | — | 4.0L | V6 | N/A | — |
| 2008 | Toyota | Tundra | — | — | 5.7L | V8 | N/A | — |
| 2007 | Lexus | GS350 | — | RWD | 3.5L | V6 | N/A | — |
| 2007 | Lexus | GS430 | — | — | 4.3L | V8 | N/A | — |
| 2007 | Lexus | SC430 | — | — | 4.3L | V8 | N/A | — |
| 2007 | Toyota | Tundra | — | — | 4.7L | V8 | N/A | — |
| 2007 | Toyota | Tundra | — | — | 4.0L | V6 | N/A | — |
| 2007 | Toyota | Tundra | — | — | 5.7L | V8 | N/A | — |
| 2006 | Lexus | GS430 | — | — | 4.3L | V8 | N/A | — |
| 2006 | Lexus | LS430 | — | — | 4.3L | V8 | N/A | Original Equipment Part Number 3533050020 |
| 2006 | Lexus | SC430 | — | — | 4.3L | V8 | N/A | — |
| 2005 | Lexus | LS430 | — | — | 4.3L | V8 | N/A | Original Equipment Part Number 3533050020 |
| 2004 | Lexus | LS430 | — | — | 4.3L | V8 | N/A | Original Equipment Part Number 3533050020 |
