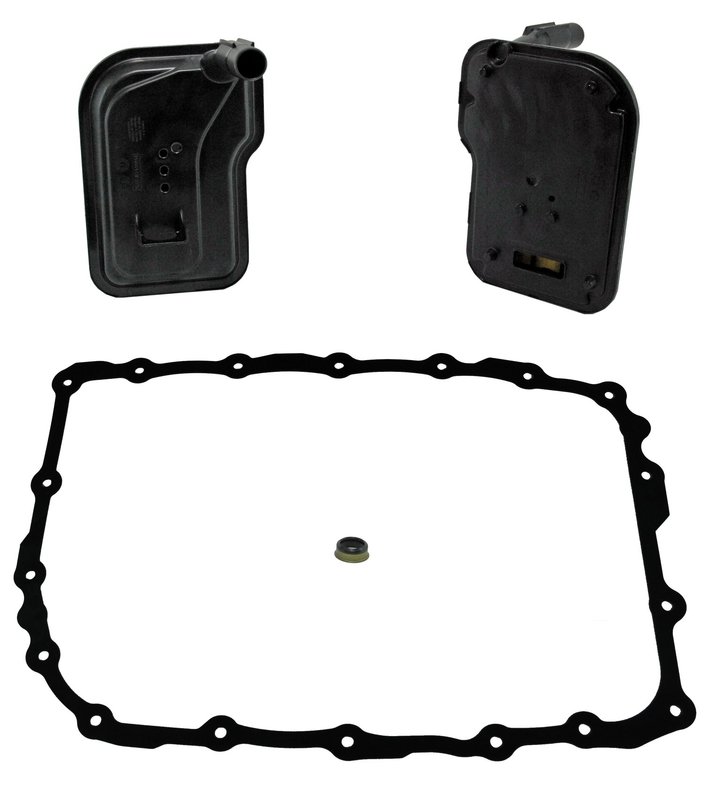

Wix 58931 Transmission Filter Kit
| Brand | Wix 58931 |
|---|---|
| Class | W |
| Duty Type | LD |
| Inner Diameter Top | Closed |
| Style | Automatic Transmission Filter |
| Fits | Chevrolet and Cadillac · 38 vehicles |
Complete filtration. Lock-seamed, sealed construction keeps unfiltered fluid from bypassing the media.
Application-specific sealing. Gaskets are designed for use with today’s sophisticated transmission fluids.
Automatic transmission filter kit. Includes the filter and sealing components for service work.
Cross-references ATP B267, ATP B268 and General Motors 24236518 for the same application. See all 8.
WIX 58931 Transmission Filter Kit
The WIX 58931 transmission filter kit is built for automatic transmissions that require controlled fluid filtration and a precise sealing fit. It is a direct choice for service work on Chevrolet Camaro, Chevrolet Corvette, Cadillac SRX, and related applications where clean transmission fluid is critical.
Key Features
- Automatic transmission filter kit for light-duty service applications
- Application-specific filtration media helps keep unfiltered fluid from bypassing the filter element
- Lock-seamed and sealed construction supports consistent fluid control
- Includes sealing gaskets designed for modern transmission fluids
- Closed top inner diameter style
- WIX part number 58931 for OE-style service replacement
Product Details
WIX 58931 is an automatic transmission filter kit engineered around the needs of today’s transmission service intervals. The filter design uses application-specific sealing components and a sealed assembly to maintain filtration integrity inside the transmission. This helps support clean fluid flow during routine maintenance on vehicles such as the 2014-2015 Chevrolet Camaro, 2014 Chevrolet Corvette, and 2007-2009 Cadillac SRX. This part cross-references General Motors 24236931 for the same application.
Compatible With 2006-2013 Chevrolet Corvette, 2010-2013 Chevrolet Camaro, 2012-2013 Chevrolet Caprice, 2013 Chevrolet Impala, 2007-2009 Cadillac SRX, 2008-2009 Cadillac XLR, and 2007-2008 Cadillac STS. The WIX 58931 part number also appears in service listings for OE replacement use on select GM automatic transmissions.
What It Helps Address
- Transmission fluid contamination during service intervals
- Poor sealing at the filter-to-case interface
- Bypass of unfiltered fluid around the media
- Maintenance needs on GM automatic transmission applications
- Fitment issues caused by using the wrong transmission filter style
Installation Notes
Verify transmission application, OE part number, and filter style before installation. Confirm the closed-top inner diameter and gasket match the transmission case and service specification. Clean the pan and mating surfaces thoroughly, then install the filter and gasket according to the vehicle service procedure.
Quality Assurance
WIX designs transmission filters with sealed, lock-seamed construction and application-specific sealing components to support complete filtration in automatic transmission service. The included gaskets are specified for use with modern transmission fluids.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2015 | Chevrolet | Camaro | — | 3.6L | V6 | N/A | Original Equipment Part Number 24236931 |
| 2015 | Chevrolet | Camaro | — | 6.2L | V8 | N/A | Original Equipment Part Number 24236931 |
| 2014 | Chevrolet | Camaro | — | 3.6L | V6 | N/A | Original Equipment Part Number 24236931 |
| 2014 | Chevrolet | Camaro | — | 6.2L | V8 | N/A | Original Equipment Part Number 24236931 |
| 2014 | Chevrolet | Corvette | — | 6.2L | V8 | N/A | Original Equipment Part Number 24236931 |
| 2013 | Chevrolet | Camaro | — | 3.6L | V6 | N/A | — |
| 2013 | Chevrolet | Camaro | — | 6.2L | V8 | N/A | — |
| 2013 | Chevrolet | Caprice | — | 3.6L | V6 | N/A | — |
| 2013 | Chevrolet | Corvette | — | 7.0L | V8 | N/A | — |
| 2013 | Chevrolet | Corvette | — | 6.2L | V8 | N/A | — |
| 2013 | Chevrolet | Impala | — | 3.6L | V6 | N/A | — |
| 2012 | Chevrolet | Camaro | — | 3.6L | V6 | N/A | — |
| 2012 | Chevrolet | Camaro | — | 6.2L | V8 | N/A | — |
| 2012 | Chevrolet | Caprice | — | 3.6L | V6 | N/A | — |
| 2012 | Chevrolet | Corvette | — | 7.0L | V8 | N/A | — |
| 2012 | Chevrolet | Corvette | — | 6.2L | V8 | N/A | — |
| 2011 | Chevrolet | Camaro | — | 6.2L | V8 | N/A | — |
| 2011 | Chevrolet | Corvette | — | 7.0L | V8 | N/A | — |
| 2011 | Chevrolet | Corvette | — | 6.2L | V8 | N/A | — |
| 2010 | Chevrolet | Camaro | — | 6.2L | V8 | N/A | — |
| 2010 | Chevrolet | Corvette | — | 7.0L | V8 | N/A | — |
| 2010 | Chevrolet | Corvette | — | 6.2L | V8 | N/A | — |
| 2009 | Cadillac | SRX | — | 3.6L | V6 | N/A | — |
| 2009 | Cadillac | XLR | — | 4.6L | V8 | N/A | — |
| 2009 | Cadillac | XLR | V | 4.4L | V8 | N/A | — |
| 2009 | Chevrolet | Corvette | — | 7.0L | V8 | N/A | — |
| 2009 | Chevrolet | Corvette | — | 6.2L | V8 | N/A | — |
| 2008 | Cadillac | SRX | — | 3.6L | V6 | N/A | — |
| 2008 | Cadillac | STS | — | 4.6L | V8 | N/A | — |
| 2008 | Cadillac | STS | — | 3.6L | V6 | N/A | — |
| 2008 | Cadillac | STS | V | 4.4L | V8 | N/A | — |
| 2008 | Cadillac | XLR | V | 4.4L | V8 | N/A | — |
| 2008 | Chevrolet | Corvette | — | 7.0L | V8 | N/A | — |
| 2008 | Chevrolet | Corvette | — | 6.2L | V8 | N/A | — |
| 2007 | Cadillac | SRX | — | 3.6L | V6 | N/A | — |
| 2007 | Cadillac | STS | V | 4.4L | V8 | N/A | — |
| 2007 | Chevrolet | Corvette | — | 6.0L | V8 | N/A | — |
| 2006 | Chevrolet | Corvette | — | 6.0L | V8 | N/A | — |
