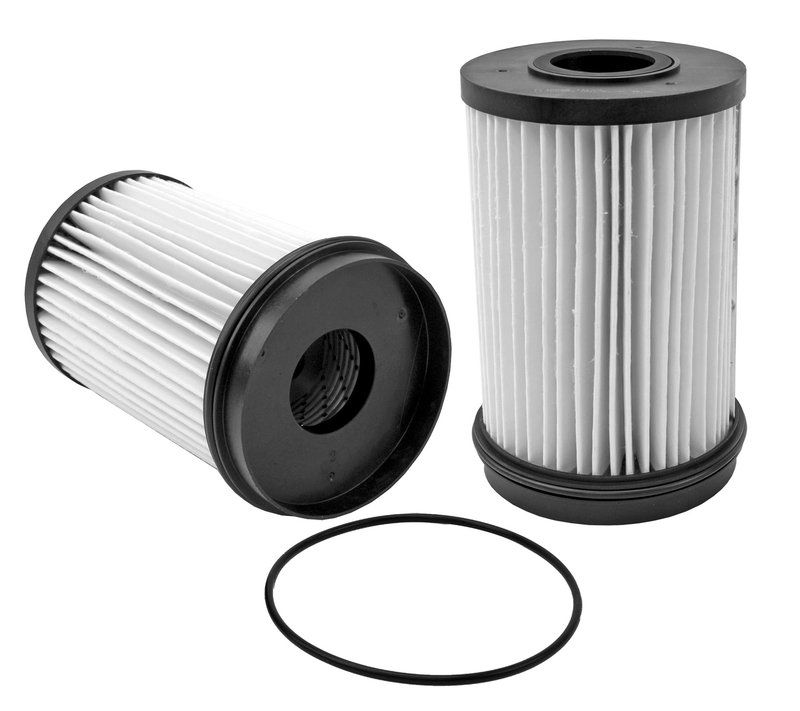

Wix WF10568 Fuel Water Separator Filter

WIX WF10568 Fuel Water Separator Filter

The WIX WF10568 is a heavy-duty fuel water separator filter built for clean fuel delivery and effective water removal in diesel applications. Its full synthetic media and corrosion-resistant construction support long service life in demanding commercial use.

Key Features

• Full synthetic media for strong contaminant holding capacity
• Separates water from fuel to help protect injection components
• High-strength can, center tube, and end caps resist corrosion
• Superior sealing components support leak-resistant operation
• Cartridge-style, metal-free filter design
• Part number WF10568 for direct catalog lookup

Detailed Description

WIX engineered the WF10568 for heavy-duty fuel systems that need consistent water separation and filtration performance. The synthetic media helps capture contaminants while maintaining flow, and the durable housing components are built for long-term service in harsh operating conditions. This fuel water separator filter is a practical choice for diesel trucks and equipment where clean fuel is critical to reliable operation. Cross-reference part numbers include Baldwin PF46235 and FS20176 for the same application.

Common Issues It Helps Address

• Water contamination in diesel fuel
• Premature wear in fuel system components
• Restricted fuel flow from a loaded filter
• Contaminant buildup in heavy-duty fuel circuits
• Leak concerns at the filter sealing surfaces

Installation Notes and Tips

Verify the filter dimensions before installation: 6.437 inches tall, with a 4.284-inch bottom outer diameter, 4.136-inch top outer diameter, and 2.096-inch bottom inner diameter. Confirm the housing style and service interval against the vehicle or equipment service manual. For diesel applications such as Ford F-250 and Ford F-350 service setups, replace the filter at the recommended maintenance interval and inspect the drain and sealing surfaces during service. The part number WF10568 should be matched to the existing filter specification before installation.

Quality Assurance

WIX builds this filter with corrosion-resistant metal components and sealing materials selected for leak-resistant performance in heavy-duty service. The synthetic media and cartridge construction support dependable filtration for diesel fuel systems.
