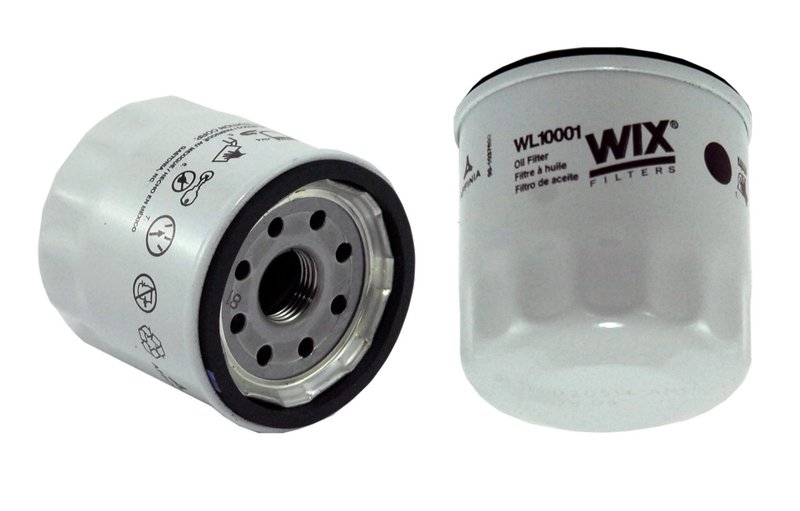

Wix WL10001 Engine Oil Filter

Overview of Wix WL10001 Engine Oil Filter

The Wix WL10001 engine oil filter is designed specifically for Chevrolet vehicles including the Aveo, Beat, Cavalier, Spark, and Spark Classic models. This spin-on lube filter offers reliable filtration performance to help maintain engine health and efficiency.

• Anti-Drain Back Valve to prevent dry starts
• Bypass Relief Valve set at 22 psi for consistent oil flow
• Enhanced cellulose media with 21 micron filtration rating
• Spin-on style with 18x1.5 mm thread size for secure fitment
• Compact height of 2.78 inches and outer diameter of 2.685 inches

Technical Features and Specifications

The WL10001 oil filter utilizes enhanced cellulose media to capture contaminants down to 21 microns, ensuring effective engine oil filtration. Its anti-drain back valve prevents oil from draining out of the filter when the engine is off, reducing wear during startup. The bypass relief valve is calibrated at 22 psi to maintain oil flow even if the filter becomes clogged. This filter is classified as Class B with a light-duty (Ld) rating, suitable for standard passenger vehicle use. The spin-on design with an 18x1.5 mm thread size allows for straightforward installation on compatible Chevrolet models.

Compatible Chevrolet Models

This Wix WL10001 engine oil filter is compatible with the following Chevrolet vehicles: Aveo, Beat, Cavalier, Spark, and Spark Classic. It is engineered to meet the specific oil filtration requirements of these models, ensuring proper fit and function.

Common Applications and Problem Solving

• Prevents engine wear caused by contaminants in the oil
• Reduces risk of dry starts with anti-drain back valve
• Maintains oil flow under high pressure with bypass valve
• Helps extend engine life by maintaining clean oil circulation
• Ensures proper fitment and sealing to avoid leaks

Installation Notes and Tips

When installing the Wix WL10001 oil filter, ensure the engine is cool and the vehicle is on a level surface. Apply a thin layer of clean engine oil to the rubber gasket before threading the filter onto the engine. Tighten the filter according to manufacturer specifications, typically hand-tight plus a quarter turn. Check for leaks after installation and during the first few minutes of engine operation.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The WL10001 is built with quality materials including enhanced cellulose media and durable valve components. While specific warranty details may vary, Wix generally offers coverage against defects in materials and workmanship. Refer to Wix documentation for complete warranty information.
