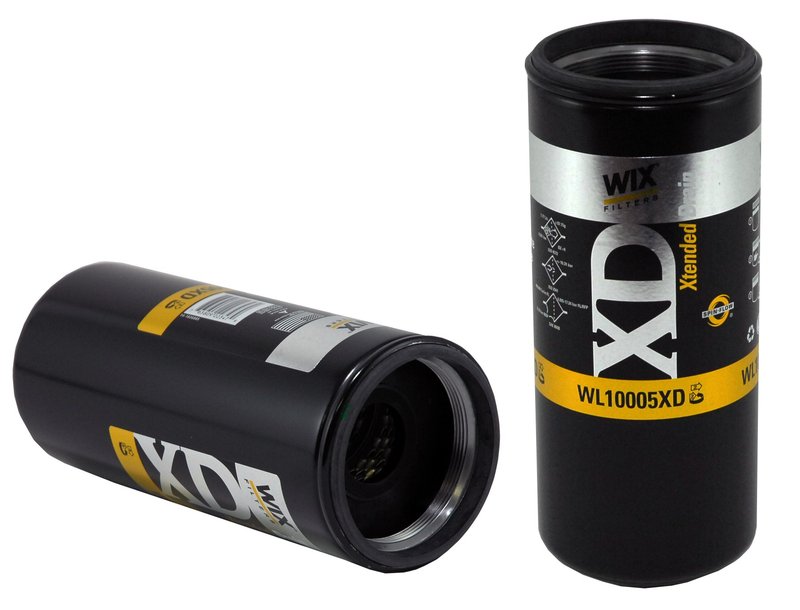

Wix WL10005XD Engine Oil Filter - Full-Flow/By-Pass
| Brand | Wix WL10005XD |
|---|---|
| Position | Full-Flow/By-Pass |
| Anti-Drain Back Valve | No |
| Burst Pressure | 305 |
| Bypass Relief Valve Setting | None |
| Class | Hw |
| Duty Type | Hd |
| Flow Rate | 34-38 gpm |
| Height | 11.791 |
| Inner Diameter Top | Closed |
| Media Material | Microglass |
| Micron | 35.00 |
| Outer Diameter Top | 4.650 |
| Style | Spin-on lube filter |
| Thread Size | 95x2.5 mm |
| Fits | — |
High-capacity media. Microglass filtration helps protect engines under demanding operating conditions.
Spin-on design. Makes oil filter changes straightforward and efficient.
Leak-resistant construction. Corrosion-resistant components and superior sealing help maintain performance.
Cross-references Baldwin BD7509, CARQUEST Premium Filters 94005XD and Cummins 4906633 for the same application. See all 8.
WIX HD Oil Filter WL10005XD Overview
The WIX WL10005XD is a heavy-duty spin-on engine oil filter built for demanding diesel and industrial service. It uses high-capacity microglass media, a corrosion-resistant housing, and a leak-resistant sealing design to support long service intervals in medium-duty and heavy-duty applications.
Compatible With Cummins-powered equipment and other heavy-duty engine platforms, the WL10005XD is built for consistent oil filtration under tough operating conditions. The WIX WL10005XD is also cross-referenced to Fleetguard LF9031 and Baldwin BD7509 for the same application.
Key Features
- Spin-on lube filter design for heavy-duty engine oil service
- Microglass media with 35 micron filtration
- High flow rate of 34-38 GPM
- 305 burst pressure rating for demanding operating conditions
- Corrosion-resistant can, center tube, and end caps
- No anti-drain back valve and no bypass relief valve setting
- Thread size: 95x2.5 mm
- Height: 11.791 in; outer diameter: 4.650 in
Detailed Description
WIX engineered the WL10005XD for medium and heavy trucks, farm equipment, construction machinery, mining equipment, and similar diesel applications that require dependable oil filtration. The microglass media is selected for high-capacity contaminant capture, while the robust canister and sealing components support leak resistance and durability during extended service. This part number, WL10005XD, is a practical choice for owners and technicians servicing Cummins applications and other heavy-duty engines that use this filter specification.
What It Helps Address
- Engine wear caused by oil contamination
- Reduced filtration performance in extended drain intervals
- Leak concerns at the filter seal or housing
- Pressure-related filter failure in severe-duty use
- Oil flow restriction in high-demand diesel service
Installation Notes and Tips
Verify thread size, gasket sealing surface, height clearance, and filter diameter before installation. Because this filter does not use an anti-drain back valve and has no bypass relief valve setting, confirm the engine’s oiling system requirements before use. Always follow the vehicle or equipment service manual for the correct oil change interval and installation procedure.
Quality Assurance
WIX HD oil filters are built for OEM oil and filter change intervals and are constructed with high-quality materials for long-lasting service in severe-duty environments. The WL10005XD is manufactured with corrosion-resistant components and sealing elements intended to maintain reliable filtration performance under varied operating conditions.
