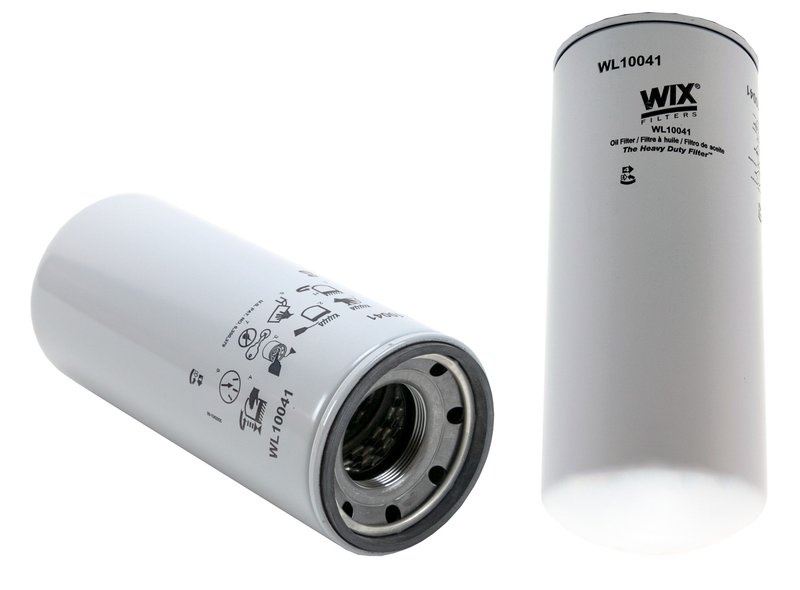

Wix WL10041 Engine Oil Filter - Full-Flow/By-Pass

Overview of Wix WL10041 Engine Oil Filter

The Wix WL10041 engine oil filter is designed for heavy-duty applications requiring reliable filtration. Featuring a microglass media material and a spin-on lube filter style, this filter supports efficient engine protection for various vehicle makes and models.

• Microglass media material for enhanced filtration efficiency
• Spin-on lube filter style for straightforward installation
• Height of 11.364 inches and outer diameter of 4.668 inches
• Thread size 2 1/4-12 for secure fitment
• No anti-drain back valve or bypass relief valve setting
• Burst pressure rated at 500 psi
• Beta ratio of 2/20/75=5/27/37 for particle retention

Technical Details and Specifications

The WL10041 oil filter utilizes microglass media, which provides superior contaminant retention compared to conventional cellulose filters. With a micron rating of 35.00, it effectively filters out fine particles to protect engine components. The filter’s burst pressure rating of 500 psi ensures durability under high-pressure conditions common in heavy-duty engines. Its spin-on design simplifies replacement, while the 2 1/4-12 thread size ensures compatibility with specific engine models. The filter does not include an anti-drain back valve or bypass relief valve, which is typical for certain heavy-duty applications where these features are not required.

Compatible Vehicles and Applications

This Wix WL10041 engine oil filter is compatible with a range of heavy-duty trucks and commercial vehicles. It is suitable for engines requiring a filter with a height of approximately 11.364 inches and a 2 1/4-12 thread size. Commonly used in diesel engines and other heavy-duty applications, it supports reliable engine oil filtration to maintain performance and longevity.

Common Issues Addressed by the WL10041 Filter

• Prevents engine wear caused by contaminants in the oil
• Reduces risk of oil starvation by maintaining proper flow
• Protects against damage from fine particulate matter
• Helps maintain engine efficiency and reduce downtime
• Supports engine longevity in heavy-duty operating conditions

Installation Notes and Tips

When installing the Wix WL10041 oil filter, ensure the engine is cool to avoid burns. Verify the thread size matches the engine’s filter mount (2 1/4-12). Apply a thin layer of clean engine oil to the gasket before installation to ensure a proper seal. Tighten the filter according to manufacturer torque specifications to prevent leaks. Since this filter does not have an anti-drain back valve, it is important to check oil levels after installation and initial engine start-up.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for heavy-duty engine filtration. The WL10041 undergoes rigorous testing, including burst pressure and beta ratio evaluations, to ensure consistent performance. While specific warranty details are not provided, Wix products typically come with a limited warranty against defects in materials and workmanship. Consult Wix documentation or authorized distributors for warranty terms related to this part number.
