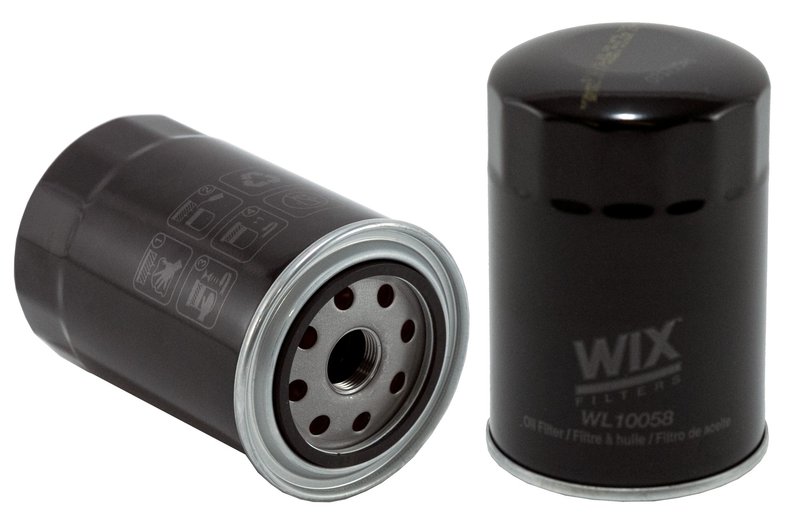

Wix WL10058 Engine Oil Filter

Overview of Wix WL10058 Engine Oil Filter

The Wix WL10058 engine oil filter is designed specifically for Ram ProMaster 1500, 2500, and 3500 models. This spin-on lube filter offers reliable filtration performance with features tailored to maintain engine health and efficiency.

• Anti-drain back valve to prevent dry starts
• Bypass relief valve set at 8 psi for optimal oil flow
• Class C duty type suitable for light-duty applications
• Cellulose media material for effective contaminant capture
• Spin-on style with 22x1.5 mm thread size for secure installation
• Dimensions: 5.61 inches height, 3.78 inches outer diameter top
• Inner diameter top is closed for proper sealing

Technical Details and Features

The WL10058 oil filter from Wix is engineered with a cellulose media material that efficiently traps dirt and debris, protecting the engine oil system. Its anti-drain back valve helps maintain oil in the filter during engine shutdown, reducing wear during startup. The bypass relief valve is calibrated at 8 psi, ensuring oil flow continues even if the filter becomes clogged, preventing oil starvation. This filter is classified as Class C and designed for light-duty (Ld) applications, making it suitable for the Ram ProMaster series. The spin-on style with a 22x1.5 mm thread size allows for straightforward installation and removal.

Compatible Vehicles and Applications

This Wix WL10058 engine oil filter is compatible with the following Ram models:

• Ram ProMaster 1500
• Ram ProMaster 2500
• Ram ProMaster 3500

Using the correct oil filter like the WL10058 ensures proper engine lubrication and filtration tailored to these specific vehicles.

Common Issues Addressed by the WL10058 Oil Filter

• Prevents engine wear caused by contaminants in the oil
• Reduces risk of oil starvation during cold starts with anti-drain back valve
• Maintains oil flow under high pressure with bypass relief valve
• Helps avoid engine damage from clogged or inefficient filters
• Supports engine longevity in Ram ProMaster 1500, 2500, and 3500 models

Installation Notes and Tips

• Ensure the thread size (22x1.5 mm) matches the vehicle’s oil filter mount
• Lubricate the gasket with clean engine oil before installation for a proper seal
• Tighten the filter according to manufacturer torque specifications to avoid leaks
• Check for leaks after installation and during initial engine operation

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The WL10058 is built with quality cellulose media and robust components to provide consistent performance. While specific warranty details are not provided here, Wix typically offers warranties covering defects in materials and workmanship. Always refer to Wix’s official documentation for complete warranty information.
