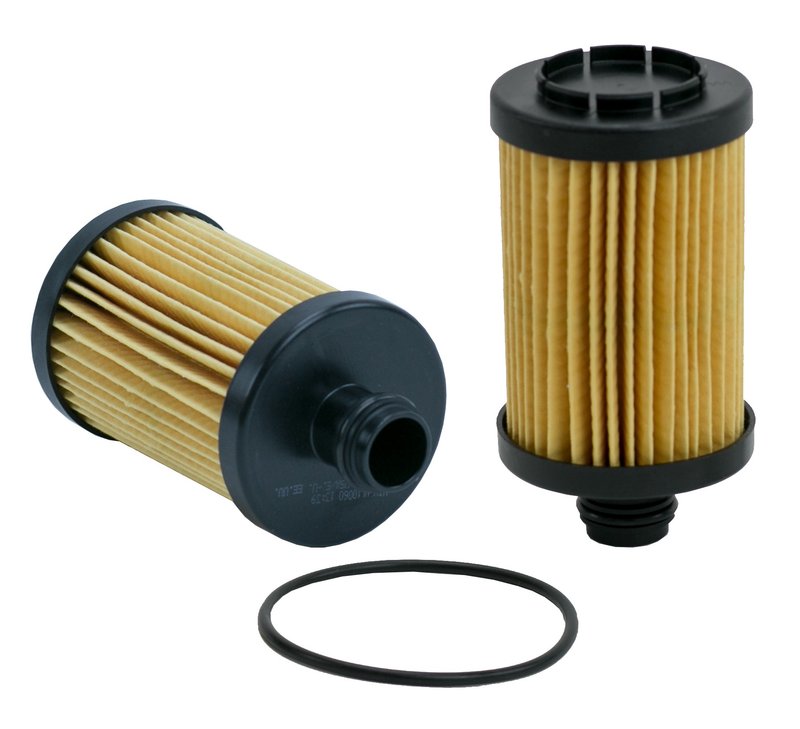

Wix WL10060 Engine Oil Filter

Overview of Wix WL10060 Engine Oil Filter

The Wix WL10060 engine oil filter is designed for reliable oil filtration in select Jeep and Ram vehicles. Engineered with cellulose media and a cartridge lube metal-free filter style, it supports efficient engine performance and protection.

• Compatible with Jeep Grand Cherokee and Ram 1500, 1500 Classic models
• Class A filter with light-duty (Ld) application
• Height: 4.893 inches for precise fitment
• Cellulose media with 19 micron filtration rating
• Cartridge style, metal-free construction for environmental compliance
• Outer diameter bottom and top: 2.595 inches
• Inner diameter bottom: 0.7 inches; top closed design

Technical Details and Filter Attributes

The WL10060 oil filter features a cellulose media material that provides effective filtration at a 19 micron rating, capturing contaminants to help maintain engine oil cleanliness. Its cartridge lube metal-free filter style reduces environmental impact by eliminating metal components. The filter measures 4.893 inches in height, with an outer diameter of 2.595 inches on both top and bottom, ensuring a secure fit in compatible oil filter housings. The inner diameter at the bottom is 0.7 inches, while the top is closed, designed specifically for the intended cartridge housing system.

Compatible Vehicles and Applications

This Wix WL10060 engine oil filter is compatible with Jeep Grand Cherokee models and Ram 1500 and 1500 Classic trucks. It is intended for light-duty engine oil filtration needs, making it suitable for routine maintenance on these vehicles. Using the correct filter helps maintain engine longevity and performance by effectively removing contaminants from the oil.

Common Issues Addressed by the WL10060 Filter

• Prevents engine wear caused by dirt and debris in oil
• Reduces risk of oil flow restriction due to clogging
• Helps maintain oil pressure within manufacturer specifications
• Minimizes contamination-related engine damage
• Supports consistent engine lubrication and performance

Installation Notes and Tips

When installing the Wix WL10060 oil filter, ensure the vehicle is on a level surface and the engine is cool. Remove the old filter and clean the filter mounting surface before installing the new cartridge filter. Lubricate the rubber gasket with clean engine oil to ensure a proper seal. Tighten the filter according to vehicle manufacturer torque specifications to avoid leaks or damage.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration efficiency and durability. The WL10060 is classified as a Class A filter, suitable for light-duty applications. While specific warranty details may vary, Wix typically offers coverage against defects in materials and workmanship. Always refer to Wix’s official documentation for complete warranty information.
