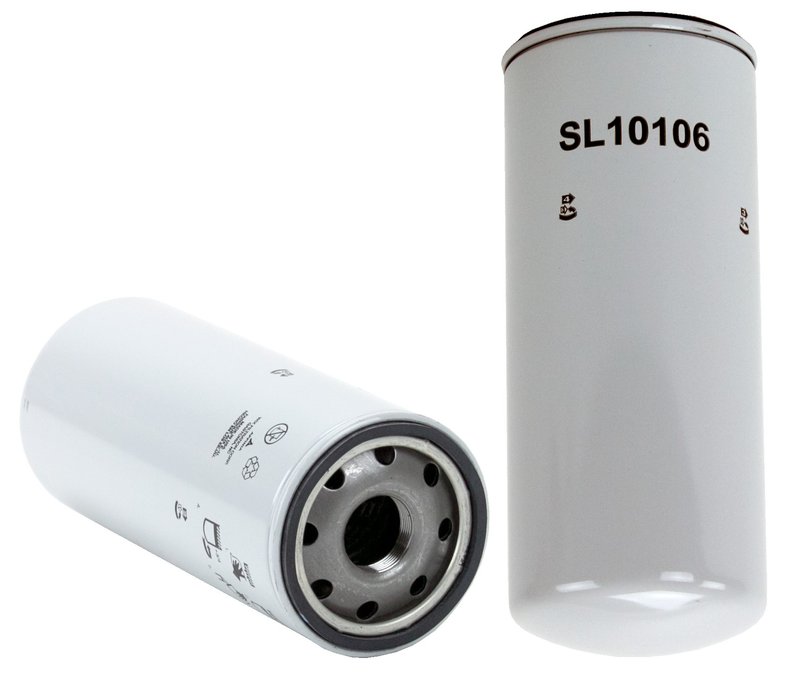

Wix WL10106 Engine Oil Filter - Bypass

Overview of Wix WL10106 Engine Oil Filter

The Wix WL10106 engine oil filter is designed for reliable filtration in heavy-duty applications. Featuring enhanced cellulose media and a spin-on lube filter style, this filter supports efficient engine protection for various vehicle makes and models requiring a 1 3/8-16 thread size.

• Spin-on lube filter design for easy installation
• Enhanced cellulose media for effective contaminant capture
• Heavy-duty (Hd) duty type suitable for demanding engine conditions
• Class Ha filter classification ensuring specific filtration standards
• Dimensions: 10.382 inches height, 4.282 inches outer diameter (top and bottom)
• Thread size: 1 3/8-16 for compatible engine fittings
• No anti-drain back valve or bypass relief valve setting

Technical Details and Specifications

The WL10106 oil filter by Wix is engineered with enhanced cellulose media, providing a balance between filtration efficiency and flow rate. Its spin-on style allows for straightforward replacement without additional tools. The filter’s height of 10.382 inches and consistent outer diameter of 4.282 inches ensure a secure fit in compatible engine housings. The absence of an anti-drain back valve and bypass relief valve setting indicates this filter is optimized for applications where these features are not required. The 1 3/8-16 thread size matches specific engine oil filter mounts commonly found in heavy-duty trucks and commercial vehicles.

Compatible Vehicles and Applications

This Wix WL10106 engine oil filter is compatible with a range of heavy-duty trucks and commercial vehicles that specify a 1 3/8-16 thread size and require a Class Ha, heavy-duty oil filter. It is suitable for use in engines where enhanced cellulose media filtration is recommended. Vehicle makes such as Freightliner, Kenworth, Peterbilt, and Volvo often require filters with these specifications. Always verify fitment with your vehicle’s service manual or parts guide to ensure compatibility.

Common Issues Addressed by the WL10106 Oil Filter

• Prevents engine wear by capturing contaminants and debris
• Maintains oil flow under heavy-duty operating conditions
• Reduces risk of engine damage from unfiltered oil circulation
• Helps avoid oil pressure drops due to clogged filters
• Supports engine longevity in commercial and industrial vehicles

Installation Notes and Tips

When installing the Wix WL10106 oil filter, ensure the engine is cool to prevent burns. Apply a thin layer of clean engine oil to the rubber gasket before threading the filter onto the engine mount. Tighten the filter according to manufacturer torque specifications, typically hand-tight plus a quarter turn. Since this filter does not include an anti-drain back valve, it is important to check oil levels after installation and initial engine start-up. Dispose of the used filter according to local environmental regulations.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The WL10106 model undergoes rigorous quality control to ensure consistent performance in heavy-duty applications. While specific warranty details are not provided here, Wix typically offers warranties covering defects in materials and workmanship. Consult Wix’s official documentation or your parts supplier for exact warranty terms related to the WL10106 oil filter.
