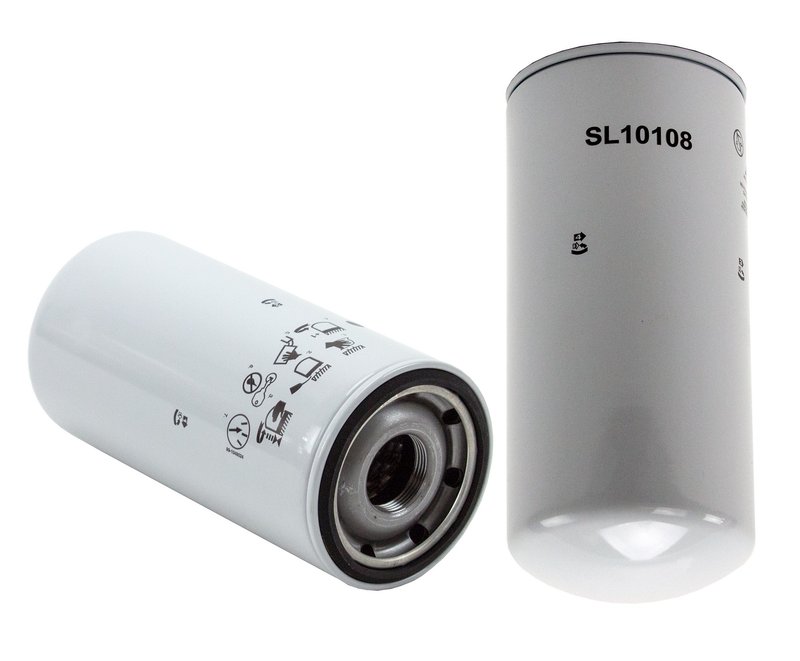

Wix WL10108 Engine Oil Filter - Full Flow

Overview of Wix WL10108 Engine Oil Filter

The Wix WL10108 engine oil filter is designed for heavy-duty applications, providing reliable filtration for various vehicle makes and models. This spin-on lube filter features a cellulose media material and a bypass relief valve setting of 30 psi, ensuring consistent oil flow and engine protection.

• Heavy-duty (Hd) duty type and class for demanding engine conditions
• Spin-on style for straightforward installation and replacement
• Cellulose media material for effective contaminant capture
• Bypass relief valve set at 30 psi to maintain oil flow under high pressure
• Thread size of 1 5/8-12 for secure mounting
• Height of 10.362 inches and outer diameter of 4.652 inches
• BetaRatio filtration efficiency rated at 2/20/75=<4/10/13
• Inner diameter top is closed, no anti-drain back valve included

Technical Details and Specifications

The Wix WL10108 oil filter is engineered with a cellulose media material that balances filtration efficiency and flow rate, suitable for heavy-duty engines. Its beta ratio of 2/20/75=<4/10/13 indicates effective particle retention at various micron levels, helping to protect engine components from wear. The bypass relief valve is calibrated at 30 psi, allowing oil to bypass the filter element if it becomes clogged, preventing oil starvation. The filter’s spin-on design simplifies maintenance, while the 1 5/8-12 thread size ensures compatibility with specific engine models requiring this specification. The filter measures 10.362 inches in height and 4.652 inches in outer diameter, fitting applications that demand these dimensions.

Compatible Vehicles and Applications

The Wix WL10108 engine oil filter is compatible with a range of heavy-duty trucks and commercial vehicles that require a spin-on lube filter with these specifications. It is commonly used in diesel engines and other heavy-duty applications where durability and filtration performance are critical. For example, it fits certain models of Freightliner, International, and Kenworth trucks, among others. Always verify fitment with your vehicle’s OEM specifications or consult a professional mechanic to ensure compatibility.

Common Issues Addressed by the Wix WL10108

• Prevents engine wear caused by contaminants in the oil
• Maintains oil flow under high pressure with a 30 psi bypass valve
• Reduces risk of oil starvation during cold starts or heavy load conditions
• Helps avoid premature engine component failure due to poor filtration
• Supports engine longevity in heavy-duty and commercial vehicle applications

Installation Notes and Tips

When installing the Wix WL10108 oil filter, ensure the engine is cool to avoid burns. Apply a thin layer of clean engine oil to the gasket before threading the filter onto the engine to ensure a proper seal. Tighten the filter according to manufacturer torque specifications, typically hand-tight plus a quarter turn. Check for leaks after installation and during initial engine operation. Replace the filter at regular oil change intervals to maintain optimal engine performance.

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for heavy-duty engine filtration. The WL10108 undergoes rigorous testing to ensure durability and filtration efficiency. While specific warranty details are not provided here, Wix generally offers warranties against defects in materials and workmanship. For warranty claims or detailed information, refer to Wix’s official documentation or contact authorized service providers.
