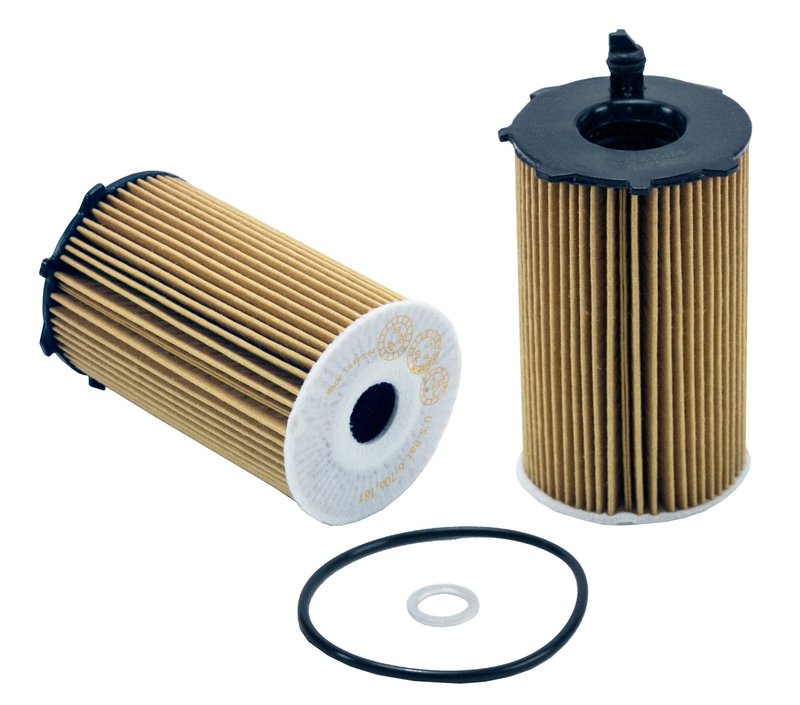

Wix WL10164 Engine Oil Filter

WIX WL10164 Engine Oil Filter Overview

The WIX WL10164 is a cartridge-style engine oil filter built for Hyundai and Kia applications that call for OE-level oil filtration. It uses cellulose media and a metal canister style to support routine oil service with conventional, synthetic, or synthetic-blended motor oils.

Compatible With 2010-2019 Hyundai Santa Fe and Santa Fe XL, 2011-2014 Hyundai Azera, 2011-2018 Kia Sorento, 2011-2018 Kia Sedona, and 2014-2016 Kia Cadenza applications listed below. The WL10164 is also cross-referenced to NAPA Gold 100164 for the same application.

Key Features

• Cartridge lube metal canister style for select Hyundai and Kia engines
• Cellulose filter media for routine engine oil filtration
• Designed for conventional, synthetic, and synthetic-blended motor oils
• Supports OE-recommended oil change intervals, typically 3,750 to 10,000 miles
• Built for normal and severe driving conditions, including stop-and-go traffic, short trips, dirt roads, construction sites, and interstate travel
• Part number WL10164 for easy catalog matching

Detailed Description

The WIX WL10164 engine oil filter is engineered for vehicles that use a cartridge-style filter assembly and follow manufacturer oil service intervals. Its 4.812-inch height, 2.697-inch bottom outer diameter, 2.556-inch top outer diameter, and 1.008-inch bottom inner diameter help identify the correct service part for the listed Hyundai and Kia models. With cellulose media, this filter is suited to regular maintenance where dependable oil cleanliness is required.

Use WL10164 when servicing 2013-2019 Hyundai Santa Fe XL, 2013-2018 Hyundai Santa Fe, 2014-2018 Kia Sedona, 2014-2018 Kia Sorento, 2014-2017 Hyundai Azera, 2014-2016 Kia Cadenza, 2012-2013 Hyundai Azera, 2011-2013 Kia Sorento, 2010-2012 Hyundai Santa Fe, and 2011-2012 Kia Sedona. The WIX WL10164 is a direct catalog match for these OE-referenced applications.

Common Service Issues Addressed

• Routine oil contamination during scheduled maintenance
• Reduced filtration performance from an overdue oil filter
• Service needs on Hyundai Santa Fe and Kia Sorento oil changes
• Oil service on Hyundai Azera, Kia Sedona, and Kia Cadenza applications
• Replacement of an OE-referenced cartridge oil filter assembly

Installation Notes and Tips

Confirm the engine uses a cartridge-style oil filter before installation. Match the vehicle year, make, and model to the listed fitment, and follow the OE oil change interval and service procedure for the engine. Verify the filter housing and sealing surfaces are clean before reassembly.

Quality Assurance

WIX specifies this filter for OEM oil and filter change intervals and for use in both normal and severe driving conditions. The WL10164 is built to meet the service demands of the listed Hyundai and Kia applications while supporting routine engine protection.
