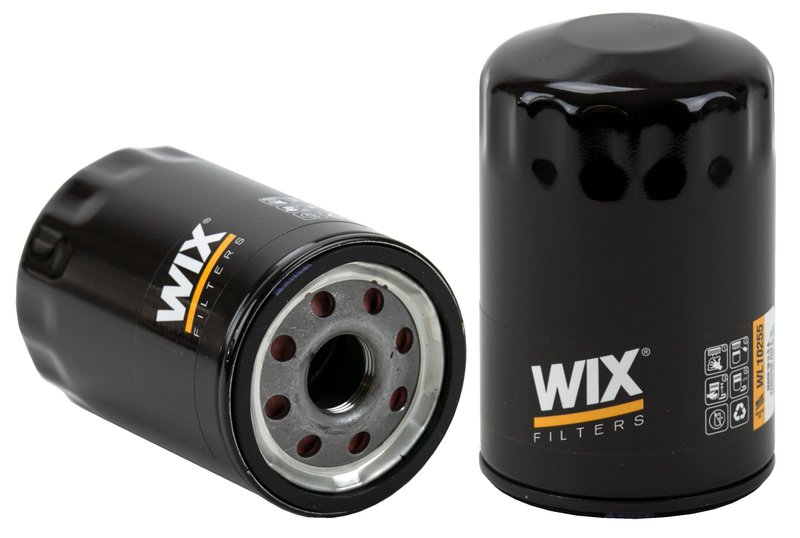

Wix WL10255 Engine Oil Filter - Main

Overview of Wix WL10255 Engine Oil Filter

The Wix WL10255 engine oil filter is designed for reliable oil filtration in a range of vehicles including Buick, Cadillac, Chevrolet, GMC, Jeep, and Ram models. This spin-on lube filter features enhanced cellulose media and an anti-drain back valve to maintain oil flow and engine protection during operation.

• Anti-Drain Back Valve to prevent dry starts
• Enhanced cellulose media for effective filtration
• Spin-on style with 22x1.5 mm thread size
• BetaRatio of 2/20=6/20 for efficient contaminant capture
• Burst pressure rating of 350 psi for durability
• Bypass relief valve setting at 22 psi to ensure oil flow under high pressure
• Height of 4.474 inches and outer diameter of 2.921 inches

Technical Specifications and Features

The WL10255 oil filter utilizes enhanced cellulose media, providing a filtration micron rating of 21.00 to capture contaminants effectively while maintaining oil flow. The anti-drain back valve helps prevent oil from draining out of the filter when the engine is off, reducing wear during startup. With a burst pressure of 350 psi and a bypass relief valve set at 22 psi, this filter maintains oil flow even under extreme conditions. The spin-on design with a 22x1.5 mm thread size allows for straightforward installation and secure fitment.

Compatible Vehicles and Applications

This Wix WL10255 oil filter is compatible with a variety of vehicles, including popular models such as the Chevrolet Silverado 1500, GMC Sierra 2500 HD, Cadillac Escalade, Buick Enclave, Jeep Grand Wagoneer L, and Ram 1500. It is suitable for use in light-duty engines requiring a Class A filter with reliable oil filtration performance.

Common Issues Addressed by the WL10255 Oil Filter

• Prevents engine wear caused by contaminants in the oil
• Reduces risk of oil starvation during cold starts with anti-drain back valve
• Maintains oil flow under high pressure with bypass relief valve
• Protects engine components by filtering particles down to 21 microns
• Ensures consistent oil pressure and filtration efficiency

Installation Notes and Tips

• Ensure the engine is cool before removing the old filter
• Apply a thin layer of clean engine oil to the gasket of the new filter for proper sealing
• Thread the filter by hand until gasket contact, then tighten according to vehicle manufacturer specifications
• Check for leaks after installation and during initial engine operation

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The WL10255 is built to provide consistent performance under normal operating conditions. While specific warranty details may vary, Wix typically offers coverage against defects in materials and workmanship. Refer to Wix documentation for complete warranty information.
