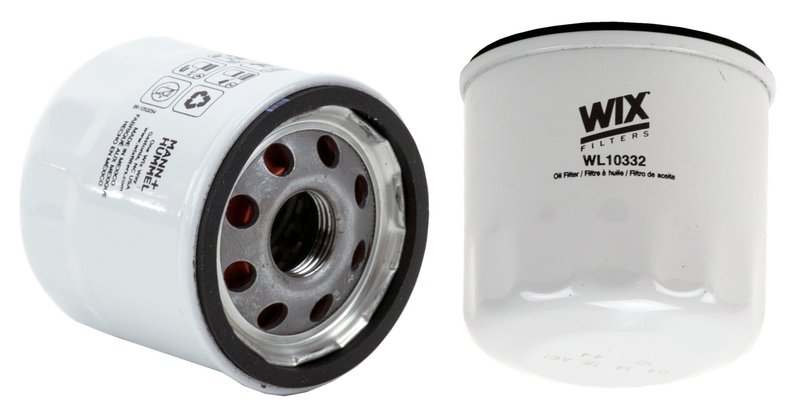

Wix WL10332 Engine Oil Filter - Main

Overview of Wix WL10332 Engine Oil Filter

The Wix WL10332 engine oil filter is designed for reliable oil filtration in select Lexus, Mazda, and Toyota vehicles. This spin-on lube filter features a cellulose media material and essential valves to maintain optimal engine performance and protection.

• Anti-Drain Back Valve to prevent dry starts
• Bypass Relief Valve setting between 11-14 psi for consistent oil flow
• Class A filtration for effective contaminant removal
• Spin-on style with 3/4-16 thread size for easy installation
• Compatible with multiple Lexus, Mazda, and Toyota models

Technical Specifications and Features

The WL10332 oil filter uses cellulose media material, providing dependable filtration by trapping contaminants while allowing proper oil flow. Its anti-drain back valve helps prevent oil from draining out of the filter when the engine is off, reducing wear during startup. The bypass relief valve is calibrated between 11 and 14 psi, ensuring oil continues to circulate even if the filter becomes clogged. This filter is classified as Class A and designed for light-duty applications, making it suitable for everyday driving conditions.

With a height of 2.623 inches and an outer diameter of 2.685 inches, the filter fits securely on compatible engines. The top inner diameter is closed, and the 3/4-16 thread size matches OEM specifications for a proper seal and fit.

Compatible Vehicles and Applications

This Wix WL10332 engine oil filter is compatible with a range of Lexus, Mazda, and Toyota models, including but not limited to:

• Lexus ES250, ES300h, NX250, NX350, NX350h, NX450h+, RX350, RX350h, RX450h+, RX500h, UX200
• Mazda CX-50
• Toyota 4Runner, Avalon, Camry, Corolla, Corolla Cross, Grand Highlander, Highlander, RAV4, RAV4 Prime, Tacoma, Venza

Common Issues Addressed by the WL10332 Oil Filter

• Prevents engine wear caused by contaminants in the oil
• Reduces risk of dry starts with anti-drain back valve
• Maintains oil flow under high pressure with bypass relief valve
• Protects engine components by filtering out harmful particles
• Ensures consistent oil pressure and filtration performance

Installation Notes and Tips

• Ensure the engine is cool before removing the old oil filter
• Apply a thin layer of clean engine oil to the new filter gasket for a proper seal
• Hand-tighten the filter to the manufacturer’s recommended torque specification
• Check for leaks after installation and during initial engine operation
• Replace the oil filter during every oil change for optimal engine protection

Quality Assurance and Warranty

Wix filters are manufactured to meet industry standards for filtration and durability. The WL10332 is built with quality materials and tested to ensure reliable performance in compatible Lexus, Mazda, and Toyota vehicles. While specific warranty details may vary, Wix typically offers coverage against defects in materials and workmanship. Refer to Wix documentation for complete warranty information.
