Wix WL10345 Engine Oil Filter

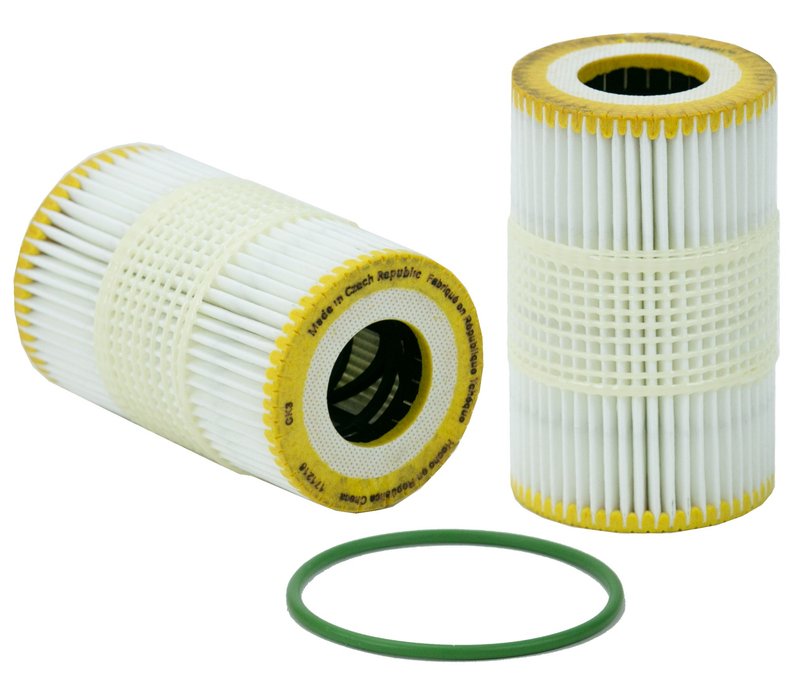

WIX WL10345 Cartridge Oil Filter

The WIX WL10345 is a cartridge-style engine oil filter built for OE-recommended service intervals on select Audi applications. It uses synthetic media and a metal-free cartridge design to support clean oil flow in normal driving and severe conditions such as stop-and-go traffic, short trips, dirt roads, and interstate use.

• Cartridge lube oil filter with synthetic media
• Metal-free cartridge style for select Audi engines
• Built for conventional, synthetic, and synthetic-blended motor oils when specified by the OE manufacturer
• Recommended for OEM oil and filter change intervals
• Dimensions: 4.13 in. height, 2.5 in. top and bottom outer diameter, 1.21 in. inner diameter bottom
• Fits select 2015-2019 Audi A6, A6 Quattro, A7, A7 Quattro, A7 Sportback, A8 Quattro, and Q7 applications

Fitment and Application Details

Compatible with select Audi models that call for the OE oil filter part numbers listed in the fitment data, including 2015-2016 Audi A8 Quattro, 2016 Audi A6, 2016 Audi A7, 2016 Audi A7 Quattro, 2016-2017 Audi A6 Quattro, 2017 Audi A7 Quattro, 2017 Audi A8 Quattro, 2017-2019 Audi Q7, 2018 Audi A6 Quattro, 2018 Audi A7 Quattro, 2018 Audi A8 Quattro, and 2019 Audi A7 Sportback. This part cross-references FRAM CH12056 and Purolator L29169 for the same application. The WIX WL10345 is also referenced by OE part number 06E115562B, 06E115562E, and 06E115562H in the listed fitments.

What This Oil Filter Helps Address

• Engine oil contamination from normal wear particles
• Reduced filtration performance during extended OEM service intervals
• Oil flow concerns in stop-and-go or short-trip driving
• Service needs for Audi engines using cartridge-style filters
• Routine maintenance on vehicles requiring OE-matched oil filter service

Installation Notes and Tips

Verify the OE oil filter part number and engine application before installation. Replace the cartridge during the manufacturer-recommended oil change interval, and follow the vehicle service procedure for the correct housing cap torque and seal inspection. Use the oil type specified by the vehicle manufacturer for the best service match.

Quality Assurance

WIX cartridge oil filters are specified for OEM oil and filter change intervals and are engineered for use with conventional, synthetic, or synthetic-blended motor oils when the OE manufacturer recommends them. The WL10345 is built to meet the service demands of select Audi A6, A7, A8 Quattro, and Q7 applications.
