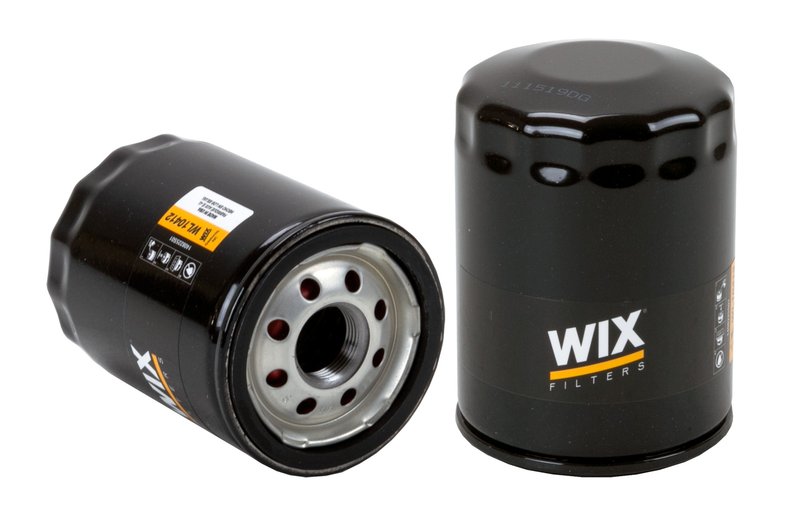

Wix WL10412 Engine Oil Filter - Main

WIX WL10412 Oil Filter Overview

The WIX WL10412 engine oil filter is built for drivers who need dependable filtration during normal service intervals and demanding conditions. It is a spin-on lube filter with enhanced cellulose media, an anti-drain back valve, and a 36 psi bypass setting for consistent oil flow on supported applications.

Compatible With Cadillac XT5, Cadillac XT6, Chevrolet Blazer, Chevrolet Camaro, Chevrolet Traverse Limited, and GMC Acadia applications listed below, the WL10412 is a practical choice for OE-recommended oil change intervals. The WIX WL10412 also cross-references General Motors 12693541 for the same application.

Key Features

• Enhanced cellulose filter media for engine oil filtration
• Anti-drain back valve to help retain oil in the filter after shutdown
• Spin-on lube filter design
• 36 psi bypass relief valve setting
• 400 burst pressure rating
• Thread size: 22 x 1.5 mm
• Height: 4.18 in; outer diameter top: 2.98 in
• Recommended for conventional, synthetic, and synthetic-blended motor oils

Detailed Description

WIX WL10412 is engineered for OE-style oil service on a range of GM vehicles, including Cadillac XT5 and XT6, Chevrolet Blazer and Camaro, Chevrolet Traverse Limited, and GMC Acadia. It is intended for manufacturer-recommended oil and filter change intervals, typically 3,750 to 10,000 miles and not more than 12 months, depending on the vehicle and service schedule. The filter media is designed to trap dirt and contaminants efficiently, while the anti-drain back valve helps reduce dry starts after shutdown.

This part number is also referenced by OEM and aftermarket listings, including General Motors 12693541 and NAPA Gold 100412, making it easier to verify the correct application during maintenance planning. Use the WL10412 when you need a direct-fit oil filter for supported Cadillac, Chevrolet, and GMC engines.

Common Problems This Filter Helps Address

• Oil contamination from dust, soot, and road debris
• Reduced oil retention after engine shutdown
• Premature wear from extended service intervals
• Inconsistent filtration during stop-and-go driving
• Maintenance concerns on vehicles using OE-recommended oil change schedules

Installation Notes and Tips

Verify the engine application, thread size, and filter dimensions before installation. Replace the filter at the same time as the oil change, and follow the vehicle manufacturer’s service interval for the specific engine and driving conditions. For vehicles listed with factory-filled synthetic oil, use the oil grade specified by the OE service information.

• Fits 2023-2026 Cadillac XT5, N/A
• Fits 2023-2025 Cadillac XT6, N/A
• Fits 2023-2026 Chevrolet Blazer, N/A
• Fits 2023-2024 Chevrolet Camaro, N/A
• Fits 2024 Chevrolet Traverse Limited, N/A
• Fits 2023 GMC Acadia, N/A
• Fits 2020-2022 Cadillac XT5, Main
• Fits 2020-2022 Cadillac XT6, N/A
• Fits 2019-2022 Chevrolet Blazer, N/A
• Fits 2021-2022 Chevrolet Camaro, Main
• Fits 2019 Chevrolet Camaro, Main
• Fits 2020-2022 GMC Acadia, N/A
• Fits 2020 Buick Regal Sportback, Main
• Fits 2016-2020 Cadillac CT6, N/A
• Fits 2020 Chevrolet Camaro, N/A
• Fits 2016-2018 Chevrolet Camaro, N/A
• Fits 2018-2019 Buick LaCrosse, N/A
• Fits 2018-2019 Buick Regal Sportback, N/A
• Fits 2016-2019 Cadillac ATS, N/A
• Fits 2018-2019 Cadillac CT6, N/A
• Fits 2016-2019 Cadillac CTS, N/A
• Fits 2018-2019 Cadillac XT5, Main
• Fits 2017 Buick LaCrosse, N/A
• Fits 2017 Cadillac XT5, N/A

Quality Assurance

WIX publishes laboratory test performance data for this filter family, including dirt-holding and efficiency results referenced to ISO testing. The WL10412 is built to support OE-recommended maintenance intervals on the listed Cadillac, Chevrolet, Buick, and GMC applications.
