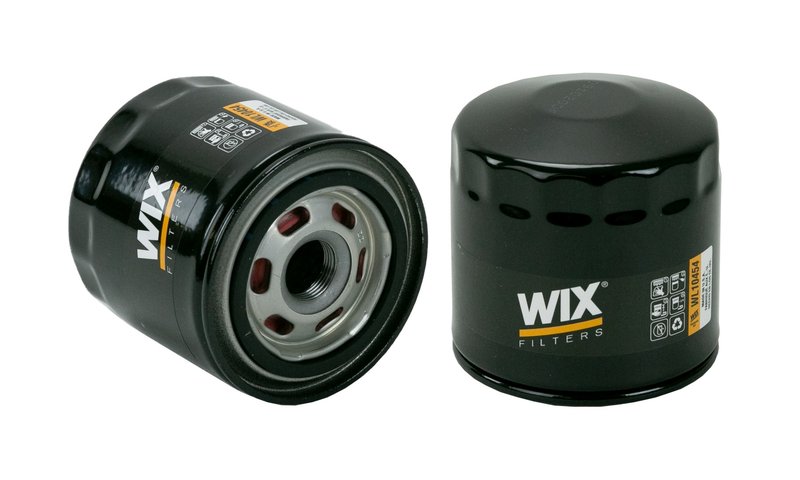

Wix WL10454 Engine Oil Filter

WIX WL10454 Oil Filter Overview

The WIX WL10454 engine oil filter is built for OE-recommended service intervals and everyday protection in demanding driving conditions. It is a spin-on lube filter with synthetic media, a 20 psi bypass relief setting, and an anti-drain back valve for cleaner starts after shutdown.

Compatible With Chevrolet Silverado 2500 HD and Silverado 3500 HD, GMC Sierra 2500 HD and Sierra 3500 HD, plus select Cadillac STS and XLR applications, the WL10454 is a direct-fit oil filter choice for vehicles calling for this size and thread specification.

Key Features

• Part number: WL10454
• Spin-on lube filter design
• Synthetic filter media for contaminant capture
• Anti-drain back valve helps retain oil in the filter after engine shutdown
• Bypass relief valve setting: 20 psi
• Burst pressure rating: 450
• Thread size: 22 x 1.5 mm
• Height: 3.74 in.
• Outer diameter top: 3.67 in.

Detailed Description

WIX WL10454 is engineered for conventional, synthetic, and synthetic-blended motor oils, making it a practical choice for routine maintenance on GM trucks and performance-oriented Cadillac applications. The synthetic media is designed to trap dirt and contaminants while maintaining flow under normal and severe service, including stop-and-go traffic, short trips, dirt roads, construction-site use, and interstate driving. WIX states this filter can capture up to 50% more dirt and contaminants than Protec in severe conditions, and laboratory testing references 99% efficiency at 23 microns on select WIX applications.

This part cross-references ACDelco PF26 for the same application. It also cross-references NAPA Gold Filters 100454 for the same application.

What It Helps Address

• Engine wear from circulating dirt and contaminants
• Oil drain-back after shutdown that can contribute to dry starts
• Service intervals that require a filter built for OE-recommended maintenance
• Filtration demands from stop-and-go driving and short-trip use
• Contaminant buildup in trucks and SUVs used in severe-duty conditions

Installation Notes and Tips

Verify the thread size, filter height, and sealing surface before installation. Replace the filter at the manufacturer-recommended oil change interval, typically 3,750 to 10,000 miles and not more than 12 months, depending on vehicle service requirements. Confirm the vehicle calls for a spin-on filter with 22 x 1.5 mm threads before ordering.

Fits 2020-2022 Chevrolet Silverado 2500 HD, N/A; Fits 2020-2022 Chevrolet Silverado 3500 HD, N/A; Fits 2020-2022 GMC Sierra 2500 HD, N/A; Fits 2020-2022 GMC Sierra 3500 HD, N/A; Fits 2007-2009 Cadillac STS, N/A; Fits 2006-2009 Cadillac XLR, N/A; Fits 2006 Cadillac STS, N/A.

Quality Assurance

WIX positions this oil filter for OE-style service intervals and severe-duty filtration needs. The WL10454 is built with synthetic media and an anti-drain back valve where applicable to support consistent oil filtration in the listed applications.
