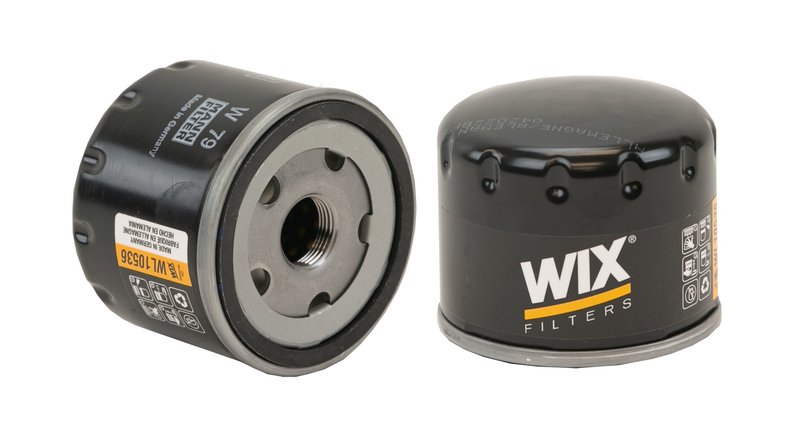

Wix WL10536 Engine Oil Filter

Wix WL10536 Oil Filter for Severe Driving

The Wix WL10536 engine oil filter is built for drivers who need dependable filtration in demanding conditions. It pairs synthetic-blended media with a silicone anti-drainback valve to help maintain oil flow protection during cold starts, stop-and-go traffic, towing, and dusty use.

Key Features

• Synthetic-blended media with 99% dirt-trapping efficiency
• Silicone anti-drainback valve helps reduce dry starts
• Meets or exceeds OE-recommended oil change intervals up to 15,000 miles
• High-capacity design for dirty and dusty environments
• Long-life gasket and solid metal end caps for a secure seal
• Spin-on lube filter design with 20x1.5 mm thread size
• Bypass relief valve setting: 33

Detailed Description

The Wix WL10536 is a spin-on lube filter engineered for severe driving conditions and routine maintenance on select Dodge, Jeep, and Fiat applications. Its cellulose-based media construction is paired with a silicone anti-drainback valve to help keep oil in the filter when the engine is off, while the metal end caps and tight-fitting gasket support a consistent seal under daily driving and heavier use. This part number, WL10536, is a direct service option for vehicles such as the 2024-2025 Dodge Hornet, 2022-2024 Jeep Renegade, and 2020-2022 Fiat 500X.

This part cross-references Mopar 68439517AA and Dayco 95333 for the same application.

What It Helps Address

• Oil contamination from dust, soot, and road debris
• Dry starts after the vehicle sits for extended periods
• Filter strain during stop-and-go commuting and heavy traffic
• Maintenance needs for towing and other higher-load driving
• Frequent service intervals on vehicles calling for OE-style filtration

Installation Notes and Tips

Verify the 20x1.5 mm thread size and spin-on filter style before installation. Replace the filter during each oil service, and pre-lube the gasket with clean engine oil before tightening to the manufacturer’s specification. Confirm clearance around the filter mount on the Dodge Hornet, Jeep Renegade, or Fiat 500X before final tightening.

Quality Assurance

Wix positions this filter for severe-duty service with OE-level maintenance intervals and filtration performance. The WL10536 is built with a silicone anti-drainback valve, solid metal end caps, and a high-capacity media package to support consistent oil filtration in demanding use.
