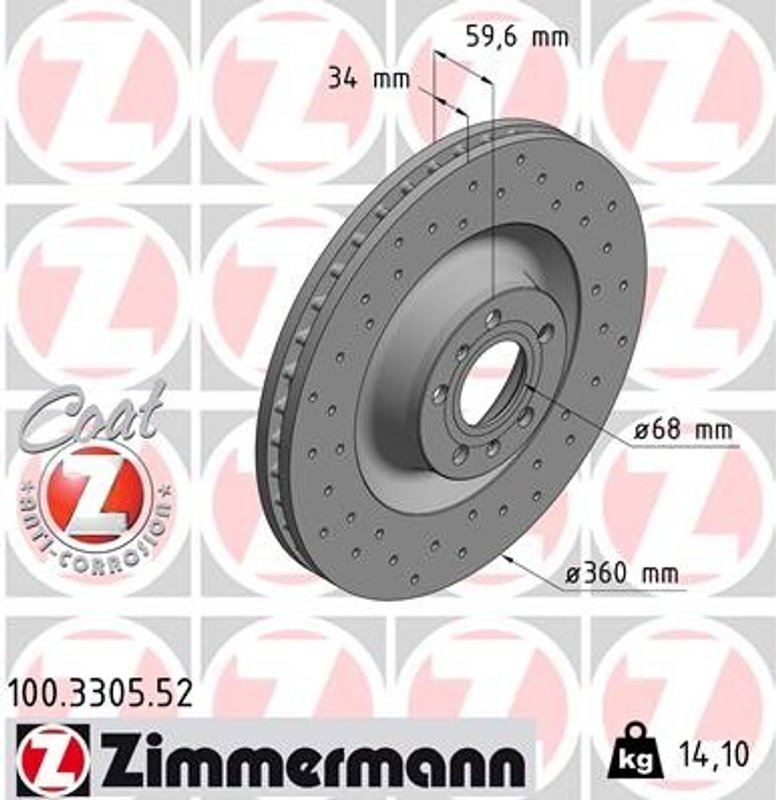

Zimmermann 100.3305.52 Disc Brake Rotor - Front
OE Quality 60-Day Returns
Zimmermann

Zimmermann 100.3305.52 Disc Brake Rotor - Front

Brand Zimmermann 100.3305.52
Position Front
ABE No. Ohne abe
Bolt Hole Circle Ø 1 [mm] 112
Brake Disc Type Perforated
Height [mm] 59,6
Hole Arrangement / Number 10/5
Hub Bore Ø [mm] 68
Machining High-carbon
Minimum thickness [mm] 31
Outer Diameter 360
Surface Coated
Thickness [mm] 34
Weight [kg] 13,5
Fits Audi and Volkswagen · 71 vehicles

Cross-drilled design. Helps move water and brake dust away from the braking surface.

Coated finish. Adds corrosion resistance and a cleaner visual appearance.

High-carbon machining. Supports stable braking performance under heat.

Cross-references AP Exhaust 54222, Brembo 09.9915.11 and Dayco 17530 for the same application. See all 37.

$183.52Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $183.52
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Overview

The Zimmermann Sport Z disc brake rotor, part number 100.3305.52, is built for applications that call for a 360 mm x 34 mm front rotor with a coated surface and cross-drilled braking face. It combines high-carbon machining with corrosion-resistant coating to support consistent braking performance in wet conditions and a cleaner appearance.

Compatible With Audi A6, Audi A6 Quattro, Audi A8 Quattro, Audi S8, and Volkswagen Phaeton front brake applications, this rotor is a direct fit for listed PR-number configurations. The Zimmermann 100.3305.52 is also cross-referenced to Brembo 09.9915.11 and Standard Ignition V235 for the same application.

Key Features

  • Cross-drilled brake disc design for improved water and brake dust evacuation.
  • Coated surface helps resist corrosion and maintain a cleaner finish.
  • High-carbon machining supports stable rotor performance under heat.
  • 360 mm outer diameter, 34 mm thickness, and 31 mm minimum thickness.
  • Fits listed front brake applications for Audi and Volkswagen platforms.

Detailed Description

Zimmermann developed the Sport Z rotor using racing experience and long-term brake rotor manufacturing know-how. The perforated braking surface is paired with high-quality cast material to improve wet-weather braking behavior by moving water and brake dust away from the contact area more effectively. The coated finish adds anti-corrosion protection and a more refined visual appearance, while the rotor’s dimensions and hub specifications match the listed fitments for Audi A6, Audi A6 Quattro, Audi A8 Quattro, Audi S8, and Volkswagen Phaeton front brake systems. Part number 100.3305.52 is supplied without registration requirement notes in the source data, and the rotor is identified as SPORT COAT Z in the fitment notes where applicable.

Common Issues This Rotor Can Address

  • Brake pulsation caused by worn or heat-affected rotor surfaces.
  • Reduced braking consistency in wet driving conditions.
  • Visible rotor corrosion on exposed brake components.
  • Rotor wear that has reached minimum thickness limits.
  • Noise or uneven contact from damaged braking surfaces.

Installation Notes

Verify PR-number and VIN-specific fitment before installation, especially on Audi A6, Audi A6 Quattro, Audi A8 Quattro, and Volkswagen Phaeton applications. Confirm the rotor dimensions, bolt pattern, and hub bore match the vehicle specification before service. This rotor is listed for front brake use only in the provided fitment data.

Quality Assurance

Zimmermann manufactures brake rotors with motorsport-informed development and coated anti-corrosion protection. The source data notes general ABE certification or ECE documentation supplied with the rotor, depending on application.

Related reading

This part fits 71 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelBody TypeDrive TypeLitersCylindersFuel TypePositionNotes
2011AudiA6—FWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2011AudiA6 QuattroSedanAWD4.2LV8GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2010AudiA6SedanFWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2010AudiA6 QuattroSedanAWD4.2LV8GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2010AudiA6 Quattro—AWD4.2LV8GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2010AudiA6 QuattroWagonAWD3.0LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2010AudiA6 Quattro—AWD3.0LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2010AudiA8 Quattro—AWD6.0LW12GASFrontfor PR number = 1LL,1LM; ; Product note: SPORT COAT Z
2009AudiA6—FWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2009AudiA6 QuattroSedanAWD4.2LV8GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2009AudiA6 Quattro—AWD4.2LV8GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2009AudiA6 Quattro—AWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2009AudiA6 QuattroWagonAWD3.0LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2009AudiA6 Quattro—AWD3.0LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2009AudiA8 QuattroSedanAWD6.0LW12GASFrontfor PR number = 1LL,1LM;
2009AudiA8 Quattro—AWD6.0LW12GASFrontfor PR number = 1LL,1LM; ; Product note: SPORT COAT Z
2009AudiA8 Quattro—AWD4.2LV8GASFrontfor PR number = 1LL,1LM; ; Product note: SPORT COAT Z
2008AudiA6—FWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2008AudiA6SedanFWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2008AudiA6 QuattroSedanAWD4.2LV8GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2008AudiA6 Quattro—AWD4.2LV8GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2008AudiA6 QuattroWagonAWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2008AudiA6 QuattroSedanAWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2008AudiA6 Quattro—AWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2008AudiA6 QuattroSedanAWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2008AudiA8 QuattroSedanAWD6.0LW12GASFrontfor PR number = 1LL,1LM;
2008AudiA8 Quattro—AWD6.0LW12GASFrontfor PR number = 1LL,1LM; ; Product note: SPORT COAT Z
2008AudiA8 Quattro—AWD4.2LV8GASFrontfor PR number = 1LL,1LM; ; Product note: SPORT COAT Z
2007AudiA6—FWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2007AudiA6SedanFWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2007AudiA6 QuattroSedanAWD4.2LV8GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2007AudiA6 Quattro—AWD4.2LV8GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2007AudiA6 QuattroWagonAWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2007AudiA6 QuattroSedanAWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2007AudiA6 Quattro—AWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2007AudiA8 QuattroSedanAWD6.0LW12GASFrontfor PR number = 1LL,1LM;
2007AudiA8 Quattro—AWD6.0LW12GASFrontfor PR number = 1LL,1LM; ; Product note: SPORT COAT Z
2007AudiA8 Quattro—AWD4.2LV8GASFrontfor PR number = 1LL,1LM; ; Product note: SPORT COAT Z
2007AudiS8——5.2LV10—Front360X34MM 5/112
2006AudiA6—FWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2006AudiA6SedanFWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2006AudiA6 QuattroSedanAWD4.2LV8GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2006AudiA6 Quattro—AWD4.2LV8GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2006AudiA6 QuattroWagonAWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2006AudiA6 QuattroSedanAWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2006AudiA6 Quattro—AWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2006AudiA8 QuattroSedanAWD6.0LW12GASFrontfor PR number = 1LL,1LM;
2006AudiA8 Quattro—AWD6.0LW12GASFrontfor PR number = 1LL,1LM; ; Product note: SPORT COAT Z
2006AudiA8 Quattro—AWD4.2LV8GASFrontfor PR number = 1LL,1LM; ; Product note: SPORT COAT Z
2006VolkswagenPhaeton—AWD6.0LW12GASFrontfor PR number = 1ZL,1ZK; ; Product note: SPORT COAT Z
2006VolkswagenPhaeton—AWD4.2LV8GASFrontfor PR number = 1ZL,1ZK; ; Product note: SPORT COAT Z
2005AudiA6 Quattro—AWD4.2LV8GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2005AudiA6 QuattroSedanAWD4.2LV8GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2005AudiA6 QuattroSedanAWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2005AudiA6 Quattro—AWD3.2LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2005AudiA6 Quattro—AWD3.0LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2005AudiA8 QuattroSedanAWD6.0LW12GASFrontfor PR number = 1LL,1LM;
2005AudiA8 Quattro—AWD6.0LW12GASFrontfor PR number = 1LL,1LM; ; Product note: SPORT COAT Z
2005AudiA8 Quattro—AWD4.2LV8GASFrontfor PR number = 1LL,1LM; ; Product note: SPORT COAT Z
2005VolkswagenPhaeton—AWD6.0LW12GASFrontfor PR number = 1ZL,1ZK; ; Product note: SPORT COAT Z
2005VolkswagenPhaeton—AWD4.2LV8GASFrontfor PR number = 1ZL,1ZK; ; Product note: SPORT COAT Z
2004AudiA6 QuattroSedanAWD3.0LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2004AudiA6 Quattro—AWD3.0LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2004AudiA8 Quattro—AWD4.2LV8GASFrontfor PR number = 1LL,1LM; ; Product note: SPORT COAT Z
2004VolkswagenPhaeton—AWD6.0LW12GASFrontfor PR number = 1ZL,1ZK; ; Product note: SPORT COAT Z
2004VolkswagenPhaeton—AWD4.2LV8GASFrontfor PR number = 1ZL,1ZK; ; Product note: SPORT COAT Z
2003AudiA6 QuattroSedanAWD3.0LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2003AudiA6 Quattro—AWD3.0LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
2003AudiA8 Quattro——4.2LV8—Front360X34MM 5/112; From VIN 4E-3-000 001
2002AudiA6 QuattroSedanAWD3.0LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles;
2002AudiA6 Quattro—AWD3.0LV6GASFrontfor PR number = 1LL; Special Purpose Vehicle = for armoured vehicles; ; Product note: SPORT COAT Z
Directly replaces or cross-references 37 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
AP Exhaust — 54222Brembo — 09.9915.11Dayco — 17530Gates — 32520Standard Ignition — V2350 986 479 3023D0 615 301 F4E0 615 301 P8DD 355 109-84123-1102C24.0134-0100.130 93 2520100.3305.00113 256115 521 11238120 2918925081 V61154.10562517BC562517JC204712560426859212220018152047125A1032VAC2675DB1.G234-0100.1BBD4594BDC5688BG9957BS-8174BS7117HBDDF1572DF4268MDC2069NBD1260V10-80102
