Zimmermann 100.3386.75 Disc Brake Rotor - Front

OE Quality 60-Day Returns

Zimmermann 100.3386.75 Disc Brake Rotor - Front

Brand	Zimmermann 100.3386.75
Position	Front
Weight [kg]	10.5
Fits	Audi · 19 vehicles

OE reference match. Cataloged to OE number 4M0 615 301 Q for the same application.

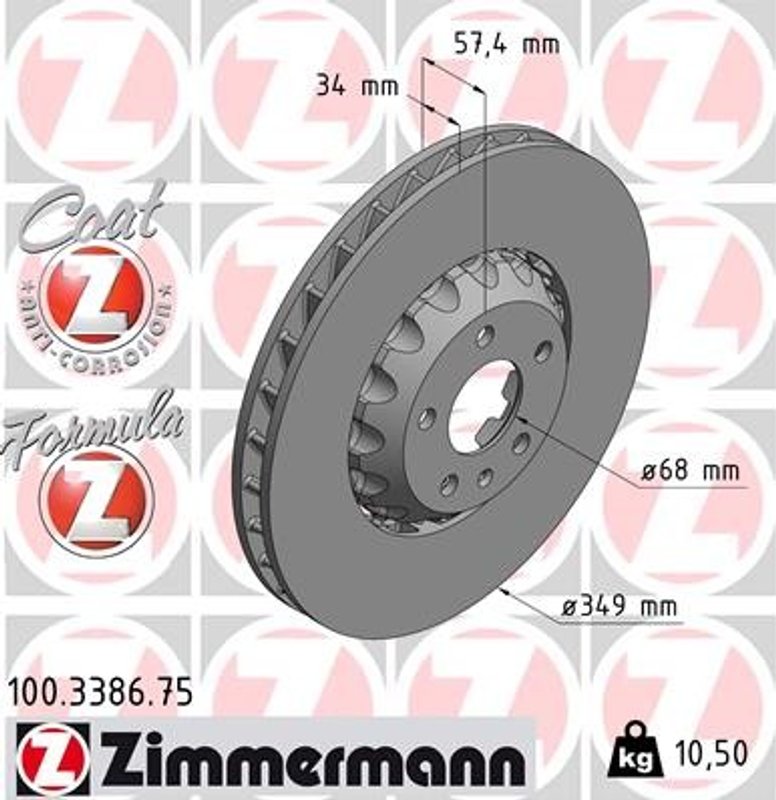

Front brake rotor. Built for select 350 x 34 mm brake packages with a 5x112 fitment pattern.

Cross-references 4M0 615 301 Q for the same application. See all 1.

$442.99Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Disc Brake Rotors are typically replaced in pairs, axle by axle.

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Disc Brake Rotor options

Overview

Zimmermann disc brake rotor part number 100.3386.75 is a front rotor application for select Audi models with 350 x 34 mm front disc brake setups and a 5x112 bolt pattern. It is listed for 2019-2021 Audi A6 Quattro, A6 allroad, A7 Sportback, A8 Quattro, S6, S7 Sportback, and S8 front brake applications.

Key Features

Disc brake rotor for front axle brake service.
Fits 350 x 34 mm front brake configurations with 5x112 wheel bolt pattern requirements.
Application coverage includes Audi A6 Quattro, A6 allroad, A7 Sportback, A8 Quattro, S6, S7 Sportback, and S8.
Zimmermann part number 100.3386.75 for direct catalog matching.
Cross-references OE number 4M0 615 301 Q for the same application.

Detailed Description

Zimmermann 100.3386.75 is a front disc brake rotor built for specific Audi brake packages that use a 350 x 34 mm rotor size and 5x112 fitment. The catalog data shows coverage across 2019-2021 Audi A6 Quattro, A6 allroad, A7 Sportback, A8 Quattro, S6, S7 Sportback, and S8 front applications, including variants with disc brakes in front and integrated backing plate notes where listed. If you are replacing a worn rotor on an Audi A7 Sportback or Audi A8 Quattro, this part number helps match the original brake specification. Use part number 100.3386.75 when verifying the correct front rotor for your vehicle.

Common Uses

Correcting brake pulsation caused by rotor wear or thickness variation.
Replacing a scored or heat-affected front brake rotor.
Restoring proper braking surface contact during brake service.
Matching the original 350 x 34 mm front brake specification on listed Audi models.

Installation Notes

Confirm rotor diameter, thickness, and bolt pattern against the vehicle’s brake code before ordering. Fitment notes vary by model and trim, including disc brake package codes and integrated backing plate references on some applications. Professional brake service is recommended, and the mating components should be inspected during installation.

Quality Assurance

Zimmermann is an established brake component manufacturer, and this rotor is cataloged to OE reference 4M0 615 301 Q for the same application. Verify fitment by part number 100.3386.75 and the vehicle’s brake configuration before installation.

This part fits 19 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Liters	Cylinders	Position	Notes
2021	Audi	A7 Sportback	3.0L	V6	Front	350X34Mm 5/112; Disc Brakes In Front [1Zy]; Disc Brakes In Front [1Za]
2021	Audi	A8 Quattro	4.0L	V8	Front	350X34Mm 5/112; Disc Brakes In Front [1Ll]; Disc Brakes In Front, With Integrated Backing Plate [1Ls]; Disc Brakes In Front [1Lj]
2021	Audi	A8 Quattro	3.0L	V6	Front	350X34Mm 5/112; Disc Brakes In Front [1Ll]; Disc Brakes In Front, With Integrated Backing Plate [1Ls]; Disc Brakes In Front [1Lj]
2021	Audi	S7 Sportback	2.9L	V6	Front	—
2021	Audi	S8	4.0L	V8	Front	350X34Mm 5/112; Disc Brakes In Front [1Ll]; Disc Brakes In Front, With Integrated Backing Plate [1Ls]; Disc Brakes In Front [1Lj]
2020	Audi	A6 allroad	3.0L	V6	Front	—
2020	Audi	A6 Quattro	3.0L	V6	Front	350X34MM; 5/112; To 04/11/2019
2020	Audi	A6 Quattro	2.0L	L4	Front	350X34MM; 5/112; To 04/11/2019
2020	Audi	A7 Sportback	3.0L	V6	Front	350x34mm Disc Brake Rotor fits vehicles with a 5 bolt pattern on a 112mm diameter circle.
2020	Audi	A8 Quattro	4.0L	V8	Front	350X34MM; 5/112; Disc Brakes [1Lj][1Ll]
2020	Audi	A8 Quattro	3.0L	V6	Front	350X34MM; 5/112; Disc Brakes [1Lj][1Ll]
2020	Audi	S6	2.9L	V6	Front	—
2020	Audi	S7 Sportback	2.9L	V6	Front	—
2020	Audi	S8	4.0L	V8	Front	—
2019	Audi	A6 Quattro	3.0L	V6	Front	350X34MM 5/112; Disc brakes in front [1ZA], Basic equipment variant [FM0]
2019	Audi	A6 Quattro	2.0L	L4	Front	350X34MM 5/112; Disc brakes in front [1ZA], Basic equipment variant [FM0]
2019	Audi	A7 Sportback	3.0L	V6	Front	350X34MM 5/112; Disc brakes in front [1ZA]
2019	Audi	A8 Quattro	4.0L	V8	Front	350X34MM 5/112; Disc brakes, front [1LJ], Disc brakes, front [1LL]
2019	Audi	A8 Quattro	3.0L	V6	Front	350X34MM 5/112; Disc brakes, front [1LJ], Disc brakes, front [1LL]
No rows match your filter.

Directly replaces or cross-references 1 part number

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

4M0 615 301 Q
