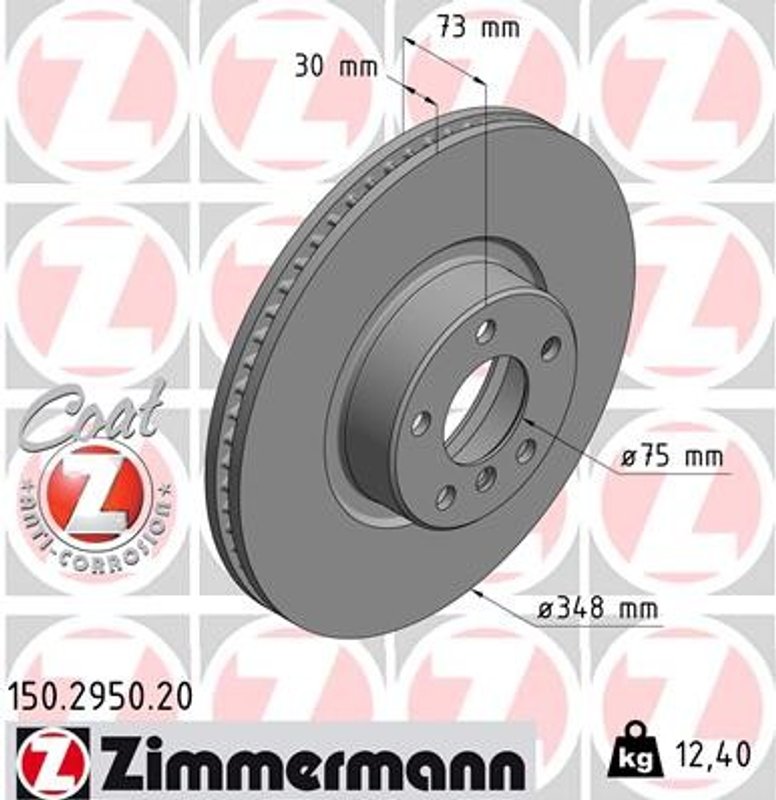

Zimmermann 150.2950.20 Disc Brake Rotor - Front Right

Overview of Zimmermann Disc Brake Rotor 150.2950.20

The Zimmermann disc brake rotor 150.2950.20 is designed specifically for BMW X4 models, providing reliable braking performance with precision engineering. This internally vented rotor ensures efficient heat dissipation and consistent braking under various driving conditions.

• Compatible with BMW X4 models
• Internally vented brake disc type for improved cooling
• High-carbon machining for enhanced durability
• Coated surface to resist corrosion
• Outer diameter of 348 mm and thickness of 30 mm
• Bolt hole circle diameter of 120 mm with 6/5 hole arrangement
• Hub bore diameter of 75 mm
• ECE R90 approved inspection tag for quality compliance
• Minimum thickness of 28.4 mm to ensure safety standards
• Weight of 12.4 kg for balanced performance

Technical Details and Specifications

The Zimmermann 150.2950.20 disc brake rotor features an outer diameter of 348 mm and a thickness of 30 mm, designed to meet the exact specifications required for BMW X4 vehicles. The rotor is internally vented, which allows for better heat dissipation during braking, reducing the risk of brake fade. The high-carbon machining process enhances the rotor's wear resistance and longevity. The bolt hole circle diameter measures 120 mm with a 6/5 hole arrangement, ensuring precise fitment. Additionally, the rotor has a hub bore diameter of 75 mm and a height of 73 mm, matching OEM standards. The coated surface provides protection against corrosion, extending the rotor's service life. This rotor is ECE R90 approved, confirming it meets strict safety and performance regulations.

Applications and Problem Solving

• Replacement for worn or warped brake rotors on BMW X4 models
• Improves braking consistency and reduces brake fade
• Addresses issues related to overheating during heavy braking
• Prevents corrosion-related rotor damage
• Ensures compliance with safety standards through ECE R90 approval

Installation Notes and Tips

When installing the Zimmermann disc brake rotor 150.2950.20 on BMW X4 vehicles, ensure the rotor surface is clean and free of any contaminants before mounting. Verify the bolt hole circle and hub bore dimensions match the vehicle specifications. It is recommended to replace brake pads simultaneously to maintain optimal braking performance. Proper torque settings should be applied to the mounting bolts to avoid rotor warping. After installation, perform a brake bed-in procedure to ensure even pad contact and rotor surface wear.

Quality Assurance and Warranty

Zimmermann disc brake rotors are manufactured to meet stringent quality standards, including ECE R90 approval, which certifies their safety and performance for road use. The high-carbon machining and coated surface contribute to the rotor's durability and resistance to wear and corrosion. While specific warranty details are not provided, Zimmermann products are known for their consistent quality and reliability in automotive braking systems.
