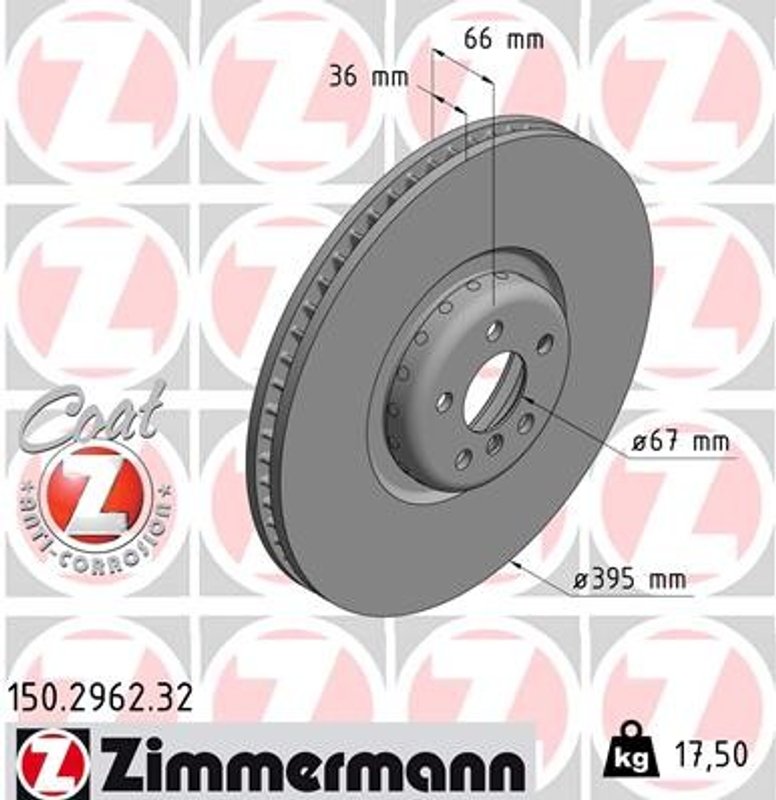

Zimmermann 150.2962.32 Disc Brake Rotor - Front Left
| Brand | Zimmermann 150.2962.32 |
|---|---|
| Position | Front Left |
| Bolt Hole Circle Ø 1 [mm] | 112 |
| Brake Disc Type | Internally vented |
| Centering Diameter [mm] | 67 |
| Height [mm] | 66 |
| Hole Arrangement / Number | 6/5 |
| Inspection Tag | Ece r90 approved |
| Machining | High-carbon |
| Minimum thickness [mm] | 34,4 |
| Outer Diameter | 395 |
| Paired article numbers | 150.2963.32 |
| Quality | Aluminium hub riveted |
| Surface | Coated |
| Thickness [mm] | 36 |
| Weight [kg] | 17,5 |
| Fits | BMW · 30 vehicles |
OE-style replacement. Zimmermann rotor built to match listed BMW brake applications.
Coated surface. Helps resist corrosion on exposed rotor areas.
ECE R90 approved. Meets recognized replacement brake standards.
Cross-references Brembo 09.D897.13, Gates 18828 and Zimmermann 150.2962.20 for the same application. See all 11.
Disc Brake Rotor for BMW Applications
This Zimmermann disc brake rotor is built for BMW vehicles that require a front left rotor with precise dimensions and OE-style fitment. Part number 150.2962.32 features an internally vented, coated, high-carbon design for consistent braking performance and corrosion resistance.
Key Features
- Internally vented brake disc construction for improved heat management.
- High-carbon machining for stable braking characteristics.
- Coated surface helps resist corrosion on exposed areas.
- Aluminium hub riveted design for accurate mounting support.
- ECE R90 approved for regulated replacement standards.
- Fits BMW models including 750i xDrive, X5, X6, and X7 applications.
Detailed Description
Zimmermann part number 150.2962.32 is a front left disc brake rotor engineered for select BMW platforms from 2017-2021. It uses an internally vented rotor design with a 395 mm outer diameter, 36 mm thickness, and 34.4 mm minimum thickness, along with a 112 mm bolt circle and 67 mm centering diameter. The coated finish and aluminium hub riveted construction support accurate installation and long-term serviceability. This rotor is a direct fit for BMW 750i xDrive, 840i, M850i xDrive, X5, X6, X7, Alpina B7, and M760i xDrive applications where the listed specifications match.
Common Replacement Reasons
- Brake pulsation from rotor wear or thickness variation.
- Reduced braking consistency under repeated stops.
- Corrosion on the rotor surface or hub area.
- Rotor scoring, cracking, or heat-related damage.
- Need for a correct BMW front left brake rotor replacement.
Installation Notes
Verify rotor diameter, thickness, bolt pattern, centering diameter, and position before installation. This part fits BMW front left applications only as listed in the fitment data, including 2017-2021 BMW Alpina B7, 2017-2021 BMW M760i xDrive, 2017-2021 BMW M760Li xDrive, 2019-2021 BMW X5, 2019-2021 BMW X7, 2020-2021 BMW 750i xDrive, 2020-2021 BMW 840i, 2020-2021 BMW 840i xDrive, 2020-2021 BMW M850i xDrive, 2020-2021 BMW M850i xDrive Gran Coupe, 2020-2021 BMW X6, 2020 BMW 750Li xDrive, 2020 BMW 840i Gran Coupe, and 2020 BMW 840i xDrive Gran Coupe. Part number 150.2962.32 should be matched to the paired rotor reference 150.2963.32 when servicing the axle as specified by the vehicle application.
Quality Assurance
This rotor is ECE R90 approved, indicating compliance with recognized replacement brake standards. Zimmermann part number 150.2962.32 is also cross-referenced to Brembo 09.D897.13 and Gates 18828 for the same application.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2021 | BMW | 750i xDrive | — | — | 4.4L | V8 | Front Left | — |
| 2021 | BMW | 840i | — | — | 3.0L | L6 | Front Left | — |
| 2021 | BMW | 840i xDrive | — | — | 3.0L | L6 | Front Left | — |
| 2021 | BMW | M850i xDrive | — | — | 4.4L | V8 | Front Left | — |
| 2021 | BMW | M850i xDrive Gran Coupe | — | — | 4.4L | V8 | Front Left | — |
| 2021 | BMW | X5 | M50i | — | 4.4L | V8 | Front Left | — |
| 2021 | BMW | X6 | — | — | 4.4L | V8 | Front Left | — |
| 2021 | BMW | X7 | — | — | 4.4L | V8 | Front Left | — |
| 2020 | BMW | 750i xDrive | — | Sedan | 4.4L | V8 | Front Left | — |
| 2020 | BMW | 750Li xDrive | — | — | 4.4L | V8 | Front Left | — |
| 2020 | BMW | 840i | — | Coupe | 3.0L | L6 | Front Left | — |
| 2020 | BMW | 840i Gran Coupe | — | Sedan | 3.0L | L6 | Front Left | — |
| 2020 | BMW | 840i xDrive | — | Coupe | 3.0L | L6 | Front Left | — |
| 2020 | BMW | 840i xDrive Gran Coupe | — | Sedan | 3.0L | L6 | Front Left | — |
| 2020 | BMW | M850i xDrive | — | Coupe | 4.4L | V8 | Front Left | — |
| 2020 | BMW | M850i xDrive Gran Coupe | — | Sedan | 4.4L | V8 | Front Left | — |
| 2020 | BMW | X5 | xDrive50i | Sport Utility | 4.4L | V8 | Front Left | — |
| 2020 | BMW | X6 | M50i | — | 4.4L | V8 | Front Left | — |
| 2020 | BMW | X7 | xDrive50i | Sport Utility | 4.4L | V8 | Front Left | — |
| 2019 | BMW | Alpina B7 | — | Sedan | 4.4L | V8 | Front Left | — |
| 2019 | BMW | M760i xDrive | — | Sedan | 6.6L | V12 | Front Left | — |
| 2019 | BMW | M760Li xDrive | — | Sedan | 6.6L | V12 | Front Left | — |
| 2019 | BMW | X5 | — | Sport Utility | 4.4L | V8 | Front Left | — |
| 2019 | BMW | X7 | xDrive50i | Sport Utility | 4.4L | V8 | Front Left | — |
| 2018 | BMW | Alpina B7 | — | — | 4.4L | V8 | Front Left | — |
| 2018 | BMW | M760i xDrive | — | — | 6.6L | V12 | Front Left | — |
| 2018 | BMW | M760Li xDrive | — | Sedan | 6.6L | V12 | Front Left | — |
| 2017 | BMW | Alpina B7 | — | — | 4.4L | V8 | Front Left | — |
| 2017 | BMW | M760i xDrive | — | — | 6.6L | V12 | Front Left | — |
| 2017 | BMW | M760Li xDrive | — | — | 6.6L | V12 | Front Left | — |
