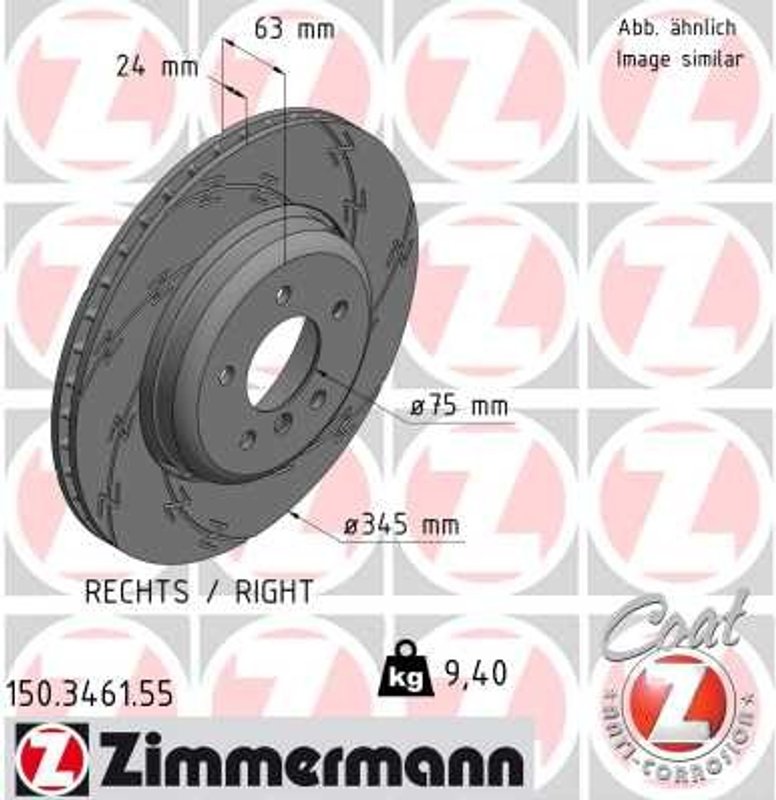

Zimmermann 150.3461.55 Disc Brake Rotor - Rear or Rear Right
| Brand | Zimmermann 150.3461.55 |
|---|---|
| Position | Rear and Rear Right |
| ABE No. | Ohne abe |
| Bolt Hole Circle Ø 1 [mm] | 120 |
| Brake Disc Type | Slotted |
| Height [mm] | 63 |
| Hole Arrangement / Number | 6/5 |
| Hub Bore Ø [mm] | 75 |
| Machining | High-carbon |
| Minimum thickness [mm] | 22,4 |
| Outer Diameter | 345 |
| Paired article numbers | 150.3461.54 |
| Surface | Coated |
| Thickness [mm] | 24 |
| Weight [kg] | 9,4 |
| Fits | BMW · 19 vehicles |
Slotted design. Grooved braking surface helps clear dust and water from the rotor face.
High-carbon machining. Supports stable braking performance through repeated heat cycles.
Coated finish. Adds corrosion resistance and a cleaner appearance.
Cross-references Bosch 18001, 0 986 479 729 and 8DD 355 119-341 for the same application. See all 20.
Overview
The Zimmermann 150.3461.55 is a slotted rear disc brake rotor built for BMW applications that require a 345 mm brake disc with a 24 mm thickness. Its coated surface and high-carbon machining support consistent braking performance while helping resist corrosion in everyday use.
Fits 2004-2010 BMW 525i, 535i, 545i, 550i, 645Ci, and 650i rear applications, plus 2006-2007 BMW 525i rear right applications with payload and special-purpose vehicle notes. This part cross-references Bosch 18001 for the same application.
Key Features
- Slotted brake disc design helps clear brake dust and water from the braking surface.
- High-carbon construction supports stable braking under repeated heat cycles.
- Coated surface adds corrosion resistance and a cleaner appearance.
- 345 mm outer diameter with 24 mm thickness for specified BMW rear fitments.
- Zimmermann Black Z rotor line combines street use experience with motorsport-informed development.
Product Details
The Zimmermann Black Z rotor line is positioned around a grooved braking surface, coated anti-corrosion finish, and broad vehicle coverage. On BMW rear brake applications, the 150.3461.55 uses a 120 mm bolt circle, 75 mm hub bore, and 6/5 hole arrangement, with a 63 mm height. The rotor is marked as ECE R90 homologated and is not subject to registration where that approval applies. The paired article number is 150.3461.54, and the part number 150.3461.55 is useful when matching the correct rotor specification for BMW 5 Series and 6 Series rear brake service.
Common Issues This Rotor Addresses
- Brake pulsation from worn or below-spec rear rotors.
- Reduced wet braking performance caused by water and debris buildup.
- Corrosion on exposed rotor surfaces.
- Noise or uneven braking from damaged braking surfaces.
- Incorrect rotor sizing during BMW rear brake replacement.
Installation Notes
Verify rotor diameter, thickness, hub bore, and bolt pattern before installation. Confirm rear fitment against the vehicle application and note the special-purpose vehicle and payload details listed for 2006-2007 BMW 525i rear right applications. The part number 150.3461.55 should be matched to the correct axle position and brake specification before service begins.
Quality Assurance
Zimmermann developed the Black Z rotor range using experience from standard brake rotors and track-oriented expertise. The rotor is ECE R90 homologated where applicable, and the coated finish is engineered to resist corrosion while maintaining a clean appearance.
| Year | Make | Model | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2010 | BMW | 535i | — | — | 3.0L | L6 | — | Rear | 345X24MM |
| 2010 | BMW | 550i | — | — | 4.8L | V8 | — | Rear | 345X24MM |
| 2010 | BMW | 650i | — | — | 4.8L | V8 | — | Rear | — |
| 2009 | BMW | 535i | — | — | 3.0L | L6 | — | Rear | — |
| 2009 | BMW | 550i | — | — | 4.8L | V8 | — | Rear | — |
| 2009 | BMW | 650i | — | — | 4.8L | V8 | — | Rear | — |
| 2008 | BMW | 535i | — | — | 3.0L | L6 | — | Rear | — |
| 2008 | BMW | 550i | — | — | 4.8L | V8 | — | Rear | — |
| 2008 | BMW | 650i | — | — | 4.8L | V8 | — | Rear | — |
| 2007 | BMW | 525i | Sedan | RWD | 3.0L | L6 | GAS | Rear Right | Payload = for increased payload; Special Purpose Vehicle = for government vehicles; |
| 2007 | BMW | 550i | — | — | 4.8L | V8 | — | Rear | — |
| 2007 | BMW | 650i | — | — | 4.8L | V8 | — | Rear | — |
| 2006 | BMW | 525i | Sedan | RWD | 3.0L | L6 | GAS | Rear Right | Payload = for increased payload; Special Purpose Vehicle = for government vehicles; |
| 2006 | BMW | 550i | — | — | 4.8L | V8 | — | Rear | — |
| 2006 | BMW | 650i | — | — | 4.8L | V8 | — | Rear | — |
| 2005 | BMW | 545i | — | — | 4.4L | V8 | — | Rear | — |
| 2005 | BMW | 645Ci | — | — | 4.4L | V8 | — | Rear | — |
| 2004 | BMW | 545i | — | — | 4.4L | V8 | — | Rear | — |
| 2004 | BMW | 645Ci | — | — | 4.4L | V8 | — | Rear | — |
