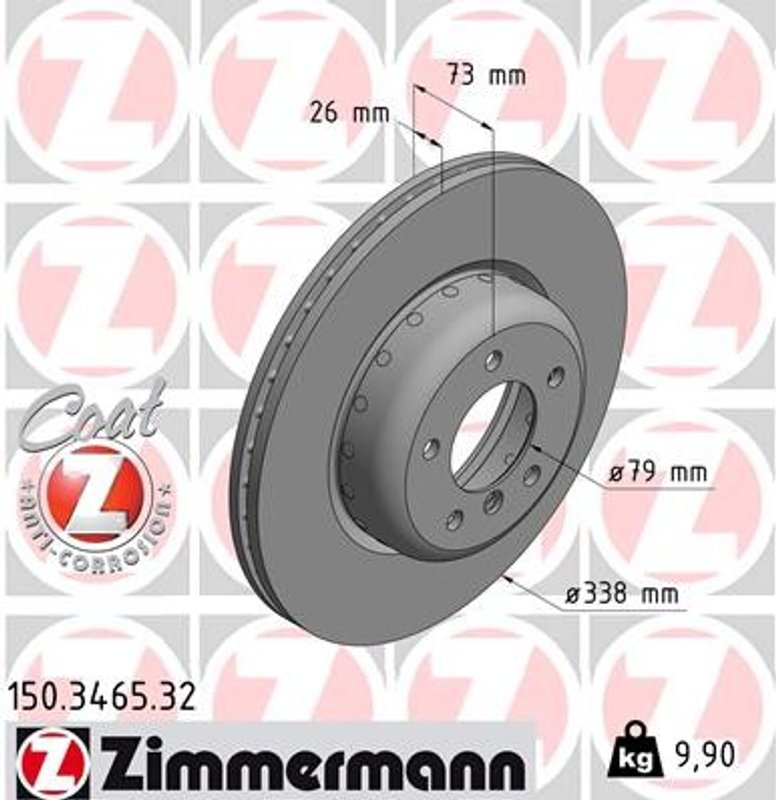

Zimmermann 150.3465.32 Disc Brake Rotor - Front
| Brand | Zimmermann 150.3465.32 |
|---|---|
| Position | Front |
| Bolt Hole Circle Ø 1 [mm] | 120 |
| Brake Disc Type | Two-piece brake disc |
| Height [mm] | 73 |
| Hole Arrangement / Number | 6/5 |
| Hub Bore Ø [mm] | 79 |
| Inspection Tag | Ece r90 approved |
| Machining | High-carbon |
| Minimum thickness [mm] | 24,4 |
| Outer Diameter | 338 |
| Quality | Alu hub riveted |
| Surface | Coated |
| Thickness [mm] | 26 |
| Weight [kg] | 9,4 |
| Fits | BMW · 22 vehicles |
Two-piece design. Aluminum hub and cast friction ring help manage heat during braking.
Coated surface. Corrosion-resistant finish supports cleaner appearance and durability.
ECE R90 approved. Built to meet the approval standard listed for the Formula F range.
Cross-references Brembo 09.C403.13, Four Seasons 17928 and 0 986 479 773 for the same application. See all 27.
Product Overview
The Zimmermann Formula F disc brake rotor is a two-piece, high-carbon rotor built with an aluminum hub and cast friction ring. It is engineered for BMW applications that use a 338 mm front rotor, with coated surfaces for corrosion resistance and a cleaner appearance.
Part number 150.3465.32 is ECE R90 approved and cross-references Brembo 09.C403.13 for the same application.
Key Features
- Two-piece brake disc construction with an aluminum hub and cast friction ring
- High-carbon machining for improved thermal conductivity and braking consistency
- Coated surface for corrosion protection and visual durability
- ECE R90 approved for the full range
- 338 mm outer diameter with 26 mm thickness and 24.4 mm minimum thickness
Detailed Description
Zimmermann Formula F rotors are built around a compound design that separates the hub from the friction ring, helping manage heat more effectively during repeated braking. The high-carbon casting supports better thermal transfer, while the coated finish helps resist corrosion on exposed surfaces. This rotor is identified by part number 150.3465.32 and is intended for BMW front brake applications listed in the fitment data, including 2008-2013 BMW 135i front and 2013 BMW 135is front. It also fits 2012 BMW 120i front with Performance Brake equipment.
Common Issues Addressed
- Brake pulsation from worn or uneven rotor surfaces
- Reduced braking consistency during repeated stops
- Corrosion on exposed rotor surfaces
- Rotor wear that has reached minimum thickness
- Heat buildup in demanding driving conditions
Installation Notes
Verify rotor diameter, hub bore, bolt pattern, and brake system configuration before installation. This rotor fits 2008-2013 BMW 135i, front; 2013 BMW 135is, front; and 2012 BMW 120i, front with Performance Brake equipment. Confirm that the vehicle is not equipped with Performance brakes where the fitment notes exclude them. Part number 150.3465.32 should be matched to the vehicle’s brake specification before service.
Quality Assurance
Zimmermann lists ECE R90 approval across the Formula F range. The rotor uses a coated finish and high-carbon construction to support consistent braking performance and corrosion resistance.
| Year | Make | Model | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2013 | BMW | 135i | Coupe | RWD | 3.0L | L6 | GAS | Front | Braking System = for vehicles without Performance brakes; |
| 2013 | BMW | 135i | Convertible | RWD | 3.0L | L6 | GAS | Front | Braking System = for vehicles without Performance brakes; |
| 2013 | BMW | 135i | — | — | 3.0L | L6 | — | Front | Lightweight disc brake rotor for increased performance. |
| 2013 | BMW | 135is | Coupe | RWD | 3.0L | L6 | GAS | Front | Braking System = for vehicles without Performance brakes; |
| 2013 | BMW | 135is | Convertible | RWD | 3.0L | L6 | GAS | Front | Braking System = for vehicles without Performance brakes; |
| 2013 | BMW | 135is | — | — | 3.0L | L6 | — | Front | Lightweight disc brake rotor for increased performance. |
| 2012 | BMW | 120i | — | RWD | 2.0L | L4 | GAS | Front | Equipment Variant = Performance Brake; ; Product note: FORMULA F COAT Z; Product note: Diameter 338 mm |
| 2012 | BMW | 135i | Coupe | RWD | 3.0L | L6 | GAS | Front | Braking System = for vehicles without Performance brakes; |
| 2012 | BMW | 135i | Convertible | RWD | 3.0L | L6 | GAS | Front | Braking System = for vehicles without Performance brakes; |
| 2012 | BMW | 135i | — | — | 3.0L | L6 | — | Front | Lightweight disc brake rotor for increased performance. |
| 2011 | BMW | 135i | Coupe | RWD | 3.0L | L6 | GAS | Front | Braking System = for vehicles without Performance brakes; |
| 2011 | BMW | 135i | Convertible | RWD | 3.0L | L6 | GAS | Front | Braking System = for vehicles without Performance brakes; |
| 2011 | BMW | 135i | — | — | 3.0L | L6 | — | Front | Lightweight disc brake rotor for increased performance. |
| 2010 | BMW | 135i | Coupe | RWD | 3.0L | L6 | GAS | Front | Braking System = for vehicles without Performance brakes; |
| 2010 | BMW | 135i | Convertible | RWD | 3.0L | L6 | GAS | Front | Braking System = for vehicles without Performance brakes; |
| 2010 | BMW | 135i | — | — | 3.0L | L6 | — | Front | Lightweight disc brake rotor for increased performance. |
| 2009 | BMW | 135i | Coupe | RWD | 3.0L | L6 | GAS | Front | Braking System = for vehicles without Performance brakes; |
| 2009 | BMW | 135i | Convertible | RWD | 3.0L | L6 | GAS | Front | Braking System = for vehicles without Performance brakes; |
| 2009 | BMW | 135i | — | — | 3.0L | L6 | — | Front | Lightweight disc brake rotor for increased performance. |
| 2008 | BMW | 135i | Coupe | RWD | 3.0L | L6 | GAS | Front | Braking System = for vehicles without Performance brakes; |
| 2008 | BMW | 135i | Convertible | RWD | 3.0L | L6 | GAS | Front | Braking System = for vehicles without Performance brakes; |
| 2008 | BMW | 135i | — | — | 3.0L | L6 | — | Front | Lightweight disc brake rotor for increased performance. |
