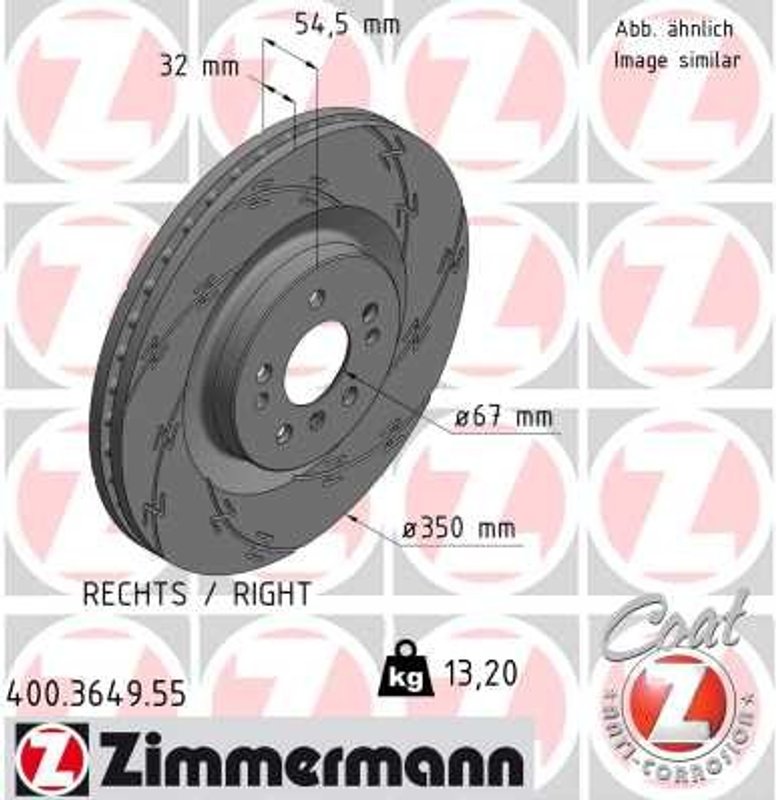

Zimmermann 400.3649.55 Disc Brake Rotor - Front or Front Right
OE Quality 60-Day Returns
Zimmermann

Zimmermann 400.3649.55 Disc Brake Rotor - Front or Front Right

Brand Zimmermann 400.3649.55
Position Front and Front Right
ABE No. Ohne abe
Bolt Hole Circle Ø 1 [mm] 112
Brake Disc Type Slotted
Height [mm] 54,5
Hole Arrangement / Number 8/5
Hub Bore Ø [mm] 67
Minimum thickness [mm] 29,4
Outer Diameter 350
Paired article numbers 400.3649.54
Surface Coated
Thickness [mm] 32
Weight [kg] 13,2
Fits Mercedes-Benz · 57 vehicles

Slotted design. Grooved braking surface helps clear dust and water from the contact area.

Coated finish. Zimmermann Coat Z+ surface treatment adds corrosion resistance and a cleaner look.

Black Z line. Performance-focused rotor range developed with motorsport experience.

Cross-references BBB Industries 17791, Brembo 09.R103.11 and Gates 24745 for the same application. See all 39.

$194.24Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $194.24
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Overview

The Zimmermann 400.3649.55 is a slotted disc brake rotor for select Mercedes-Benz applications. It combines a coated surface with a grooved braking face to support cleaner operation and improved wet-weather braking performance.

Built for front axle fitments on GL, ML, and R-Class models, this rotor is part of the Black Z line and uses Zimmermann’s Coat Z+ anti-corrosion finish for added surface protection and a more refined appearance.

Key Features

  • Slotted brake disc design for consistent pad contact and surface cleaning.
  • Coated finish helps resist corrosion on exposed rotor surfaces.
  • Grooved braking surface promotes dust and water expulsion.
  • 350 mm outer diameter with 32 mm thickness and 29.4 mm minimum thickness.
  • 8/5 hole arrangement, 112 mm bolt circle, and 67 mm hub bore.
  • Zimmermann Black Z rotor construction for performance-focused street use.

Detailed Description

Zimmermann part number 400.3649.55 is engineered as a front disc brake rotor for Mercedes-Benz GL550, GL450, GL350, GL320, ML350, ML450, ML550, ML320, ML500, R500, and R550 applications listed below. The slotted braking surface is paired with a coated finish to help manage heat, moisture, and corrosion exposure while maintaining a clean contact area for the brake pads. The Black Z product line is positioned around a sport-oriented rotor design with a durable surface treatment and broad vehicle coverage. This part cross-references Brembo 09.R103.11 and BBB Industries 17791 for the same application.

What It Helps Address

  • Brake fade caused by heat buildup during repeated stops.
  • Reduced braking consistency in wet conditions.
  • Rotor surface corrosion from moisture and road exposure.
  • Uneven pad cleaning on a worn or smooth rotor face.
  • Noise or vibration related to rotor wear and surface condition.

Installation Notes

Fits 2008-2013 Mercedes-Benz GL550, front right; 2010-2012 Mercedes-Benz GL350, front; 2007-2012 Mercedes-Benz GL450, front right; 2007-2012 Mercedes-Benz GL450, front; 2008-2012 Mercedes-Benz GL550, front; 2006-2011 Mercedes-Benz ML350, front; 2010-2011 Mercedes-Benz ML450, front; 2008-2011 Mercedes-Benz ML550, front right; 2008-2011 Mercedes-Benz ML550, front; 2007-2009 Mercedes-Benz GL320, front; 2009 Mercedes-Benz ML320, front; 2007-2008 Mercedes-Benz ML320, front; 2006-2008 Mercedes-Benz R500, front right; 2008 Mercedes-Benz R550, front; 2008 Mercedes-Benz R550, front right; 2007 Mercedes-Benz ML500, front right.

Verify rotor dimensions, hub bore, bolt pattern, and brake package details before installation. Match the application notes for sport brake system and heavy-duty brake exclusions where listed.

Quality Assurance

Zimmermann developed the Black Z rotor line using experience from standard rotor production and motorsport-informed engineering. The rotor is ECE R90 homologated where applicable and is supplied with a coated anti-corrosion surface treatment.

Related reading

This part fits 57 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelBody TypeDrive TypeLitersCylindersFuel TypePositionNotes
2013Mercedes-BenzGL550Sport UtilityAWD4.7LV8GASFront RightCountry-spec. model = Japan, Australia, USA;
2012Mercedes-BenzGL350——3.0LV6—FrontW/O Heavy Duty Brake
2012Mercedes-BenzGL450Sport UtilityAWD4.7LV8GASFront RightCountry-spec. model = Japan, Australia, USA;
2012Mercedes-BenzGL450——4.7LV8—Front—
2012Mercedes-BenzGL550Sport UtilityAWD5.5LV8GASFront RightCountry-spec. model = Japan, Australia, USA;
2012Mercedes-BenzGL550——5.5LV8—Front—
2011Mercedes-BenzGL350——3.0LV6—FrontW/O Heavy Duty Brake
2011Mercedes-BenzGL450Sport UtilityAWD4.7LV8GASFront RightCountry-spec. model = Japan, Australia, USA;
2011Mercedes-BenzGL450——4.7LV8—Front—
2011Mercedes-BenzGL550Sport UtilityAWD5.5LV8GASFront RightCountry-spec. model = Japan, Australia, USA;
2011Mercedes-BenzGL550——5.5LV8—Front—
2011Mercedes-BenzML350——3.5LV6—FrontW/ Sport brake system
2011Mercedes-BenzML350——3.0LV6—FrontW/ Sport brake system
2011Mercedes-BenzML450——3.5LV6—FrontW/ Sport brake system
2011Mercedes-BenzML550Sport UtilityAWD5.5LV8GASFront RightCountry-spec. model = Japan, USA, Australia;
2011Mercedes-BenzML550——5.5LV8—Front—
2010Mercedes-BenzGL350——3.0LV6—FrontW/O Heavy Duty Brake
2010Mercedes-BenzGL450Sport UtilityAWD4.7LV8GASFront RightCountry-spec. model = Japan, Australia, USA;
2010Mercedes-BenzGL450——4.7LV8—Front—
2010Mercedes-BenzGL550Sport UtilityAWD5.5LV8GASFront RightCountry-spec. model = Japan, Australia, USA;
2010Mercedes-BenzGL550——5.5LV8—Front—
2010Mercedes-BenzML350——3.5LV6—FrontW/ Sport brake system
2010Mercedes-BenzML350——3.0LV6—FrontW/ Sport brake system
2010Mercedes-BenzML450——3.5LV6—FrontW/ Sport brake system
2010Mercedes-BenzML550Sport UtilityAWD5.5LV8GASFront RightCountry-spec. model = Japan, USA, Australia;
2010Mercedes-BenzML550——5.5LV8—Front—
2009Mercedes-BenzGL320——3.0LV6—FrontW/O Heavy Duty Brake
2009Mercedes-BenzGL450Sport UtilityAWD4.7LV8GASFront RightCountry-spec. model = Japan, Australia, USA;
2009Mercedes-BenzGL450——4.7LV8—Front—
2009Mercedes-BenzGL550Sport UtilityAWD5.5LV8GASFront RightCountry-spec. model = Japan, Australia, USA;
2009Mercedes-BenzGL550——5.5LV8—Front—
2009Mercedes-BenzML320——3.0LV6—FrontW/ Sport brake system; To CH # A550332; To 02/09/2009
2009Mercedes-BenzML350——3.5LV6—FrontW/ Sport brake system
2009Mercedes-BenzML550Sport UtilityAWD5.5LV8GASFront RightCountry-spec. model = Japan, USA, Australia;
2009Mercedes-BenzML550——5.5LV8—Front—
2008Mercedes-BenzGL320——3.0LV6—FrontW/O Heavy Duty Brake
2008Mercedes-BenzGL450Sport UtilityAWD4.7LV8GASFront RightCountry-spec. model = Japan, Australia, USA;
2008Mercedes-BenzGL450——4.7LV8—Front—
2008Mercedes-BenzGL550Sport UtilityAWD5.5LV8GASFront RightCountry-spec. model = Japan, Australia, USA;
2008Mercedes-BenzGL550——5.5LV8—Front—
2008Mercedes-BenzML320——3.0LV6—FrontW/ Sport brake system
2008Mercedes-BenzML350——3.5LV6—FrontW/ Sport brake system
2008Mercedes-BenzML550Sport UtilityAWD5.5LV8GASFront RightCountry-spec. model = Japan, USA, Australia;
2008Mercedes-BenzML550——5.5LV8—Front—
2008Mercedes-BenzR500—AWD5.0LV8GASFront RightProduct note: BLACK Z
2008Mercedes-BenzR550——5.5LV8—Front—
2008Mercedes-BenzR550WagonAWD5.5LV8GASFront RightCountry-spec. model = USA, Japan, Australia;
2007Mercedes-BenzGL320——3.0LV6—FrontW/O Heavy Duty Brake
2007Mercedes-BenzGL450Sport UtilityAWD4.7LV8GASFront RightCountry-spec. model = Japan, Australia, USA;
2007Mercedes-BenzGL450——4.7LV8—Front—
2007Mercedes-BenzML320——3.0LV6—FrontW/ Sport brake system
2007Mercedes-BenzML350——3.5LV6—FrontW/ Sport brake system
2007Mercedes-BenzML500—AWD5.0LV8GASFront RightConstruction year to = 200909; ; Product note: BLACK Z
2007Mercedes-BenzML500—AWD——GASFront RightConstruction year to = 200909; ; Product note: BLACK Z
2007Mercedes-BenzR500—AWD5.0LV8GASFront RightProduct note: BLACK Z
2006Mercedes-BenzML350——3.5LV6—FrontW/ Sport brake system
2006Mercedes-BenzR500—AWD5.0LV8GASFront RightProduct note: BLACK Z
Directly replaces or cross-references 39 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
BBB Industries — 17791Brembo — 09.R103.11Gates — 247450 986 479 32902.35.2238DD 355 121-18110 92 474523-0963C24.0132-0157.1083 521 2096/PD164 421 0512400.3649.00408 2448120 231002C25065 V61030.10203393562346JC-16060135611063592150700136310360918152033935815203393360406064100BBD5790SBD-3506BD1042BDC5625BG9013BS-8080BS7294DDF1532C-1DF6013SM2038VMDC2067NBD1702V30-80014V930
