Zimmermann 400.5513.70 Disc Brake Rotor - Front
OE Quality 60-Day Returns
Zimmermann

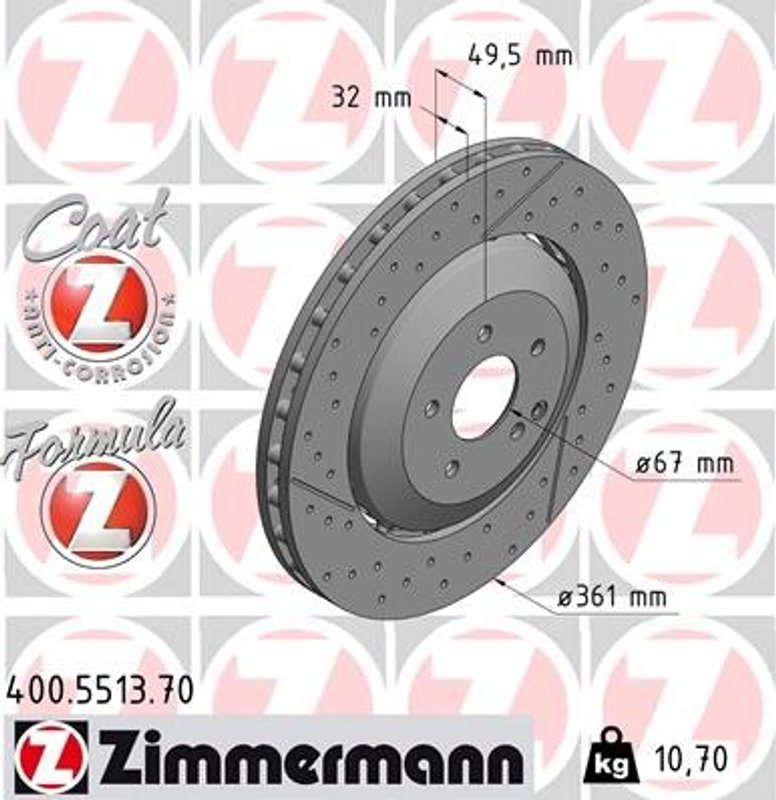

Zimmermann 400.5513.70 Disc Brake Rotor - Front

Brand Zimmermann 400.5513.70
Position Front
Bolt Hole Circle Ø 1 [mm] 112
Brake Disc Type Two-piece brake disc
Height [mm] 49,5
Hole Arrangement / Number 6/5
Hub Bore Ø [mm] 67
Inspection Tag Ece r90 approved
Minimum thickness [mm] 30,0
Outer Diameter 361
Quality Alu hub floating
Surface Coated
Thickness [mm] 32
Weight [kg] 10,7
Fits Mercedes-Benz · 19 vehicles

Two-piece design. Helps manage heat under demanding braking conditions.

Coated surface. Adds corrosion resistance and a cleaner finished appearance.

ECE R90 approved. Supplied for regulated replacement use.

Cross-references Brembo 09.9547.33, 209 421 0112 and 18358 OE for the same application. See all 4.

$975.25Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $975.25
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Brake Rotor Overview

The Zimmermann Formula Z brake rotor is built for high-load braking with a two-piece construction and floating mounting. It is a fitment-based replacement for performance-oriented Mercedes-Benz applications, including Mercedes-Benz SLK55 AMG and Mercedes-Benz CLK63 AMG front axle use. Part number 400.5513.70 is supplied with a coated surface for added corrosion resistance.

Key Features

  • Two-piece brake disc construction for controlled heat management.
  • Floating mounting allows radial expansion under heavy load.
  • Coated surface helps resist corrosion and improves appearance.
  • ECE R90 approved for regulated replacement use.
  • Alu hub floating design with 361 mm outer diameter.
  • Part number 400.5513.70 for direct identification.

Fitment Details

Compatible with Mercedes-Benz performance brake applications in the front position. Fits 2005-2011 Mercedes-Benz SLK55 AMG, front, with Special Model AMG Black Series, Special Model Silver Arrow Edition, or AMG Performance Package; fits 2005-2011 Mercedes-Benz SLK55 AMG, front, chassis number to F 194373; fits 2007-2009 Mercedes-Benz CLK63 AMG, front; fits 2008 Mercedes-Benz CLK63 AMG, front, without Special Model AMG Black Series. Use part number 400.5513.70 to confirm the correct rotor for your application.

Common Uses

  • Replacing a worn or heat-stressed front brake rotor.
  • Addressing brake vibration or uneven braking feel.
  • Restoring braking performance after rotor wear reaches service limits.
  • Supporting higher thermal loads in tuned or performance setups.
  • Correcting corrosion on the rotor surface.

Installation Notes

Verify rotor diameter, hub bore, bolt pattern, and minimum thickness before installation. This rotor uses a 112 mm bolt circle, 67 mm hub bore, and 32 mm thickness with a 30.0 mm minimum thickness specification. Confirm the vehicle notes and chassis breakpoints carefully, especially on Mercedes-Benz SLK55 AMG applications. Professional installation and brake inspection are recommended after replacement.

Quality Assurance

Zimmermann Formula Z rotors are engineered for demanding braking conditions and supplied with ECE R90 approval. The coated finish adds corrosion protection, and the floating two-piece design is intended to manage thermal expansion under load. Part number 400.5513.70 is a performance-focused replacement for Mercedes-Benz brake service.

Related reading

This part fits 19 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelBody TypeDrive TypeLitersCylindersFuel TypePositionNotes
2011Mercedes-BenzSLK55 AMG——5.5LV8—FrontW/ Special Model AMG Black Series; W/ Special Model Silver Arrow Edition; W/ AMG Performance Package
2011Mercedes-BenzSLK55 AMGConvertibleRWD5.5LV8GASFrontChassis number to = F 194373;
2010Mercedes-BenzSLK55 AMGConvertibleRWD5.5LV8GASFrontChassis number to = F 194373;
2010Mercedes-BenzSLK55 AMG——5.5LV8—FrontW/ Special Model AMG Black Series; W/ Special Model Silver Arrow Edition; W/ AMG Performance Package
2009Mercedes-BenzCLK63 AMG——6.3LV8—Front—
2009Mercedes-BenzSLK55 AMGConvertibleRWD5.5LV8GASFrontChassis number to = F 194373;
2009Mercedes-BenzSLK55 AMG——5.5LV8—FrontW/ Special Model AMG Black Series; W/ Special Model Silver Arrow Edition; W/ AMG Performance Package
2008Mercedes-BenzCLK63 AMG——6.3LV8—Front—
2008Mercedes-BenzCLK63 AMG——6.3LV8—FrontW/O Special Model AMG Black Series
2008Mercedes-BenzSLK55 AMGConvertibleRWD5.5LV8GASFrontChassis number to = F 194373;
2008Mercedes-BenzSLK55 AMG——5.5LV8—FrontW/ Special Model AMG Black Series; W/ Special Model Silver Arrow Edition; W/ AMG Performance Package
2007Mercedes-BenzCLK63 AMGConvertibleRWD6.3LV8GASFront—
2007Mercedes-BenzCLK63 AMG——6.3LV8—Front—
2007Mercedes-BenzSLK55 AMGConvertibleRWD5.5LV8GASFrontChassis number to = F 194373;
2007Mercedes-BenzSLK55 AMG——5.5LV8—FrontW/ Special Model AMG Black Series; W/ Special Model Silver Arrow Edition; W/ AMG Performance Package
2006Mercedes-BenzSLK55 AMGConvertibleRWD5.5LV8GASFrontChassis number to = F 194373;
2006Mercedes-BenzSLK55 AMG——5.5LV8—FrontW/ Special Model AMG Black Series; W/ Special Model Silver Arrow Edition; W/ AMG Performance Package
2005Mercedes-BenzSLK55 AMGConvertibleRWD5.5LV8GASFrontChassis number to = F 194373;
2005Mercedes-BenzSLK55 AMG——5.5LV8—FrontW/ Special Model AMG Black Series; W/ Special Model Silver Arrow Edition; W/ AMG Performance Package
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Brembo — 09.9547.33209 421 011218358 OE25528 Z
