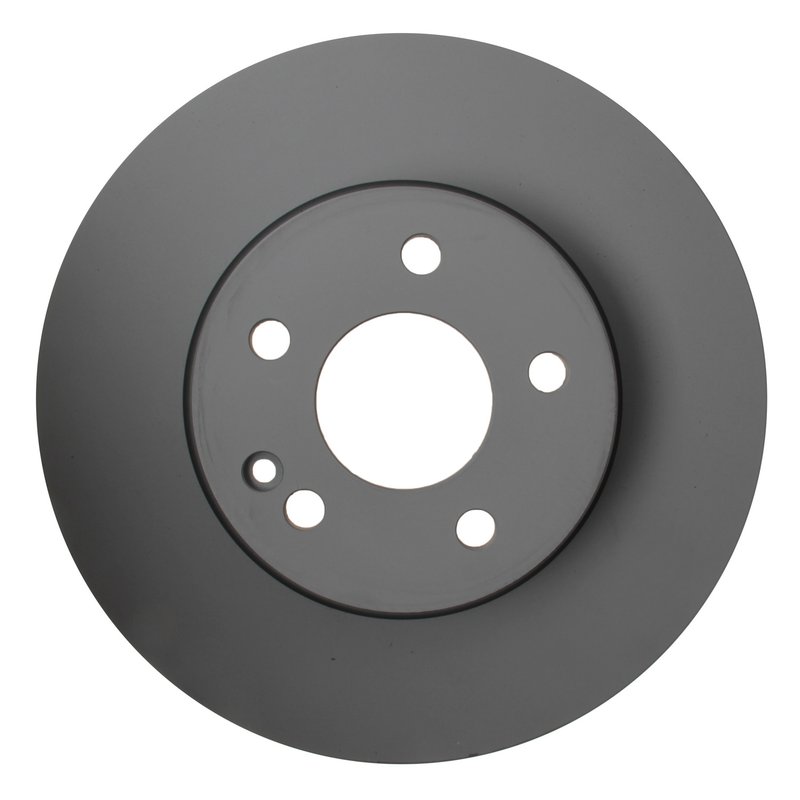

Zimmermann 400.6472.20 Disc Brake Rotor - Front
| Brand | Zimmermann 400.6472.20 |
|---|---|
| Position | Front |
| Bolt Hole Circle Ø 1 [mm] | 112 |
| Brake Disc Type | Internally Vented |
| Height [mm] | 58,5 |
| Hole Arrangement / Number | 6/5 |
| Hub Bore Ø [mm] | 67 |
| Minimum thickness [mm] | 25 |
| Outer Diameter | 300 |
| Surface | Coated |
| Thickness [mm] | 28 |
| Weight [kg] | 8,5 |
| Fits | Mercedes-Benz · 19 vehicles |
OE-equivalent quality. Standard brake rotor built to match original-part specifications.
Coated surface. Helps resist corrosion while keeping a cleaner appearance.
Internally vented design. Promotes efficient airflow for more consistent braking performance.
Cross-references Davico Mfg 17569, Dorman - HELP 54234 and Gates 24076 for the same application. See all 49.
Zimmermann Front Brake Rotor for Mercedes-Benz
The Zimmermann 400.6472.20 is a coated front disc brake rotor built to OE-style dimensions for select Mercedes-Benz applications. It is an internally vented rotor with a 300 mm outer diameter, 28 mm thickness, and 25 mm minimum thickness for service replacement on Mercedes-Benz Metris, V220d, Viano, and Vito front brake systems.
Key Features
- Part number: 400.6472.20
- Front disc brake rotor for Mercedes-Benz applications
- Internally vented brake disc design
- Coated surface for improved corrosion resistance and cleaner appearance
- Outer diameter: 300 mm
- Thickness: 28 mm; minimum thickness: 25 mm
- Bolt hole circle: 112 mm
- Hub bore: 67 mm
- Hole arrangement: 6/5
- Height: 58.5 mm
- Weight: 8.5 kg
Detailed Description
Zimmermann manufactures this rotor to match the dimensions and material quality specified for original-equipment brake applications. The coated surface helps resist corrosion on the non-friction areas, which is especially useful for drivers maintaining Mercedes-Benz Metris, Mercedes-Benz V220d, Mercedes-Benz Viano, or Mercedes-Benz Vito front braking performance. The Zimmermann 400.6472.20 is a direct-fit replacement for vehicles that require a 300 mm internally vented front rotor with a 112 mm bolt circle and 67 mm hub bore.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Vehicle Fitment
- Fits 2016-2020 Mercedes-Benz Metris, front
- Fits 2016-2017 Mercedes-Benz V220d, front
- Fits 2013-2015 Mercedes-Benz Viano, front
- Fits 2009-2013 Mercedes-Benz Vito, front
Common Issues This Rotor Can Address
- Front brake pulsation from worn or warped rotors
- Reduced braking consistency caused by rotor wear below service limits
- Corrosion on exposed rotor surfaces
- Noise or vibration associated with uneven rotor condition
- Brake service needs on Mercedes-Benz Metris, V220d, Viano, or Vito front axles
Installation Notes and Tips
Verify rotor thickness, hub bore, bolt pattern, and minimum thickness before installation. Clean the hub mounting surface thoroughly to help prevent runout-related brake noise or pedal vibration. Always inspect pads, calipers, and hardware condition during brake service, and confirm the rotor is installed on the front axle position specified for your vehicle.
Quality Assurance
Zimmermann standard brake rotors are manufactured as equivalent-quality replacement parts built to OE-style specifications for the listed applications. The coated finish adds corrosion protection to the rotor surface areas and supports a cleaner appearance after installation.
| Year | Make | Model | Body Type | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2020 | Mercedes-Benz | Metris | — | — | 2.0L | L4 | — | Front | — |
| 2019 | Mercedes-Benz | Metris | — | — | 2.0L | L4 | — | Front | — |
| 2018 | Mercedes-Benz | Metris | — | — | 2.0L | L4 | — | Front | — |
| 2017 | Mercedes-Benz | Metris | — | — | 2.0L | L4 | — | Front | — |
| 2017 | Mercedes-Benz | V220d | Mini Passenger Van | RWD | 2.1L | L4 | DIESEL | Front | — |
| 2016 | Mercedes-Benz | Metris | — | — | 2.0L | L4 | — | Front | — |
| 2016 | Mercedes-Benz | V220d | Mini Passenger Van | RWD | 2.1L | L4 | DIESEL | Front | — |
| 2015 | Mercedes-Benz | Viano | Mini Passenger Van | RWD | 2.1L | L4 | DIESEL | Front | — |
| 2014 | Mercedes-Benz | Viano | Mini Passenger Van | RWD | 2.1L | L4 | DIESEL | Front | — |
| 2013 | Mercedes-Benz | Viano | Mini Passenger Van | RWD | 2.1L | L4 | DIESEL | Front | — |
| 2013 | Mercedes-Benz | Vito | Standard Passenger Van | RWD | 2.1L | L4 | DIESEL | Front | — |
| 2012 | Mercedes-Benz | Vito | Standard Passenger Van | RWD | 2.1L | L4 | DIESEL | Front | — |
| 2012 | Mercedes-Benz | Vito | Standard Cargo Van | RWD | 2.1L | L4 | DIESEL | Front | — |
| 2011 | Mercedes-Benz | Vito | Standard Passenger Van | RWD | 2.1L | L4 | DIESEL | Front | — |
| 2011 | Mercedes-Benz | Vito | Standard Cargo Van | RWD | 2.1L | L4 | DIESEL | Front | — |
| 2010 | Mercedes-Benz | Vito | Standard Passenger Van | RWD | 2.1L | L4 | DIESEL | Front | — |
| 2010 | Mercedes-Benz | Vito | Standard Cargo Van | RWD | 2.1L | L4 | DIESEL | Front | — |
| 2009 | Mercedes-Benz | Vito | Standard Passenger Van | RWD | 2.1L | L4 | DIESEL | Front | — |
| 2009 | Mercedes-Benz | Vito | Standard Cargo Van | RWD | 2.1L | L4 | DIESEL | Front | — |
